Alto Spot LED

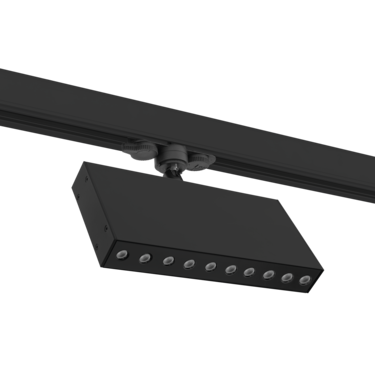

Modern floodlight designed especially for LEDs. It can rotate up to 350° with respect to the vertical axis and pivot up to 180° upwards.

3-Phasen Stromschienen und Strahler

Alto Spot LED

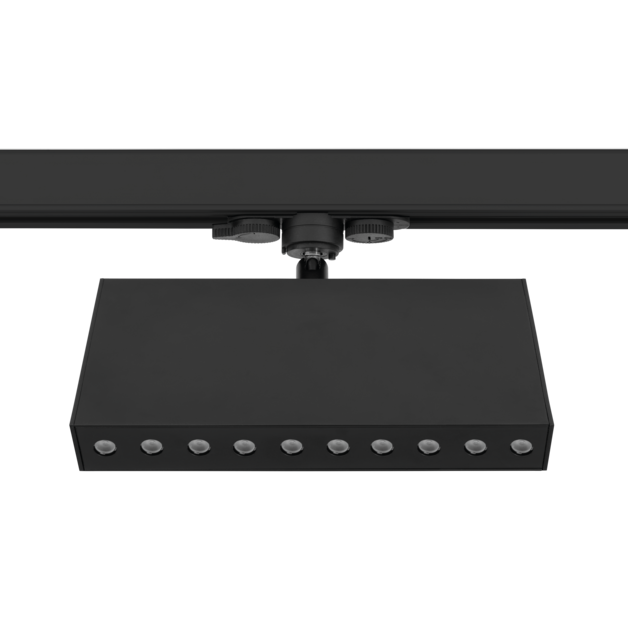

Modern floodlight designed especially for LEDs. It can rotate up to 350° with respect to the vertical axis and pivot up to 180° upwards.

Go to the variant list (25)

LED

Lichtaustritt DI

IP20

Basic information:

Ausführung:

Electrostatically painted aluminum profile (standard color: black).

Montageart:

for electrical track

Power:

220 ... 240 V

Categorization:

Leuchtentyp:

3-Phasen Stromschienen und Strahler

Anwendung:

Konferenzräume

Montagetyp:

Stromschienenleuchten

Technical data:

Luminaire power:

16 - 31 W

Leuchtenlichtstrom:

1520 - 2700 lm

Länge:

204 mm

See other technical data

Technical data

Mechanische Produktdaten

Montagearten	do szynoprzewodu
Gehäuse-Material	Aluminium
für den Anschluss 3-Phasen Stromschienen	Ja

Optische Produktdaten

Raster/ Blendschutz	LNS
UGR	17, 18, 19

Elektrische Produktdaten

Leuchtmittel	LED
Leuchtenanschlussleistung	16 - 31 W
LED modules	1x
Lampenanzahl	1
Lieferbares Zubehör	Netzteil
Nennspannung	220 ... 240 V
Through wiring	Nein
mit Leuchtmittel bestückt	Ja
Power factor	0.96
Type of driver	DALI, ON/OFF
Emergency module	option
Bewegungssensor	option

Information data

Net weight	0.7 kg
Farbe	grau, schwarz, weiß
Betriebstemperaturumfang	-25 ... 40
drehbar	Ja
Power and luminous flux tolerance	+/-10%

Lichttechnische Daten

Leuchtenlichtstrom	1520 - 2700 lm
Lichtausbeute der Leuchte	83 - 100 lm/W
Lichtausbeute der Leuchte	80
Lichtfarbe	weiss
Farbwiedergabeindex	80
direkt/indirekt, unabhängig einstellbar	Nein
Lichtverteilung	Lichtaustritt DI
Schutzklasse der Leuchte	I
Abstrahlwinkel / Ausstrahlungswinkel	30 °
Light output degradation	B10
Lumen maintenance	L90
Lifetime	60000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	96 %
Farbtemperatur	3000K, 4000K
Farbtemperatur / CRI	830, 840

Zertifikate

Schutzart IP	IP20
Schlagfestigkeit	IK04
Schutzklasse	I
Lampenschutz	Ja
CE	Ja
EX	Nein
ENEC	Nein
HACCP+	Ja
EAC	Ja

Product variants

✕

Suche

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Farbe

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI /Farbtemperatur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Netzteil

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Bewegungssensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Leuchtenlichtstrom	Lichtausbeute der Leuchte	Abstrahlwinkel / Ausstrahlungswinkel	Raster/ Blendschutz [Układ optyczny]	Farbtemperatur / CRI	Farbe	Type of driver	Familientyp
DE001.1177.830.A000 Copy the code Open in new window	16 W	1520 lm	95 lm/W	30°	LNS	830	weiß	ON/OFF	16W
DE001.1177.830.D000 Copy the code Open in new window	16 W	1520 lm	95 lm/W	30°	LNS	830	weiß	DALI	16W
DE001.1177.840.A000 Copy the code Open in new window	16 W	1600 lm	100 lm/W	30°	LNS	840	weiß	ON/OFF	16W
DE001.1177.840.D000 Copy the code Open in new window	16 W	1600 lm	100 lm/W	30°	LNS	840	weiß	DALI	16W
DE001.2277.830.A000 Copy the code Open in new window	16 W	1520 lm	95 lm/W	30°	LNS	830	grau	ON/OFF	16W
DE001.2277.830.D000 Copy the code Open in new window	16 W	1520 lm	95 lm/W	30°	LNS	830	grau	DALI	16W
DE001.2277.840.A000 Copy the code Open in new window	16 W	1600 lm	100 lm/W	30°	LNS	840	grau	ON/OFF	16W
DE001.2277.840.D000 Copy the code Open in new window	16 W	1600 lm	100 lm/W	30°	LNS	840	grau	DALI	16W
DE001.3377.830.A000 Copy the code Open in new window	16 W	1520 lm	95 lm/W	30°	LNS	830	schwarz	ON/OFF	16W
DE001.3377.830.D000 Copy the code Open in new window	16 W	1520 lm	95 lm/W	30°	LNS	830	schwarz	DALI	16W
DE001.3377.840.A000 Copy the code Open in new window	16 W	1600 lm	100 lm/W	30°	LNS	840	schwarz	ON/OFF	16W
DE001.3377.840.D000 Copy the code Open in new window	16 W	1600 lm	100 lm/W	30°	LNS	840	schwarz	DALI	16W
DE002.1177.830.A000 Copy the code Open in new window	24 W	2170 lm	90 lm/W	30°	LNS	830	weiß	ON/OFF	24W
DE002.1177.840.A000 Copy the code Open in new window	24 W	2280 lm	95 lm/W	30°	LNS	840	weiß	ON/OFF	24W
DE002.1177.840.D000 Copy the code Open in new window	24 W	2280 lm	95 lm/W	30°	LNS	840	weiß	DALI	24W

Displaying items: 15 of 25

of 2

per page

Family datasheet

Download

Family datasheet extended

Download

Montageanleitung

408.6 KB

Download

Konformitätserklärung

Download

Fotometrische Datei

3.54 KB
