Downlight
Bari New NT LED 82 9W 1120lm 830 RM White
Modern and universal downlight luminaire of high lighting performance, based on COB LED module. Application: offices, hotels, restaurants, halls, shopping malls.
LED
Lichtaustritt DI
IP20
I
Ja
Ja
Ja
Basic information:
Index:
HV002.1167.830.A000
EAN:
5904349228826
Montageart:
surface mounted
Power:
220 ... 240  V
Technical data
Bari New NT LED 82 9W 1120lm 830 RM White
PRODUKTCODE
HV002.1167.830.A000
Copy the code
PRODUKT-EAN
5904349228826
Copy the EAN code
Mechanische Produktdaten
Gehäuse-Material Aluminium
Optische Produktdaten
Raster/ Blendschutz RM
Spiegelraster metallisch
Elektrische Produktdaten
Leuchtmittel LED
Leuchtenanschlussleistung 9 W
Lieferbares Zubehör Netzteil
Nennspannung 220 ... 240 V
Through wiring Nein
Type of driver ON/OFF
Emergency module Nein
Bewegungssensor Nein
Information data
Net weight 0.4 kg
Farbe weiß
Power and luminous flux tolerance +/-10%
Lichttechnische Daten
Leuchtenlichtstrom 1120 lm
Lichtausbeute der Leuchte 124 lm/W
Farbwiedergabeindex 80
Lichtverteilung Lichtaustritt DI
Farbtemperatur 3000K
Farbtemperatur / CRI 830
Zertifikate
Schutzart IP IP20
Schutzklasse I
CE Ja
HACCP+ Ja
EAC Ja
Abmessungen
F
82 mm
F - Aussendurchmesser
Download
Product card
Download
Montageanleitung
643.36 KB
Download

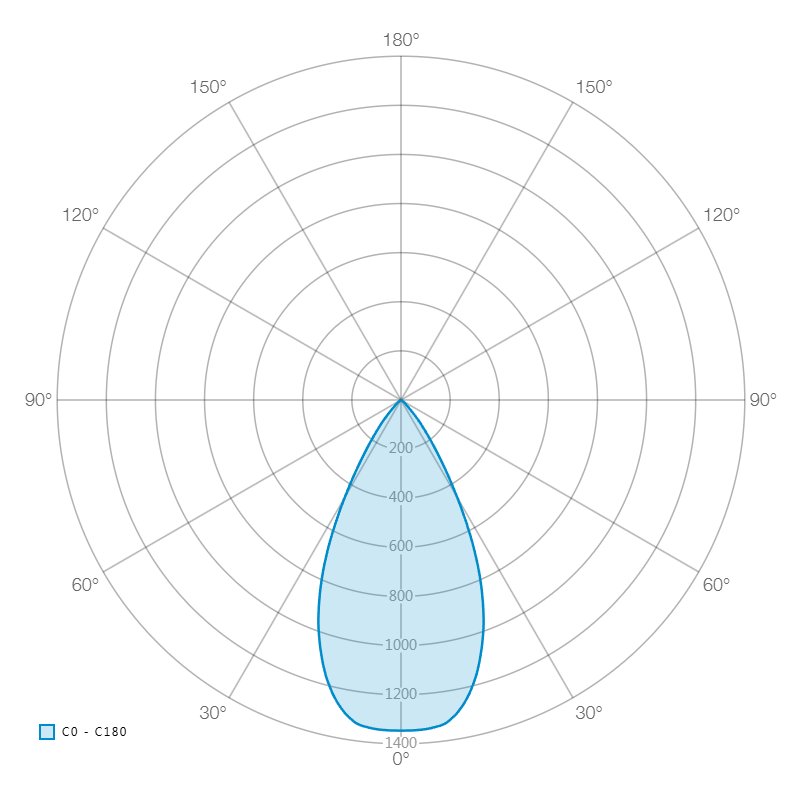

Photometric file
1.33 KB
Download
Pobierz wszystkie pliki
