Technical data Product variants Download
Deckenleuchten

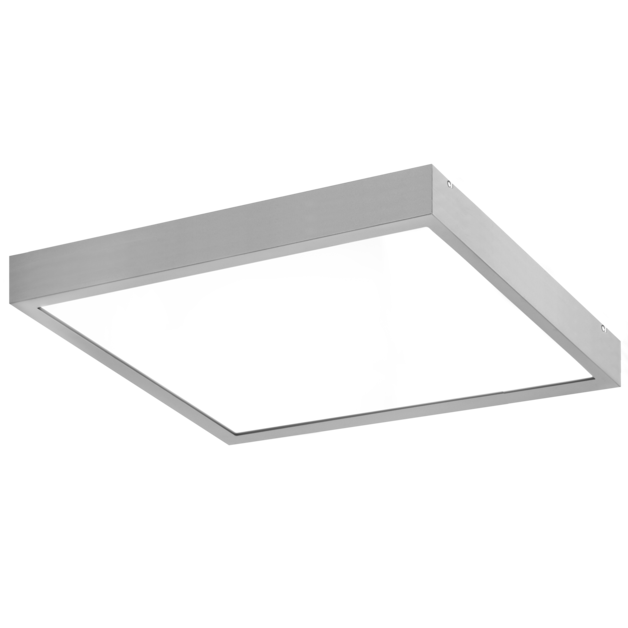

Finestra IP44 LED
Energy-saving decorative lighting luminaire of modern and elegant shape equipped with LED light source from renowned producers. Finestra by universal form and type of assembly is suitable for public spacer, conference rooms, offices, communications, halls, stairways. The first-class AC power supply of renowned brands achieves cos ϕ >0,95. This luminarie perfectly complements to the rest of the Finestra series of luminaires. Attention: possibility of mounting "Active+" - self-learning energy saving system. Active+ is an out-of-the-box standalone solution consisting of an LED driver and small sensor built into the luminaire. Luminaires fitted with Active+ solution are ideal for refurbishment projects, as well as for new offices, corridors, open plan areas, etc.
Deckenleuchten
Finestra IP44 LED
Energy-saving decorative lighting luminaire of modern and elegant shape equipped with LED light source from renowned producers. Finestra by universal form and type of assembly is suitable for public spacer, conference rooms, offices, communications, halls, stairways. The first-class AC power supply of renowned brands achieves cos ϕ >0,95. This luminarie perfectly complements to the rest of the Finestra series of luminaires. Attention: possibility of mounting "Active+" - self-learning energy saving system. Active+ is an out-of-the-box standalone solution consisting of an LED driver and small sensor built into the luminaire. Luminaires fitted with Active+ solution are ideal for refurbishment projects, as well as for new offices, corridors, open plan areas, etc.
Go to the variant list (1375)
LED
Lichtaustritt DI
IP44
I
Ja
Ja
Ja
Basic information:
Ausführung:
Gehäuse aus Stahlblech, pulverlackiert grau, Abdeckung - PRM aus PMMA, oder Microprismen MPRM, OPAL
Zubehör:
Simple and electric suspension
Montageart:
Deckenanbauleuchte, Pendelleuchte, Wandanbauleuchte
Power:
220 ... 240 V
Categorization:
Leuchtentyp:
Deckenleuchten
Anwendung:
soziale Räume, Flure-treppenhaeuser, Toiletten, Aufenthaltsraeume-und-wartebereiche, Umkleideraume, Sozial-/Personalräume, Technikräume, Wachräume
Montagetyp:
Wandleuchten, Anbauleuchten
Technical data:
Luminaire power:
10 - 71 W
Leuchtenlichtstrom:
850 - 8200 lm
Länge:
307 mm, 407 mm, 595 mm, 1195 mm
See other technical data
Technical data
Mechanische Produktdaten
Montagearten Universal
Gehäuse-Material Stahlblech
Optische Produktdaten
Raster/ Blendschutz MPRM, OPAL
Spiegelraster Fehlende, satin
UGR 17, 18, 19, 20
Elektrische Produktdaten
Leuchtmittel LED
Leuchtenanschlussleistung 10 - 71 W
Lampenanzahl 1
Lieferbares Zubehör Netzteil
Nennspannung 220 ... 240 V
Through wiring Nein
mit Leuchtmittel bestückt Ja
Type of driver DALI, HO, ON/OFF
Emergency module opcjonalnie
Bewegungssensor opcjonalnie
Information data
Net weight 2 - 7.7 kg
Farbe Anthracite, grau, schwarz, weiß
Betriebstemperaturumfang -15 ... 40
Power and luminous flux tolerance +/-10%
Lichttechnische Daten
Leuchtenlichtstrom 850 - 8200 lm
Lichtausbeute der Leuchte 75 - 126 lm/W
Lichtfarbe weiss
Farbwiedergabeindex 80, 90
Lichtverteilung breitstrahlend, Średniostrumieniowy
Lichtverteilung Lichtaustritt DI
Schutzklasse der Leuchte I
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Farbtemperatur 3000K, 4000K
Farbtemperatur / CRI 830, 840, 930, 940
Zertifikate
Schutzart IP IP44
Schlagfestigkeit IK04
Schutzklasse I
Lampenschutz Ja
PZH Ja
CE Ja
HACCP+ Ja
EAC Ja
Product variants
✕
Suche
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Farbe
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /REFLECTOR METALLIZED/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI /Farbtemperatur
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Netzteil
A ON/OFF /WITHOUT REGULATION/
D HO /DRIVER WITH PREDEFINED SETTING/
H DSI
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
X 1-10V /ADJUSTABLE/
S DMX
V sDIMM
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Bewegungssensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Abmessungen
Filtry
Filtrowanie po parametrach
Parametry
Luminaire power
Show products
Lichtstrom
Show products
CRI /Farbtemperatur
Select all
Reset
Show products
Optical system
Select all
Reset
Show products
Netzteil
Select all
Reset
Show products
Emergency module
Select all
Reset
Show products
Bewegungssensor
Select all
Reset
Show products
Farbe
Select all
Reset
Show products
Länge
Show products
Breite
Show products
Familientyp
Select all
Reset
Show products
Anuluj
Show products
Show products
Index
Luminaire power
Leuchtenlichtstrom
Lichtausbeute der Leuchte
Raster/ Blendschutz
[Układ optyczny]
Farbtemperatur / CRI
Farbe
Type of driver
Emergency module
Bewegungssensor
Familientyp
CV001.1122.830.A000
Copy the code
Open in new window
10 W 990 lm 99 lm/W MPRM 830
weiß
 ON/OFF Nein Nein 10W 307x307
CV001.1122.830.A001
Copy the code
Open in new window
10 W 990 lm 99 lm/W MPRM 830
weiß
 ON/OFF Nein MW 10W 307x307
CV001.1122.830.D000
Copy the code
Open in new window
10 W 990 lm 99 lm/W MPRM 830
weiß
 DALI Nein Nein 10W 307x307
CV001.1122.840.A000
Copy the code
Open in new window
10 W 1010 lm 101 lm/W MPRM 840
weiß
 ON/OFF Nein Nein 10W 307x307
CV001.1122.840.A001
Copy the code
Open in new window
10 W 1010 lm 101 lm/W MPRM 840
weiß
 ON/OFF Nein MW 10W 307x307
CV001.1122.840.D000
Copy the code
Open in new window
10 W 1010 lm 101 lm/W MPRM 840
weiß
 DALI Nein Nein 10W 307x307
CV001.1122.930.A000
Copy the code
Open in new window
10 W 850 lm 85 lm/W MPRM 930
weiß
 ON/OFF Nein Nein 10W 307x307
CV001.1122.930.A001
Copy the code
Open in new window
10 W 850 lm 85 lm/W MPRM 930
weiß
 ON/OFF Nein MW 10W 307x307
CV001.1122.930.D000
Copy the code
Open in new window
10 W 850 lm 85 lm/W MPRM 930
weiß
 DALI Nein Nein 10W 307x307
CV001.1122.940.A000
Copy the code
Open in new window
10 W 860 lm 86 lm/W MPRM 940
weiß
 ON/OFF Nein Nein 10W 307x307
CV001.1122.940.A001
Copy the code
Open in new window
10 W 860 lm 86 lm/W MPRM 940
weiß
 ON/OFF Nein MW 10W 307x307
CV001.1122.940.D000
Copy the code
Open in new window
10 W 860 lm 86 lm/W MPRM 940
weiß
 DALI Nein Nein 10W 307x307
CV001.2222.830.A000
Copy the code
Open in new window
10 W 990 lm 99 lm/W MPRM 830
grau
 ON/OFF Nein Nein 10W 307x307
CV001.2222.830.A001
Copy the code
Open in new window
10 W 990 lm 99 lm/W MPRM 830
grau
 ON/OFF Nein MW 10W 307x307
CV001.2222.830.D000
Copy the code
Open in new window
10 W 990 lm 99 lm/W MPRM 830
grau
 DALI Nein Nein 10W 307x307
Displaying items: 15 of 1375
