Geometric Arc LED

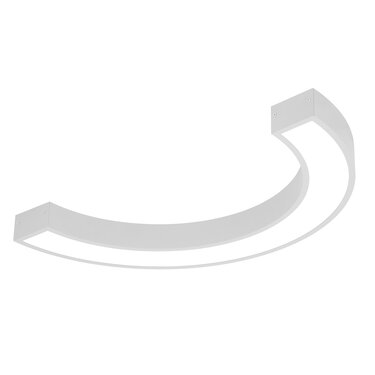

A family of LED luminaires in the shape of a half-round. Thanks to their modern and universal shape, GEOMETRIC ARC LED luminaires can be used in any type of space inside a building. Inline installation and connection with GEOMETRIC LINE LED is possible.

Dekorative Beleuchtung

Geometric Arc LED

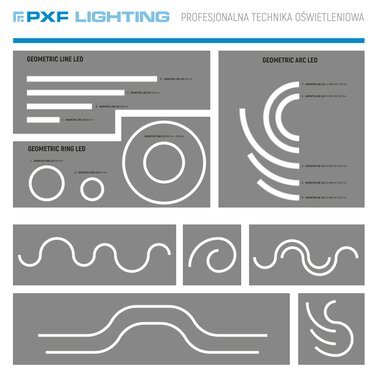

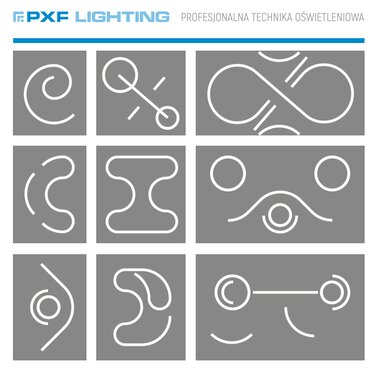

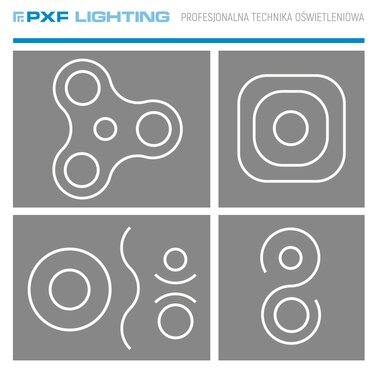

A family of LED luminaires in the shape of a half-round. Thanks to their modern and universal shape, GEOMETRIC ARC LED luminaires can be used in any type of space inside a building. Inline installation and connection with GEOMETRIC LINE LED is possible.

Go to the variant list (125)

LED

Lichtaustritt DI

IP40

Basic information:

Ausführung:

powder painted aluminum profile (grey colour in standard). OPAL diffuser.

Zubehör:

ALU Anschluß, Aufhängungen (normal, elektrisch) - standardlänge der Drahtaufhängung max. 1,5m, unsichtbarer Linearverbinder

Montageart:

suspended (to suspend the luminaire you will need: simple suspension – 2 pcs and electric suspension – 1 pc)

Power:

220 ... 240 V

Categorization:

Leuchtentyp:

Dekorative Beleuchtung

Anwendung:

Büroräume, Konferenzräume, Aufenthaltsraeume-und-wartebereiche, Vertriebs-/Servicebereiche, Flure-treppenhaeuser

Montagetyp:

Hängeleuchten

Technical data:

Luminaire power:

30 - 70 W

Leuchtenlichtstrom:

2480 - 7270 lm

Outer diameter:

800 mm, 1200 mm, 2000 mm, 3000 mm

See other technical data

Technical data

Mechanische Produktdaten

Montagearten	Seilpendelmontage
Gehäuse-Material	Aluminium
für Lichtsysteme angepasst	Ja

Optische Produktdaten

Raster/ Blendschutz	OPAL
Abdeckungsfarbe	weiß
Abdeckungsmaterial	Kunststoff opal / matt
UGR	14, 15, 17, 18

Elektrische Produktdaten

Leuchtmittel	LED
Leuchtenanschlussleistung	30 - 70 W
Lampenanzahl	1
Lieferbares Zubehör	Netzteil
Nennspannung	220 ... 240 V
mit Leuchtmittel bestückt	Ja
Power factor	0.96
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Bewegungssensor	opcjonalnie

Information data

Net weight	2.2 - 10 kg

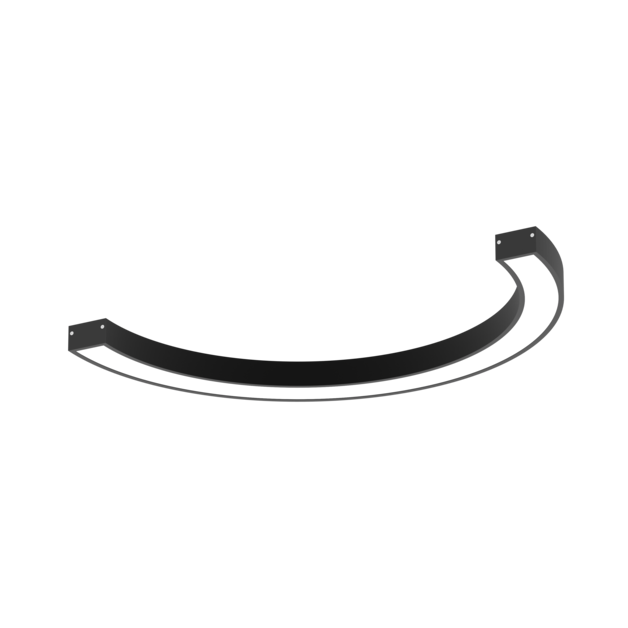

Farbe	Anthracite, grau, schwarz, weiß
Betriebstemperaturumfang	-15 ... 40
Power and luminous flux tolerance	+/-10%

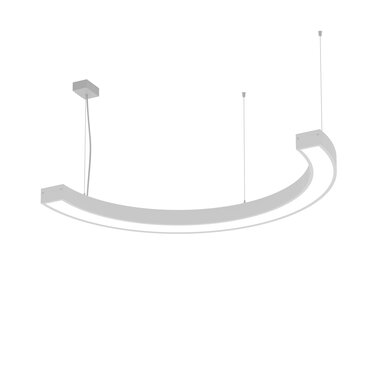

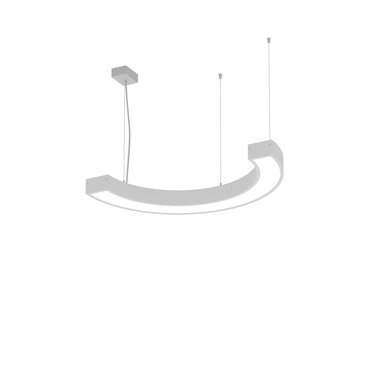

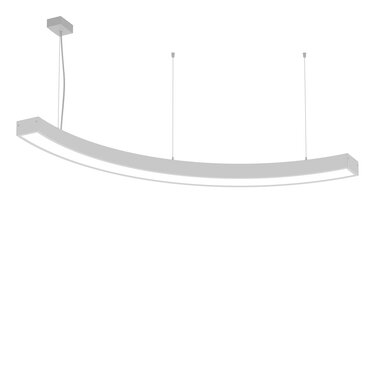

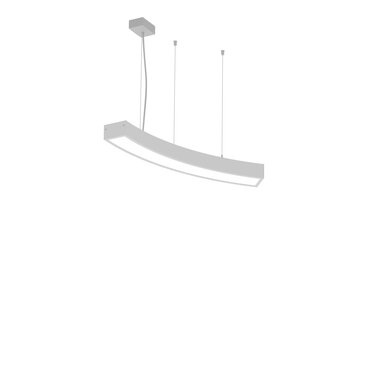

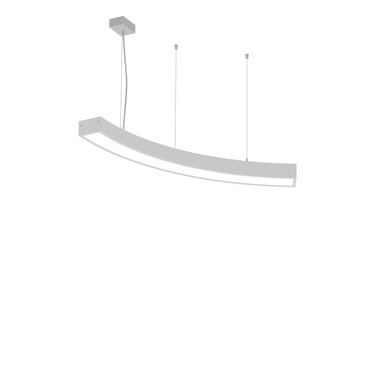

Info	1/2-Ring-180°, 1/4-Ring-90°, 1/6-Ring-60°, 1/8-Ring-45°

Lichttechnische Daten

Leuchtenlichtstrom	2480 - 7270 lm
Lichtausbeute der Leuchte	82 - 104 lm/W
Lichtausbeute der Leuchte	59
Lichtfarbe	weiss
Farbwiedergabeindex	80, 90
Lichtverteilung	breitstrahlend
Lichtverteilung	Lichtaustritt DI
Schutzklasse der Leuchte	I
Light output degradation	B10
Lumen maintenance	L80
Lifetime	54000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	84 %
Farbtemperatur	3000K, 4000K
Farbtemperatur / CRI	830, 840, 930, 940

Zertifikate

Schutzart IP	IP40
Schlagfestigkeit	IK04
Schutzklasse	I
Power Flicker	=< 3%
Lampenschutz	Ja
CE	Ja
HACCP+	Ja
EAC	Ja

Product variants

✕

Suche

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Farbe

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI /Farbtemperatur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Netzteil

A ON/OFF /WITHOUT REGULATION/

D HO /DRIVER WITH PREDEFINED SETTING/

H DSI

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

X 1-10V /ADJUSTABLE/

S DMX

V sDIMM

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Bewegungssensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Leuchtenlichtstrom	Lichtausbeute der Leuchte	Raster/ Blendschutz [Układ optyczny]	Farbtemperatur / CRI	Farbe	Type of driver	Through wiring	Familientyp
EC001.1111.830.A010 Copy the code Open in new window	45 W	4360 lm	97 lm/W	OPAL	830	weiß	ON/OFF	TH3	800mm 180°
EC001.1111.830.D010 Copy the code Open in new window	45 W	4360 lm	97 lm/W	OPAL	830	weiß	DALI	TH3	800mm 180°
EC001.1111.830.D020 Copy the code Open in new window	45 W	4360 lm	97 lm/W	OPAL	830	weiß	DALI	TH5	800mm 180°
EC001.1111.840.A010 Copy the code Open in new window	45 W	4490 lm	100 lm/W	OPAL	840	weiß	ON/OFF	TH3	800mm 180°
EC001.1111.840.D020 Copy the code Open in new window	45 W	4490 lm	100 lm/W	OPAL	840	weiß	DALI	TH5	800mm 180°
EC001.1111.930.A010 Copy the code Open in new window	45 W	3710 lm	82 lm/W	OPAL	930	weiß	ON/OFF	TH3	800mm 180°
EC001.1111.930.D020 Copy the code Open in new window	45 W	3710 lm	82 lm/W	OPAL	930	weiß	DALI	TH5	800mm 180°
EC001.1111.940.A010 Copy the code Open in new window	45 W	3820 lm	85 lm/W	OPAL	940	weiß	ON/OFF	TH3	800mm 180°
EC001.1111.940.D020 Copy the code Open in new window	45 W	3820 lm	85 lm/W	OPAL	940	weiß	DALI	TH5	800mm 180°
EC001.2211.830.A010 Copy the code Open in new window	45 W	4360 lm	97 lm/W	OPAL	830	grau	ON/OFF	TH3	800mm 180°
EC001.2211.830.D020 Copy the code Open in new window	45 W	4360 lm	97 lm/W	OPAL	830	grau	DALI	TH5	800mm 180°
EC001.2211.840.A010 Copy the code Open in new window	45 W	4490 lm	100 lm/W	OPAL	840	grau	ON/OFF	TH3	800mm 180°
EC001.2211.840.A020 Copy the code Open in new window	45 W	4490 lm	100 lm/W	OPAL	840	grau	ON/OFF	TH5	800mm 180°
EC001.2211.840.D020 Copy the code Open in new window	45 W	4490 lm	100 lm/W	OPAL	840	grau	DALI	TH5	800mm 180°
EC001.2211.930.A010 Copy the code Open in new window	45 W	3710 lm	82 lm/W	OPAL	930	grau	ON/OFF	TH3	800mm 180°

Displaying items: 15 of 125

of 9

per page

Montageanleitung

725.36 KB

Download

Fotometrische Datei

4.78 KB

Download

Konformitätserklärung

Download

Karta rodziny

Download

Pobierz wszystkie pliki

Bauformelementen

Geometrische Bogen-/Linien-LED-Endkappen

Elektrische Elementen

Elektrisches Federungsset

Montageelemente

Aufhängungssatz 1x
