Dekorative Beleuchtung

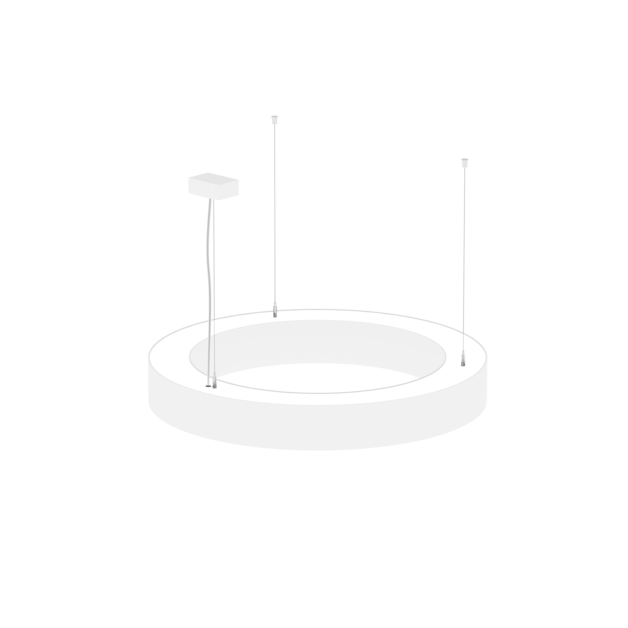

Geometric Ring LED DI-IN 800 124W 7360/3190lm 940 OPAL White DALI
A family of LED luminaires in the shape of a round. Thanks to their modern and universal shape, GEOMETRIC RING MINI LED luminaires can be used in any type of space inside a building. Their main characteristics are a uniform luminance all over the OPAL diffuser and a high-quality lighting performance. Suspensions in set.
Dekorative Beleuchtung
Geometric Ring LED DI-IN 800 124W 7360/3190lm 940 OPAL White DALI
A family of LED luminaires in the shape of a round. Thanks to their modern and universal shape, GEOMETRIC RING MINI LED luminaires can be used in any type of space inside a building. Their main characteristics are a uniform luminance all over the OPAL diffuser and a high-quality lighting performance. Suspensions in set.
LED
Lichtaustritt DI
IP20
I
Ja
Ja
Ja
Basic information:
Index:
AE003.1111.940.D000
EAN:
5904312029450
Montageart:
suspended (suspensions 1,5 m in set)
Power:
220 ... 240  V
Technical data
Geometric Ring LED DI-IN 800 124W 7360/3190lm 940 OPAL White DALI
PRODUKTCODE
AE003.1111.940.D000
Copy the code
PRODUKT-EAN
5904312029450
Copy the EAN code
Mechanische Produktdaten
Gehäuse-Material Aluminium
Optische Produktdaten
Raster/ Blendschutz OPAL
Abdeckungsfarbe weiß
Abdeckungsmaterial Kunststoff opal / matt
UGR 16
Elektrische Produktdaten
Leuchtmittel LED
Leuchtenanschlussleistung 124 W
Lieferbares Zubehör Netzteil
Nennspannung 220 ... 240 V
Through wiring Nein
Type of driver DALI
Emergency module Nein
Bewegungssensor Nein
Information data
Net weight 8.5 kg
Farbe weiß
Power and luminous flux tolerance +/-10%
Lichttechnische Daten
Leuchtenlichtstrom 7360 lm
Lichtausbeute der Leuchte 59 lm/W
Farbwiedergabeindex 90
Lichtverteilung Lichtaustritt DI
Farbtemperatur 4000K
Farbtemperatur / CRI 940
Zertifikate
Schutzart IP IP20
Schlagfestigkeit IK04
Schutzklasse I
Lampenschutz Ja
CE Ja
HACCP+ Ja
EAC Ja
Abmessungen
F
800 mm
F - Aussendurchmesser
