Pisa LED

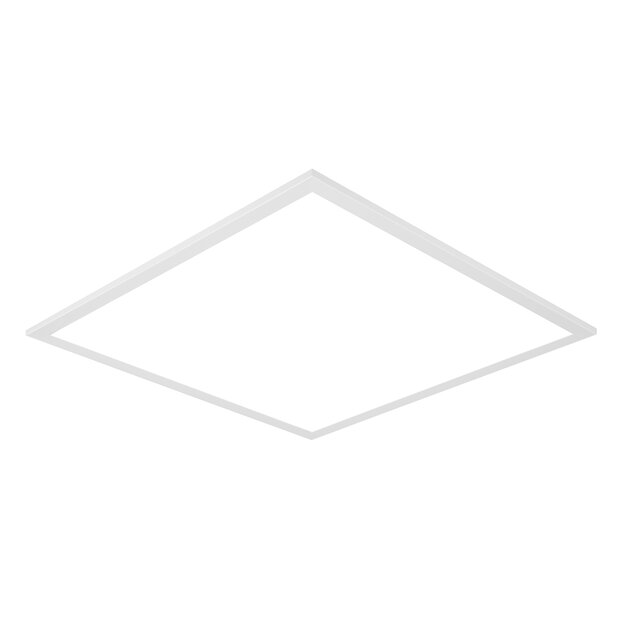

PISA LED is a luminaire characterized by good luminous parameters, quick installation and a uniform luminance on the surface of the diffuser. It is designed for installation in public facilities with plaster-cardboard ceilings.

Innenbeleuchtung für Deckenmodul

Pisa LED

PISA LED is a luminaire characterized by good luminous parameters, quick installation and a uniform luminance on the surface of the diffuser. It is designed for installation in public facilities with plaster-cardboard ceilings.

Go to the variant list (779)

LED

Lichtaustritt DI

IP20

IP40

Basic information:

Ausführung:

powder painted steel sheet body (standard colour: white). OPAL, microprismatic (MPRM) diffusers

Montageart:

into plaster-cardboard ceiling

Power:

220 ... 240 V

Categorization:

Leuchtentyp:

Innenbeleuchtung für Deckenmodul

Anwendung:

produktionshallen/lagerhallen, Büroräume, Konferenzräume, Flure-treppenhaeuser, Vertriebs-/Servicebereiche, Hörsäle, Klassenraeume, Computerlabore, Umkleideraume, Wachräume, soziale Räume

Montagetyp:

Einbauleuchten

Technical data:

Luminaire power:

10 - 60 W

Leuchtenlichtstrom:

1020 - 9170 lm

Länge:

595 mm, 1195 mm

See other technical data

Technical data

Mechanische Produktdaten

Montagearten	Montage in einer aufgehängten Decke - Gipskartondecke
Gehäuse-Material	Stahlblech
für Lichtsysteme angepasst	Ja

Optische Produktdaten

Raster/ Blendschutz	MPOP, MPRM, OPAL
UGR	14, 15, 16, 17, 18, 19

Elektrische Produktdaten

Leuchtmittel	LED
Leuchtenanschlussleistung	10 - 60 W
LED modules	1x
Lampenanzahl	1
Lieferbares Zubehör	Netzteil
Nennspannung	220 ... 240 V
mit Leuchtmittel bestückt	Ja
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Bewegungssensor	opcjonalnie

Information data

Net weight	2.7 - 9.7 kg
Farbe	schwarz, weiß
Power and luminous flux tolerance	+/-10%
Info	300x1200, 300x600, 600x1200, 600x600

Lichttechnische Daten

Leuchtenlichtstrom	1020 - 9170 lm
Lichtausbeute der Leuchte	64 - 162 lm/W
Lichtfarbe	weiss
Farbwiedergabeindex	80, 90
Lichtverteilung	breitstrahlend, Średniostrumieniowy
Lichtverteilung	Lichtaustritt DI
Schutzklasse der Leuchte	I
Light output degradation	B10
Lumen maintenance	L80
Lifetime	54000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	86 %
Farbtemperatur	3000K, 4000K
Farbtemperatur / CRI	830, 840, 930, 940

Zertifikate

Schutzart IP /obere/	IP20
Schutzart IP /von unten/	IP40
Schlagfestigkeit	IK04
Schutzklasse	I
Lampenschutz	Ja
CE	Ja
HACCP+	Ja
EAC	Ja

Product variants

✕
