Innenbeleuchtung für Deckenmodul
Prato LED 600x600 26W 3000lm 830 MPRM White
PRATO LED is a luminaire characterized by good luminous parameters, quick installation and a uniform luminance on the surface of the diffuser.
Innenbeleuchtung für Deckenmodul
Prato LED 600x600 26W 3000lm 830 MPRM White
PRATO LED is a luminaire characterized by good luminous parameters, quick installation and a uniform luminance on the surface of the diffuser.
LED
ON/OFF
Lichtaustritt DI
IP44
II
Ja
Ja
Ja
Ja
Basic information:
Index:
DA009.1122.830.A000
EAN:
5904349151162
Zubehör:
Prato LED-Rahmen zur Aufputzmontage, Prato LED Pendelset Y, Prato LED-Gipskarton-Installationsset
Montageart:
600x600 suspended ceiling with visible supporting structure, plaster-cardboard frame to 600x600, surface mounted, suspneded
Power:
220 ... 240  V
Technical data
Prato LED 600x600 26W 3000lm 830 MPRM White
PRODUKTCODE
DA009.1122.830.A000
Copy the code
PRODUKT-EAN
5904349151162
Copy the EAN code
Mechanische Produktdaten
Gehäuse-Material Aluminium
Optische Produktdaten
Raster/ Blendschutz MPRM
Abdeckungsfarbe fehlt
Abdeckungsmaterial Kunststoff strukturell / prismatisch
Elektrische Produktdaten
Leuchtmittel LED
Leuchtenanschlussleistung 26 W
Lieferbares Zubehör Netzteil
Nennspannung 220 ... 240 V
Through wiring Nein
Type of driver ON/OFF
Emergency module Nein
Bewegungssensor Nein
Information data
Net weight 3.5 kg
Farbe weiß
Power and luminous flux tolerance +/-10%
Lichttechnische Daten
Leuchtenlichtstrom 3000 lm
Lichtausbeute der Leuchte 115 lm/W
Farbwiedergabeindex 80

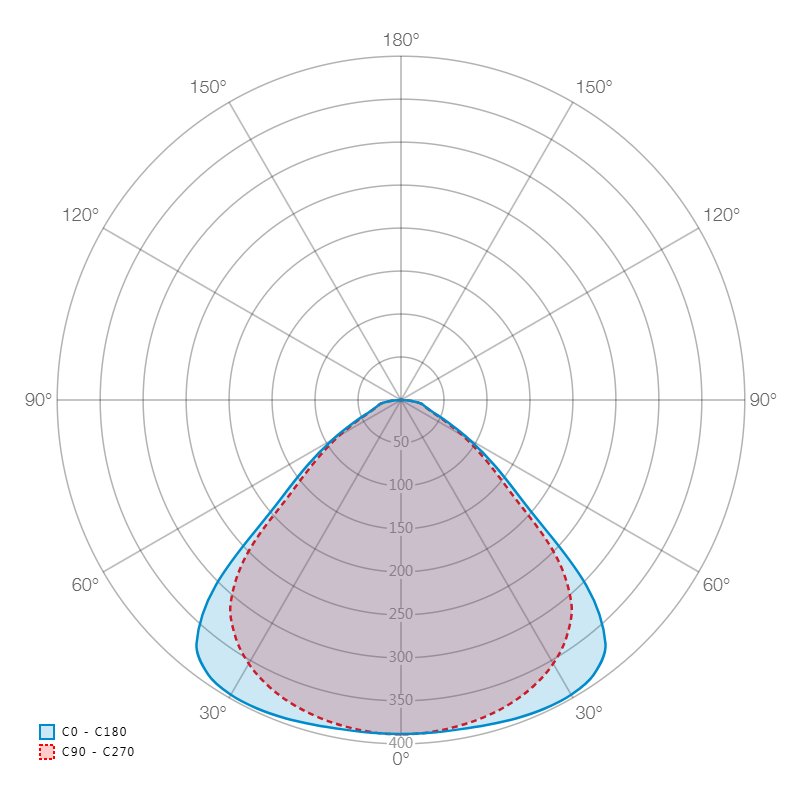

Lichtverteilung Lichtaustritt DI
Farbtemperatur 3000K
Farbtemperatur / CRI 830
Zertifikate
Schutzart IP IP44
Schutzklasse II
Lampenschutz Ja
PZH Ja
CE Ja
HACCP+ Ja
EAC Ja
Abmessungen
L W H
595 mm 595 mm 12 mm
L - Länge
W - Breite
H - Höhe / Einbautiefe
Download
Produktdatenblatt
Download
Family datasheet
Download
Family datasheet extended
Download
Montageanleitung
416.78 KB
Download
Konformitätserklärung
Download
Pobierz wszystkie pliki
