Reinraumleuchten

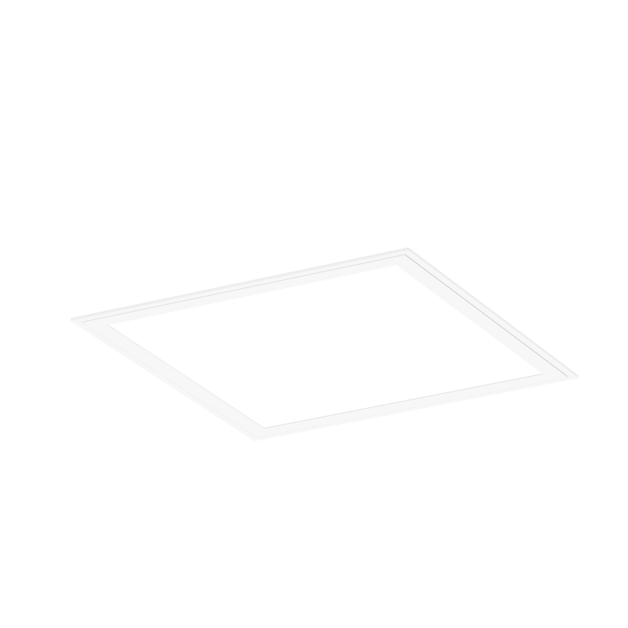

Roma Clean IP65 LED 600x600 43W 5100lm 8TW OPAL White DALI
Series of luminaires recommended for industrial areas and for clean rooms where increased IP protection degree is required. Luminaires are available both in CRI>80 and increased CRI>90. Luminaires dedicated for installation in recessed and 600x600 ceiling with visible grid. Luminaire is suitable for use in cleanrooms fulfilling the specification of air cleanliness ISO Class 3 - 9 according to ISO 14644-1:2015. Qualification certificate "ISO 14644-14 Cleanroom suitability test: particle emission test"
Reinraumleuchten
Roma Clean IP65 LED 600x600 43W 5100lm 8TW OPAL White DALI
Series of luminaires recommended for industrial areas and for clean rooms where increased IP protection degree is required. Luminaires are available both in CRI>80 and increased CRI>90. Luminaires dedicated for installation in recessed and 600x600 ceiling with visible grid. Luminaire is suitable for use in cleanrooms fulfilling the specification of air cleanliness ISO Class 3 - 9 according to ISO 14644-1:2015. Qualification certificate "ISO 14644-14 Cleanroom suitability test: particle emission test"
LED
DALI
Lichtaustritt DI
IP65
IP65
IK08
I
Ja
Ja
Ja
Ja
Ja
Basic information:
Index:
CG001.1111.8TW.D000
EAN:
5907671376364
Zubehör:
Roma Clean IP65 LED Clip-IN MOntagebügel
Montageart:
Into modular ceilings 600x600, plaster-cardboard ceilings.
Power:
220 ... 240  V
Technical data
Roma Clean IP65 LED 600x600 43W 5100lm 8TW OPAL White DALI
PRODUKTCODE
CG001.1111.8TW.D000
Copy the code
PRODUKT-EAN
5907671376364
Copy the EAN code
Mechanische Produktdaten
Montagearten Deckenmontage
Gehäuse-Material Stahlblech
Optische Produktdaten
Raster/ Blendschutz OPAL
Abdeckungsfarbe weiß
Abdeckungsmaterial Kunststoff opal / matt
UGR 19
Elektrische Produktdaten
Leuchtmittel LED
Leuchtenanschlussleistung 43 W
Lampenanzahl 1
Lieferbares Zubehör Netzteil
Nennspannung 220 ... 240 V
Through wiring Nein
mit Leuchtmittel bestückt Ja
Power factor 0.96
Type of driver DALI
Emergency module Nein
Bewegungssensor Nein
Information data
Net weight 6.8 kg
Farbe weiß
RAL – jede Farbe aus der Palette Ja
Power and luminous flux tolerance +/-10%
Info 600x600
Lichttechnische Daten
Leuchtenlichtstrom 5100 lm
Lichtausbeute der Leuchte 119 lm/W
Lichtfarbe weiss
Farbwiedergabeindex 80
Lichtverteilung Lichtaustritt DI
Schutzklasse der Leuchte I
MacAdam SDCM 3
L80B10 @25°C 100000 h
L90B10 @25°C 64000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Farbtemperatur 2700-6500K
Farbtemperatur / CRI 8TW
Zertifikate
Schutzart IP /obere/ IP65
Schutzart IP /von unten/ IP65
Schlagfestigkeit IK08
Schutzklasse I
Power Flicker =< 3%
Lampenschutz Ja
PZH Ja
CE Ja
HACCP+ Ja
EAC Ja
ISO 14644-14 (air cleanliness ISO Class 3 - 9) Ja
Abmessungen
L W H
595 mm 595 mm 85 mm
L - Länge
W - Breite
H - Höhe / Einbautiefe
Download
Produktdatenblatt
Download
Family datasheet
Download
Family datasheet extended
Download
Montageanleitung
942.04 KB
Download
Konformitätserklärung
Download
Photometric file
588 B
Download
Pobierz wszystkie pliki
