Architekturbeleuchtung

Stream LED

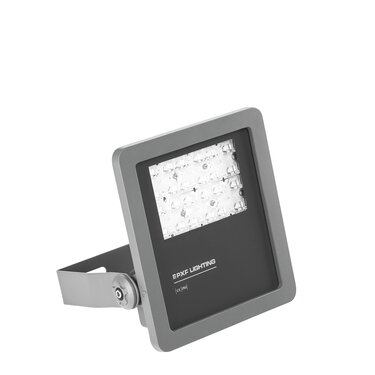

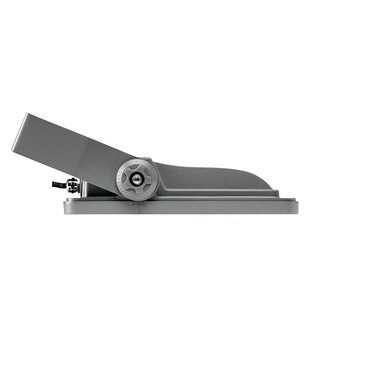

STREAM LED is a floodlight using LED light sources with good optical characteristics. It is perfect for lighting sports fields, swimming pools, car parks and manoeuvring areas.

Architekturbeleuchtung

Stream LED

STREAM LED is a floodlight using LED light sources with good optical characteristics. It is perfect for lighting sports fields, swimming pools, car parks and manoeuvring areas.

Go to the variant list (32)

LED

Lichtaustritt DI

IP65

Basic information:

Ausführung:

body of die cast aluminium painted with thermosetting paint. Tempered glass.

Zubehör:

pole adapter

Montageart:

wall, floor, installation bracket included

Power:

220 ... 240 V

Categorization:

Leuchtentyp:

Architekturbeleuchtung

Anwendung:

Äußenbereich eines Wohngebiets, Gebäudeillumination, Gebäudeumgebung , Schattenspender, Straßenbeleuchtung, Parkplätze , Parkplätze und Garagen, Garagen

Montagetyp:

Pollerleuchten, Wandleuchten, Bodenmontage

Technical data:

Luminaire power:

25 - 206 W

Leuchtenlichtstrom:

3275 - 30100 lm

Länge:

275 mm, 385 mm, 425 mm

See other technical data

Technical data

Mechanische Produktdaten

Montagearten	Universal
Gehäuse-Material	Aluminium-Druckguss

Optische Produktdaten

Raster/ Blendschutz	LNS
UGR	17, 20, 30, 32, 33

Elektrische Produktdaten

Leuchtmittel	LED
Leuchtenanschlussleistung	25 - 206 W
Lieferbares Zubehör	Netzteil
Nennspannung	220 ... 240 V
Through wiring	Nein
mit Leuchtmittel bestückt	Ja
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Bewegungssensor	opcjonalnie

Information data

Net weight	3 - 7 kg
Farbe	Anthracite, weiß
Power and luminous flux tolerance	+/-10%
Info	AS, AS 135°x85°, SM, SM 25°

Lichttechnische Daten

Leuchtenlichtstrom	3275 - 30100 lm
Lichtausbeute der Leuchte	104 - 162 lm/W
Lichtfarbe	weiss
Farbwiedergabeindex	80
Lichtverteilung	breitstrahlend
Lichtverteilung	Lichtaustritt DI
Schutzklasse der Leuchte	I
Light output degradation	B10
Lumen maintenance	L70
Farbtemperatur	3000K, 4000K
Farbtemperatur / CRI	830, 840

Zertifikate

Schutzart IP	IP65
Schlagfestigkeit	IK10
Schutzklasse	I
Lampenschutz	Ja
CE	Ja
HACCP+	Ja
EAC	Ja

Product variants

✕

Suche

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Farbe

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI /Farbtemperatur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Netzteil

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Bewegungssensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Leuchtenlichtstrom	Lichtausbeute der Leuchte	Optics	Abstrahlwinkel / Ausstrahlungswinkel	Raster/ Blendschutz [Układ optyczny]	Farbtemperatur / CRI	Farbe	Type of driver	Familientyp
DC007.4477.830.A000 Copy the code Open in new window	52 W	5975 lm	115 lm/W	AS		LNS	830	Anthracite	ON/OFF	AS 52W
DC007.4477.830.D000 Copy the code Open in new window	52 W	5975 lm	115 lm/W	AS		LNS	830	Anthracite	DALI	AS 52W
DC007.4477.840.A000 Copy the code Open in new window	52 W	6290 lm	121 lm/W	AS		LNS	840	Anthracite	ON/OFF	AS 52W
DC007.4477.840.D000 Copy the code Open in new window	52 W	6290 lm	121 lm/W	AS		LNS	840	Anthracite	DALI	AS 52W
DC008.4477.830.A000 Copy the code Open in new window	52 W	5400 lm	104 lm/W	SM		LNS	830	Anthracite	ON/OFF	SM 52W
DC008.4477.830.D000 Copy the code Open in new window	52 W	5400 lm	104 lm/W	SM		LNS	830	Anthracite	DALI	SM 52W
DC008.4477.840.A000 Copy the code Open in new window	52 W	6350 lm	122 lm/W	SM		LNS	840	Anthracite	ON/OFF	SM 52W
DC009.4477.830.D000 Copy the code Open in new window	52 W	7780 lm	150 lm/W	SM		LNS	830	Anthracite	DALI	SM 25° 52W
DC009.4477.840.A000 Copy the code Open in new window	52 W	7780 lm	150 lm/W	SM		LNS	840	Anthracite	ON/OFF	SM 25° 52W
DC010.4477.840.A000 Copy the code Open in new window	52 W	7140 lm	137 lm/W	AS		LNS	840	Anthracite	ON/OFF	AS 135°x85° 52W
DC010.4477.840.D000 Copy the code Open in new window	52 W	7140 lm	137 lm/W	AS		LNS	840	Anthracite	DALI	AS 135°x85° 52W
DC011.4477.840.A000 Copy the code Open in new window	122 W	14680 lm	120 lm/W	AS		LNS	840	Anthracite	ON/OFF	AS 122W
DC011.4477.840.D000 Copy the code Open in new window	122 W	14680 lm	120 lm/W	AS		LNS	840	Anthracite	DALI	AS 122W
DC012.1177.840.A000 Copy the code Open in new window	122 W	14810 lm	121 lm/W	SM		LNS	840	weiß	ON/OFF	SM 122W
DC012.4477.840.A000 Copy the code Open in new window	122 W	14810 lm	121 lm/W	SM		LNS	840	Anthracite	ON/OFF	SM 122W

Displaying items: 15 of 32
