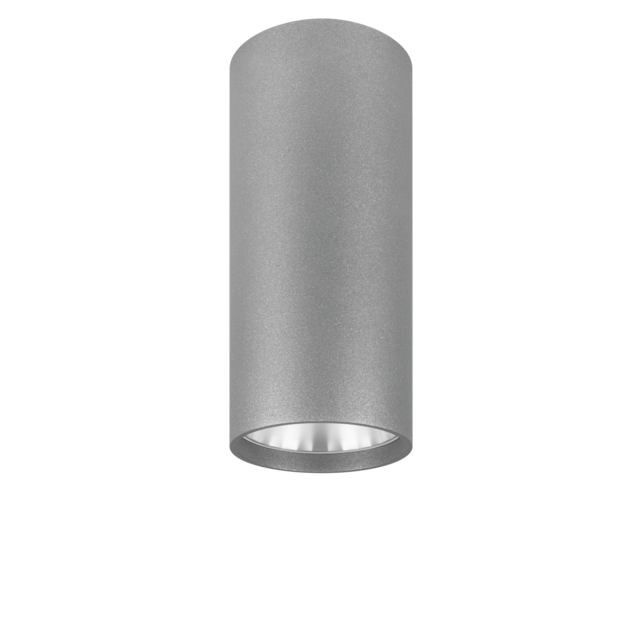

Tubo NT LED

Ceiling mounted LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour.

Downlight

Tubo NT LED

Ceiling mounted LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour.

Go to the variant list (193)

LED

Lichtaustritt DI

IP20

Basic information:

Ausführung:

Electrostatically painted aluminium profile (standard colour: anthracite), translucent diffuser

Montageart:

Ceiling mounted

Power:

220 ... 240 V

Categorization:

Leuchtentyp:

Downlight

Anwendung:

Flure-treppenhaeuser, Büroräume, Aufenthaltsraeume-und-wartebereiche

Montagetyp:

Anbauleuchten

Technical data:

Luminaire power:

15 - 29 W

Leuchtenlichtstrom:

1330 - 2640 lm

Länge:

140 mm, 200 mm

See other technical data

Beschreibung der Produktfamilie

Technical data

Mechanische Produktdaten

Montagearten	Deckemontage (Aufputzmontage)
Gehäuse-Material	Aluminium

Optische Produktdaten

Raster/ Blendschutz	RF
Spiegelraster	high gloss
UGR	18, 19, 20, 25, 26, 27

Elektrische Produktdaten

Leuchtmittel	LED
Leuchtenanschlussleistung	15 - 29 W
LED modules	1x
Lampenanzahl	1
Lieferbares Zubehör	Netzteil
Nennspannung	220 ... 240 V
Through wiring	Nein
mit Leuchtmittel bestückt	Ja
Power factor	0.95
Type of driver	DALI, ON/OFF
Emergency module	option
Bewegungssensor	option

Information data

Net weight	0.6 - 0.8 kg
Farbe	Anthracite, grau, schwarz, weiß
Betriebstemperaturumfang	-20 ... 35
RAL – jede Farbe aus der Palette	Ja
Power and luminous flux tolerance	+/-10%

Lichttechnische Daten

Leuchtenlichtstrom	1330 - 2640 lm
Lichtausbeute der Leuchte	82 - 98 lm/W
Lichtausbeute der Leuchte	76 - 81
Lichtfarbe	weiss
Farbwiedergabeindex	80
direkt/indirekt, unabhängig einstellbar	Nein
Lichtverteilung	Bardzo wąskostrumieniowy, Średniostrumieniowy
Lichtverteilung	Lichtaustritt DI
Schutzklasse der Leuchte	I
Abstrahlwinkel / Ausstrahlungswinkel	30 °, 50 °, 70 °
Light output degradation	B10
Lumen maintenance	L90
Lifetime	60000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	91 %
Farbtemperatur	3000K, 4000K
Farbtemperatur / CRI	830, 840

Zertifikate

Schutzart IP	IP20
Schlagfestigkeit	IK10
Schutzklasse	I
Power Flicker	=< 3%
Lampenschutz	Ja
CE	Ja
HACCP+	Ja
EAC	Ja

Product variants

✕

Suche

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Farbe

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI /Farbtemperatur

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Netzteil

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Bewegungssensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/
