Linear

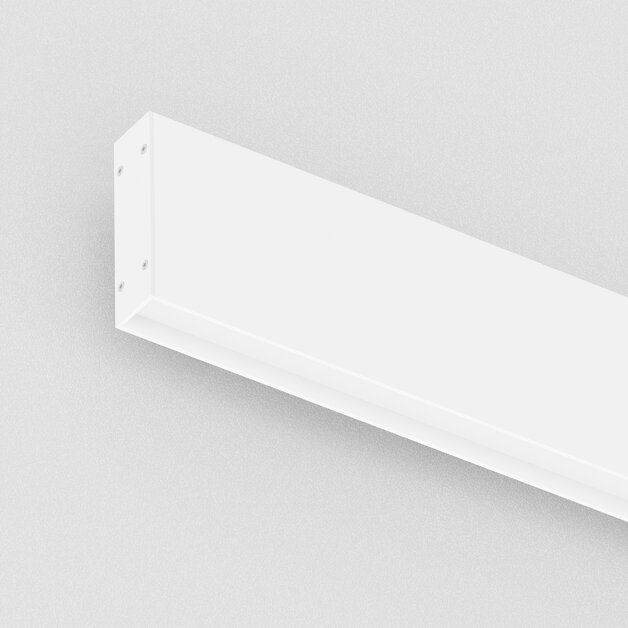

Alto Wall LED DI-IN 306 14W 650/560lm 930 OPAL White DALI
ALTO WALL LED is an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces. Versions with direct ora direct-indirect light distribution.
Linear
Alto Wall LED DI-IN 306 14W 650/560lm 930 OPAL White DALI
ALTO WALL LED is an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces. Versions with direct ora direct-indirect light distribution.
LED
DI/IN
IP20
I
yes
yes
yes
Basic information:
Index:
AB006.1111.930.D000
EAN:
5904312019666
Installation:
wall mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Linear
Application:
Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab
Mounting type:
Wall mounted
Technical data Download
Technical data
Alto Wall LED DI-IN 306 14W 650/560lm 930 OPAL White DALI
PRODUCT CODE
AB006.1111.930.D000
Copy the code
PRODUCT EAN
5904312019666
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
Electrical data
Light source LED
Luminaire power 14 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Power factor 0.96
Type of driver DALI
Emergency module No
Motion sensor No
Information data
Net weight 0.85 kg
Colour White
Operating temperature range -20 ... 40
Power and luminous flux tolerance +/-10%
Inne 306 mm
Light data
Luminaire luminous flux DI 650 lm
Luminaire luminous flux IN 560 lm
Luminaire's luminous efficacy 86 lm/W
Light colour White
Color rendering index 90
Light distribution DI/IN
Light output degradation B10
Lumen maintenance L80
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K
CRI & colour temperature 930
Certificates
Degree of protection (IP) IP20
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
306 mm 28 mm 100 mm
L - Length
W - Width
H - Height / Depth
