Asymmetric LED

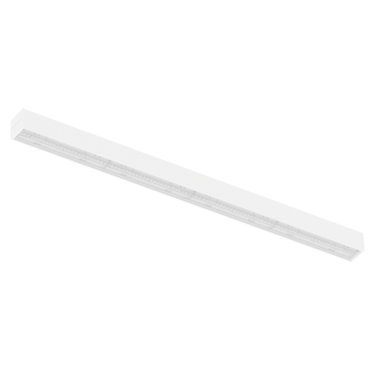

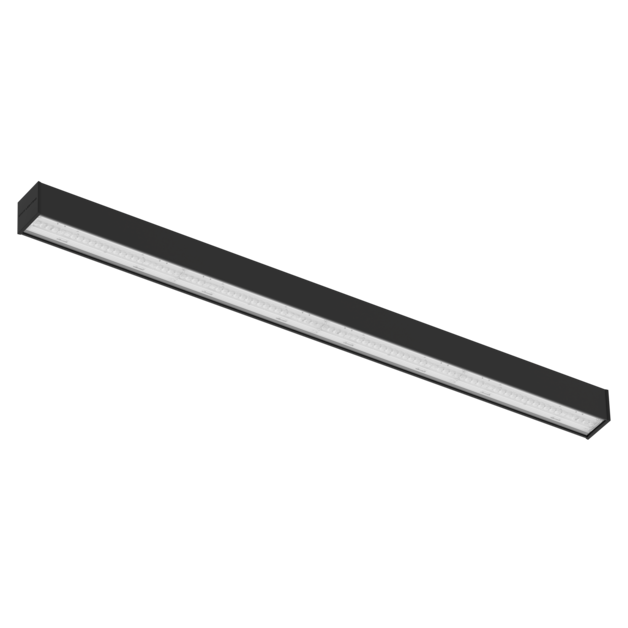

Luminaire is made of aluminum profile and characterized by asymmetric light distribution. ASYMMETRIC LED is perfect for illumination of blackboards, where designed reflector directs luminous flux directly on vertical surface.

Linear

Asymmetric LED

Luminaire is made of aluminum profile and characterized by asymmetric light distribution. ASYMMETRIC LED is perfect for illumination of blackboards, where designed reflector directs luminous flux directly on vertical surface.

Go to the variant list (98)

LED

IP20

yes

yes

yes

Basic information:

Materials:

Powder painted aluminum profile. Transparent diffuser. The luminaire can be installed individually or combined into lighting lines with other Asymmetric LED or VIP LED luminaires.

Accessories:

Suspensions (simple, electric)

Installation:

surface mounted, suspended

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Linear

Application:

Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom

Mounting type:

Ceiling mounted, Pendant

Technical data:

Luminaire power:

19 - 73 W

Luminaire luminous flux:

2485 - 10435 lm

Length:

575 mm, 1135 mm, 1695 mm, 2255 mm

See other technical data

Technical data

Mechanical data

Housing material	Aluminum
Designed for light-line	yes

Optical data

Louver/ diffuser

LNS

Electrical data

Light source	LED
Luminaire power	19 - 73 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Motion sensor	opcjonalnie

Information data

Net weight	1.5 - 4.4 kg
Colour	Black, Grey, White
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	2485 - 10435 lm
Luminaire's luminous efficacy	131 - 143 lm/W
Color rendering index	80
Light distribution	DI
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840

Certificates

Degree of protection (IP)	IP20
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Through wiring	Motion sensor	Type of family
AC005.1177.830.A000 Copy the code Open in new window	19 W	2485 lm	131 lm/W	LNS	830	White	ON/OFF	No	No	No	575mm
AC005.1177.830.A020 Copy the code Open in new window	19 W	2485 lm	131 lm/W	LNS	830	White	ON/OFF	No	TH5	No	575mm
AC005.1177.830.D000 Copy the code Open in new window	19 W	2485 lm	131 lm/W	LNS	830	White	DALI	No	No	No	575mm
AC005.1177.830.D020 Copy the code Open in new window	19 W	2485 lm	131 lm/W	LNS	830	White	DALI	No	TH5	No	575mm
AC005.1177.840.A000 Copy the code Open in new window	19 W	2610 lm	137 lm/W	LNS	840	White	ON/OFF	No	No	No	575mm
AC005.1177.840.A020 Copy the code Open in new window	19 W	2610 lm	137 lm/W	LNS	840	White	ON/OFF	No	TH5	No	575mm
AC005.1177.840.D000 Copy the code Open in new window	19 W	2610 lm	137 lm/W	LNS	840	White	DALI	No	No	No	575mm
AC005.1177.840.D020 Copy the code Open in new window	19 W	2610 lm	137 lm/W	LNS	840	White	DALI	No	TH5	No	575mm
AC005.2277.830.A000 Copy the code Open in new window	19 W	2485 lm	131 lm/W	LNS	830	Grey	ON/OFF	No	No	No	575mm
AC005.2277.830.A020 Copy the code Open in new window	19 W	2485 lm	131 lm/W	LNS	830	Grey	ON/OFF	No	TH5	No	575mm
AC005.2277.830.D000 Copy the code Open in new window	19 W	2485 lm	131 lm/W	LNS	830	Grey	DALI	No	No	No	575mm
AC005.2277.830.D020 Copy the code Open in new window	19 W	2485 lm	131 lm/W	LNS	830	Grey	DALI	No	TH5	No	575mm
AC005.2277.840.A000 Copy the code Open in new window	19 W	2610 lm	137 lm/W	LNS	840	Grey	ON/OFF	No	No	No	575mm
AC005.2277.840.A020 Copy the code Open in new window	19 W	2610 lm	137 lm/W	LNS	840	Grey	ON/OFF	No	TH5	No	575mm
AC005.2277.840.D000 Copy the code Open in new window	19 W	2610 lm	137 lm/W	LNS	840	Grey	DALI	No	No	No	575mm

Displaying items: 15 of 98

of 7

per page

Family datasheet

Download

Family datasheet extended

Download

Installation manual

379.39 KB

Download

EC Declaration of conformity

Download

Photometric file

9.94 KB

Download

Pobierz wszystkie pliki

Electric elements

Electric suspension kit

Installation elements

Suspension kit 1x
