Downlight
Bari DL ADJ LED 135 15W 1660lm 840 RF White EM1H ST
Image for the product family
Downlight
Bari DL ADJ LED 135 15W 1660lm 840 RF White EM1H ST
LED
DI
IP20
IP20
I
yes
yes
yes
yes
Basic information:
Index:
DF001.1166.840.A100
EAN:
5904312833361
Power:
220 ... 240  V
Categorization:
Technical data
Bari DL ADJ LED 135 15W 1660lm 840 RF White EM1H ST
PRODUCT CODE
DF001.1166.840.A100
Copy the code
PRODUCT EAN
5904312833361
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 19
Electrical data
Light source LED
Luminaire power 15 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module EM1H ST
Motion sensor No
Information data
Net weight 1.5 kg
Colour White
Power and luminous flux tolerance +/-10%

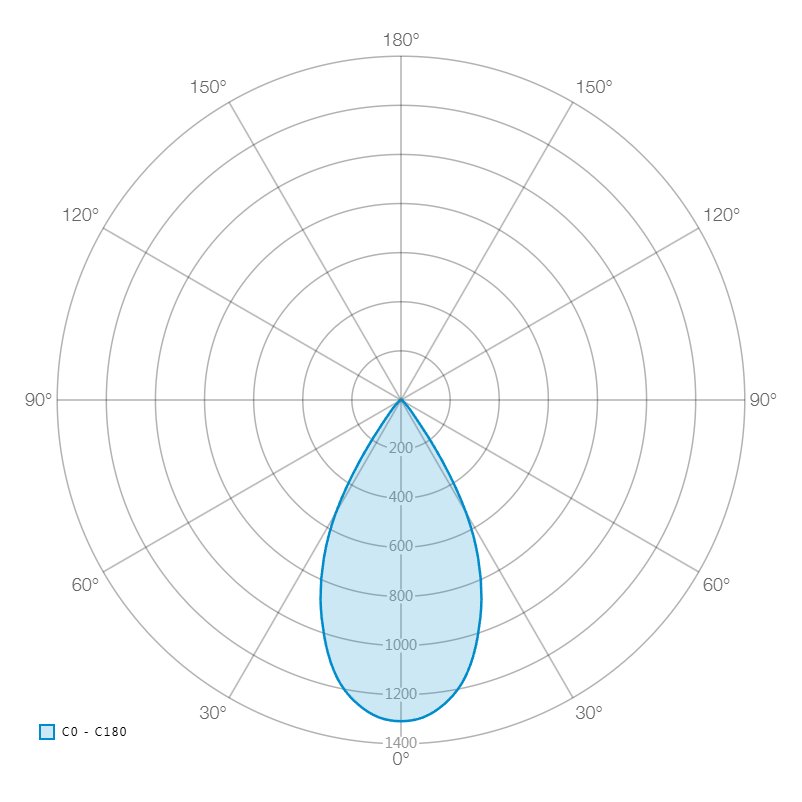

Light data
Luminaire luminous flux 1660 lm
Luminaire's luminous efficacy 111 lm/W
Color rendering index 80
Light distribution DI
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP20
Impact resistance IK04
Class of protection I
PZH yes
CE yes
HACCP+ yes
EAC yes
Dimensions
F
135 mm
F - Outer diameter
