Bari DLK LED 15W 1500lm 840 RF White EM1H ST

Ta strona korzysta z plików cookie, aby zapewnić najlepsze doświadczenie korzystania z naszej witryny.

Downlight

Downlight DLK with square frame complements the series of round BARI luminaires for installation into plaster-cardboard ceiling and into modular ceilings (optional mounting reinforcement).

Downlight

Bari DLK LED 15W 1500lm 840 RF White EM1H ST

Downlight DLK with square frame complements the series of round BARI luminaires for installation into plaster-cardboard ceiling and into modular ceilings (optional mounting reinforcement).

Basic information:

Index:

DI001.1166.840.A100

EAN:

5904312840567

Installation:

Into plaster cardboard ceiling and modular ceilings.

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Downlight

Application:

Social room, Corridor and staircase, Bathroom, Reception, Cloak room, Technical room, Security

Mounting type:

Plasterboard recessed

Technical data

Bari DLK LED 15W 1500lm 840 RF White EM1H ST

PRODUCT CODE

DI001.1166.840.A100

Copy the code

PRODUCT EAN

5904312840567

Copy the EAN code

Mechanical data

Housing material

Aluminum

Optical data

Louver/ diffuser	RF
Reflector	high gloss
UGR	20

Electrical data

Light source	LED
Luminaire power	15 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Type of driver	ON/OFF
Emergency module	EM1H ST
Motion sensor	No

Information data

Net weight	1.35 kg
Colour	White
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	1500 lm
Luminaire's luminous efficacy	100 lm/W
Color rendering index	80

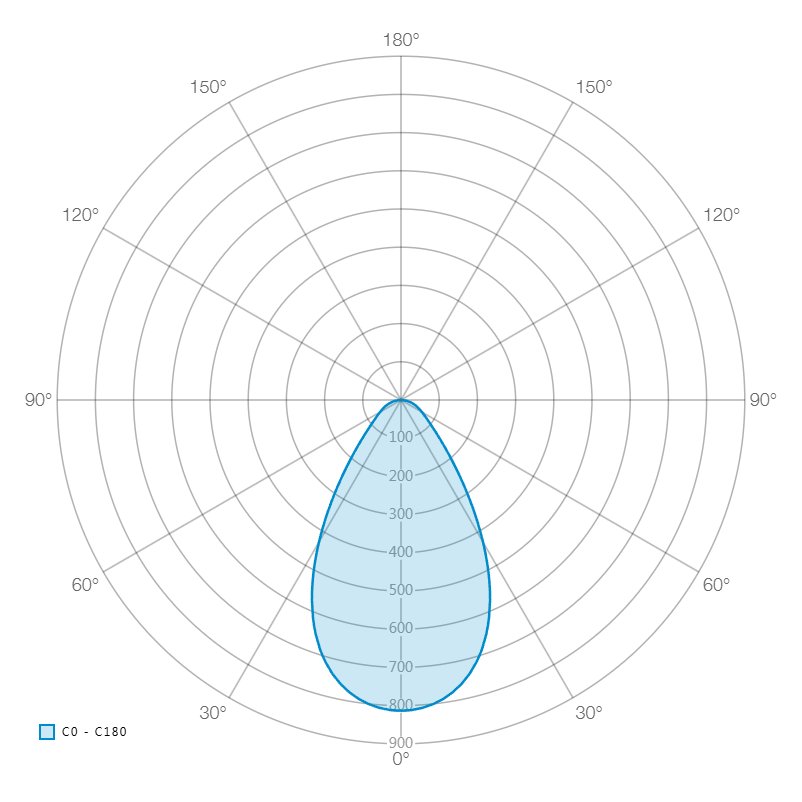

Light distribution	DI
Colour temperature	4000K
CRI & colour temperature	840

Certificates

Degree of protection (IP) /top/	IP20
Degree of protection (IP) /bottom/	IP44
Impact resistance	IK04
Class of protection	I
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Dimensions

L	W
169 mm	169 mm

L - Length

W - Width

Installation manual

377.26 KB

Download

Product card

1.05 MB

Download
