Downlight

Bari ECO DL LED

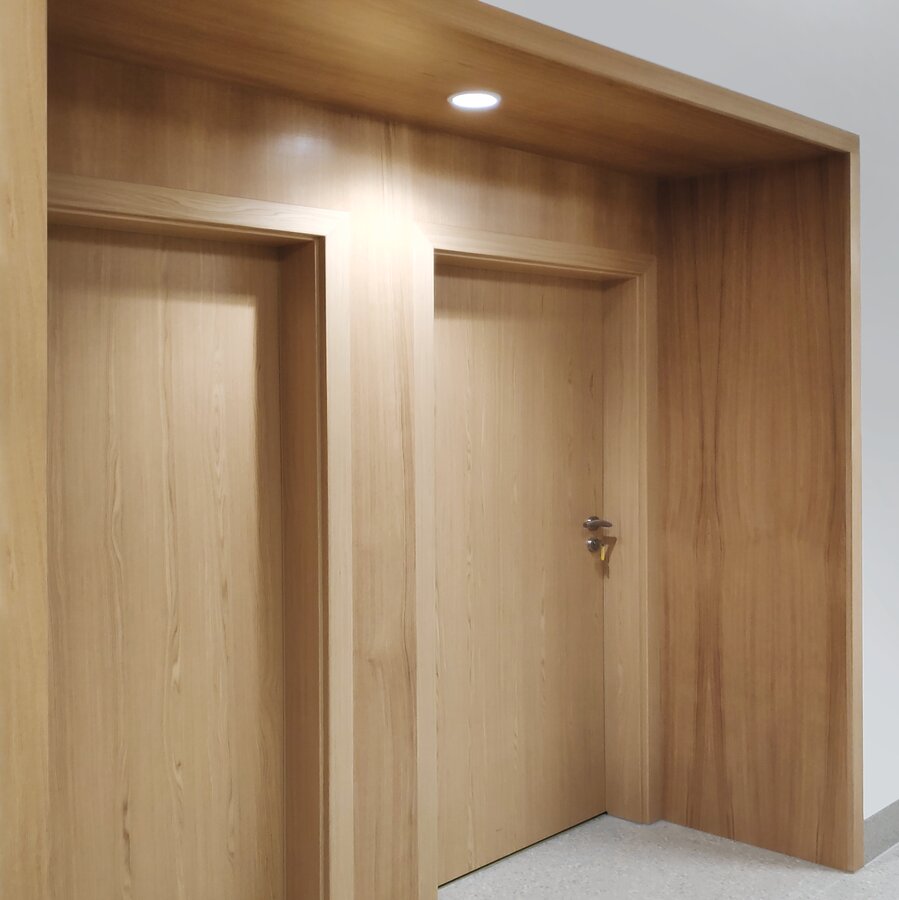

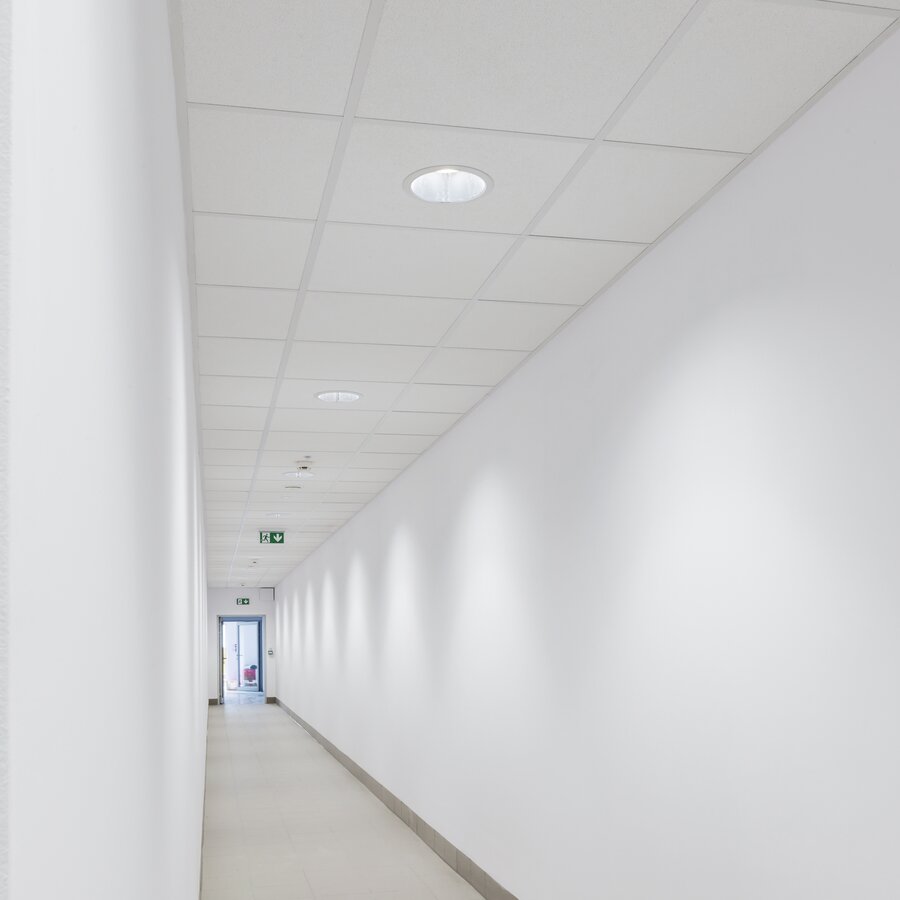

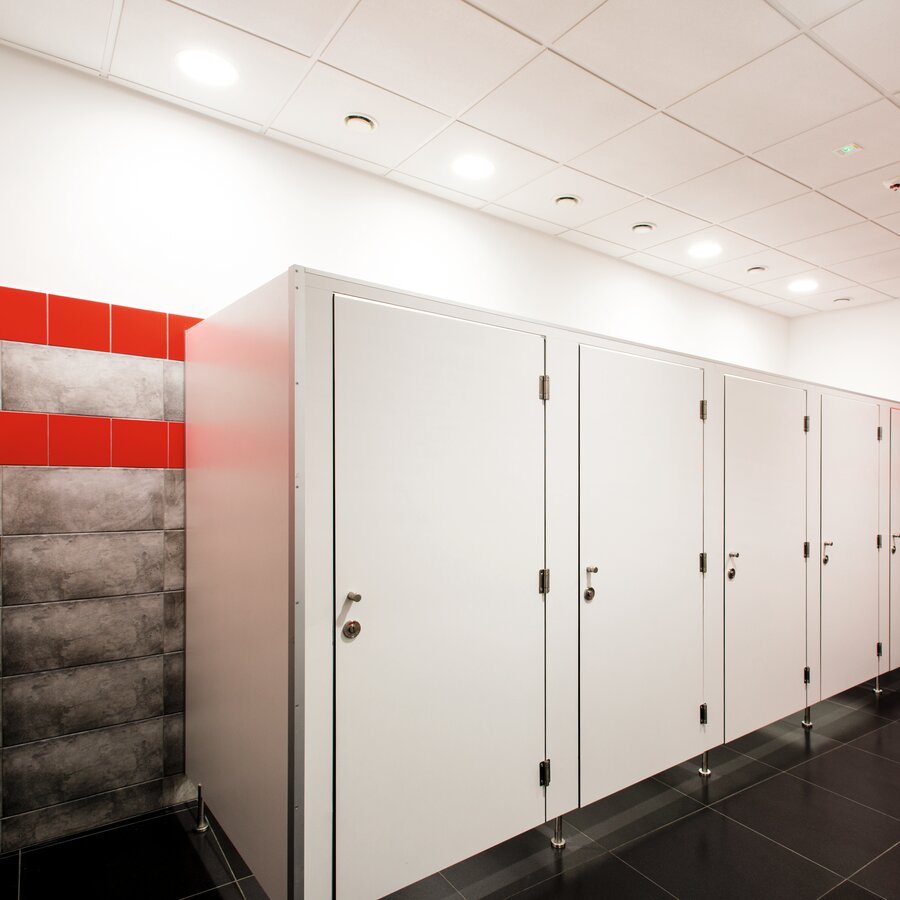

Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls.

Downlight

Bari ECO DL LED

Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls.

Go to the variant list (276)

LED

yes

yes

yes

yes

Basic information:

Materials:

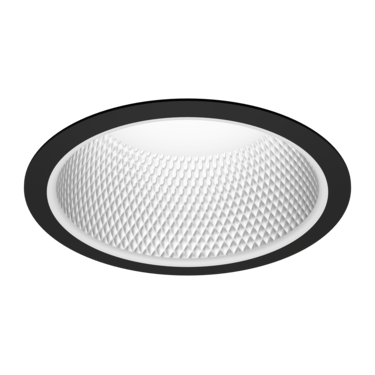

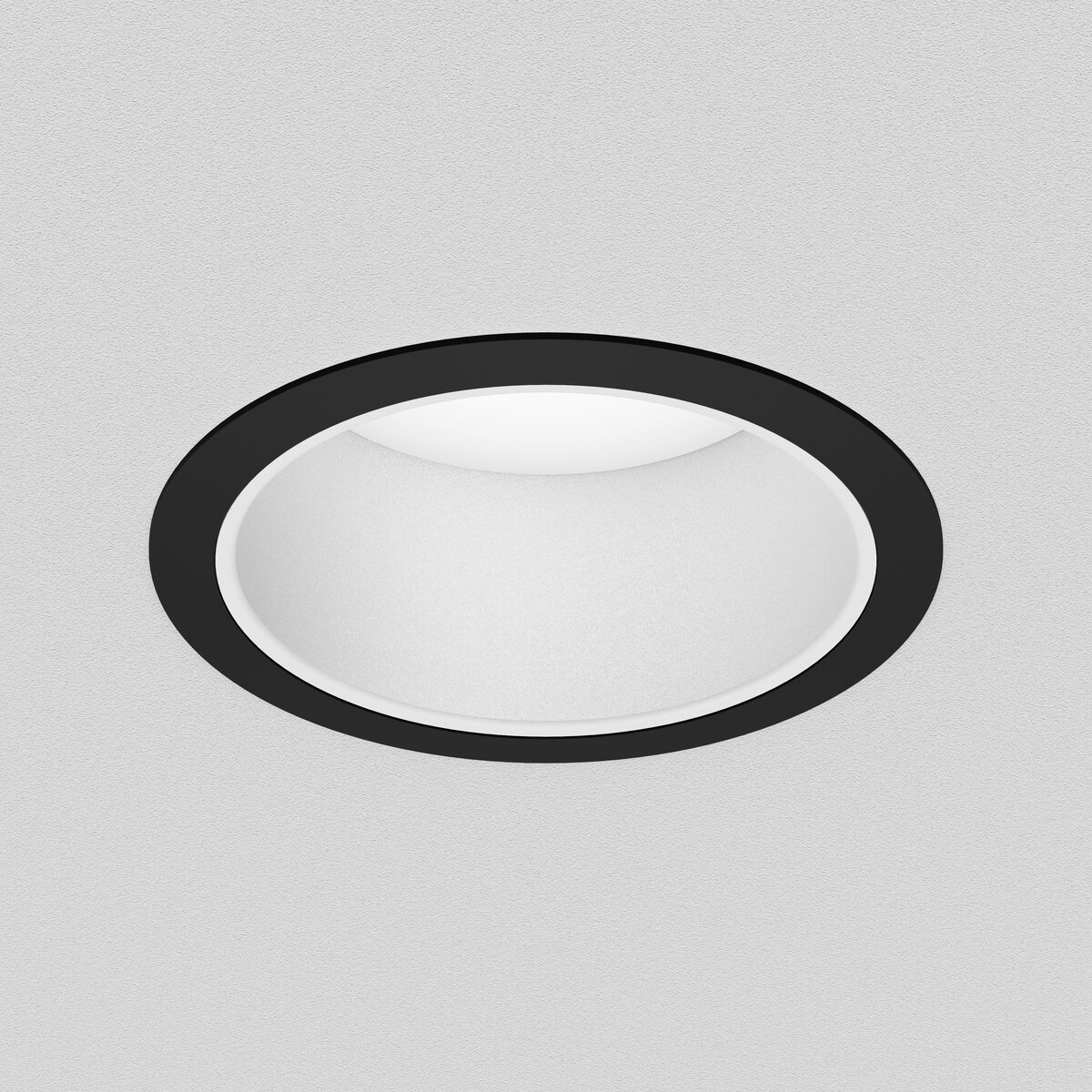

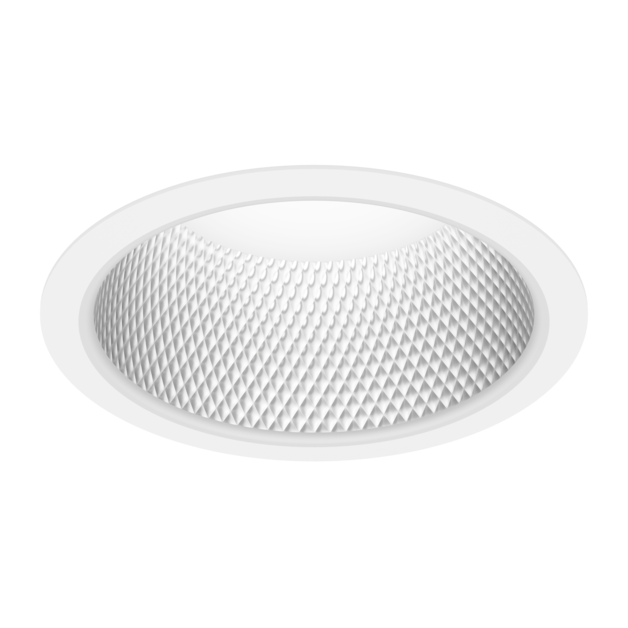

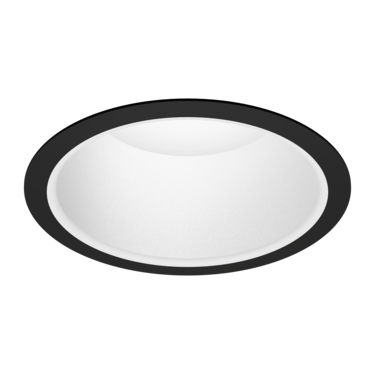

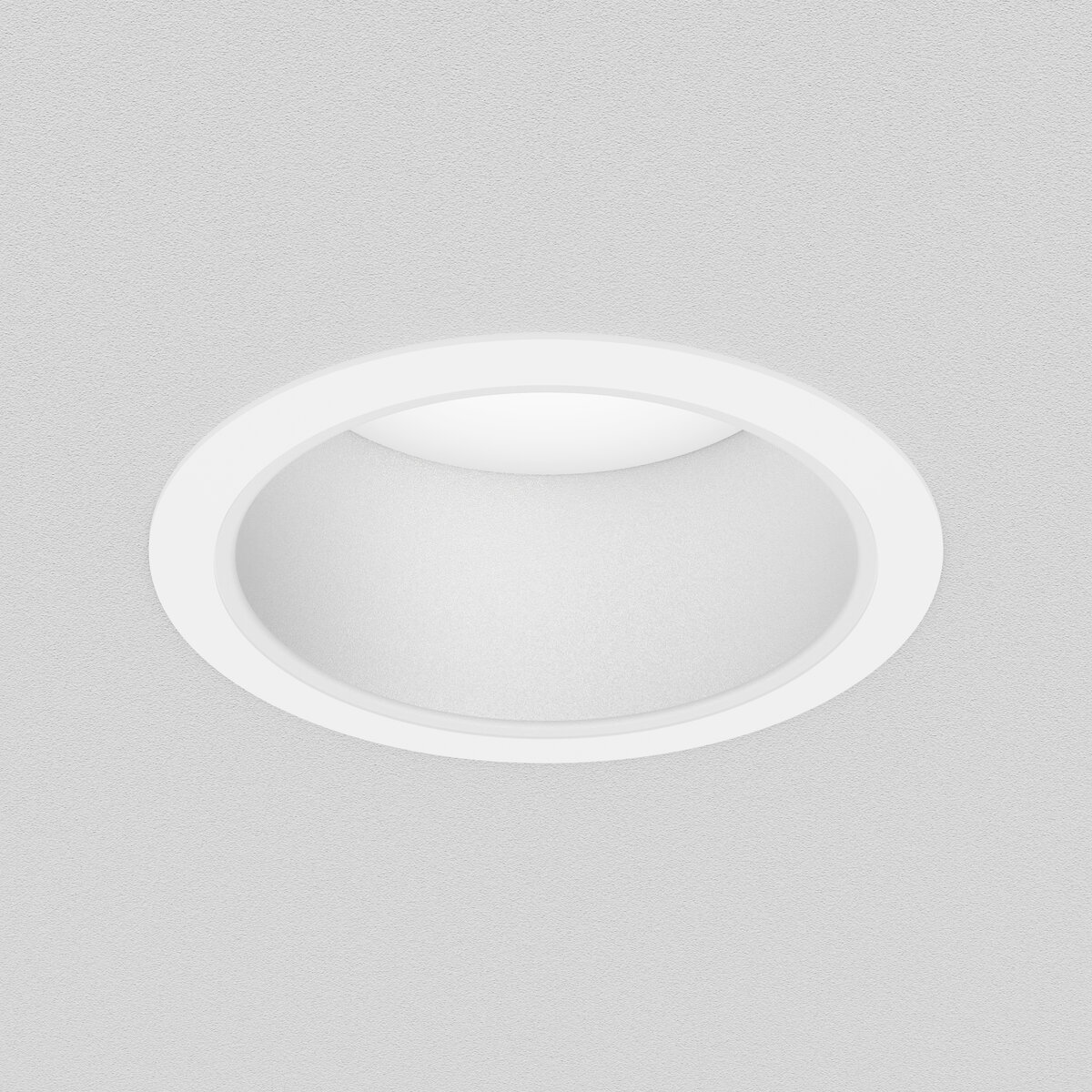

Powder painted, white aluminum ring, steel sheet body, OPAL diffuser, reflector made of polished aluminum with a purity of 99,85%.

Installation:

Into plaster cardboard and modular ceilings.

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Downlight

Application:

Cloak room, Corridor and staircase, Reception, Commercial premises

Mounting type:

Plasterboard recessed

Technical data:

Luminaire power:

10 - 28 W

Luminaire luminous flux:

750 - 2830 lm

See other technical data

Technical data

Mechanical data

Type of installation	Recessed
Housing material	Aluminum
Designed for light-line	yes

Optical data

Louver/ diffuser	RB, RF, RM, RW, mPARB
Diffuser colour	Transparent
Diffuser material	Prismatic plastic
Louver material	Plastic
Reflector	White, black, high gloss, metallic
UGR	19, 20, 21, 24, 25

Electrical data

Light source	LED
Luminaire power	10 - 28 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Type of driver	DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	0.7 - 1.45 kg
Colour	Anthracite, Black, Grey, White
Operating temperature range	-15 ... 40
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	750 - 2830 lm
Luminaire's luminous efficacy	50 - 116 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	Średniostrumieniowy
Light distribution	DI
Class of luminaire	I
Light output degradation	B10
Lumen maintenance	L80
Lifetime	54000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	86 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 930, 940

Certificates

Degree of protection (IP)	IP44
Degree of protection (IP) /top/	IP20
Degree of protection (IP) /bottom/	IP44
Impact resistance	IK07
Class of protection	I
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Type of family
DL001.1166.830.A000 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	ON/OFF	No	10W 195mm
DL001.1166.830.A040 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	ON/OFF		10W 195mm
DL001.1166.830.A100 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	ON/OFF	EM1H ST	10W 195mm
DL001.1166.830.A140 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	ON/OFF	EM1H ST	10W 195mm
DL001.1166.830.A200 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	ON/OFF	EM3H ST	10W 195mm
DL001.1166.830.A240 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	ON/OFF	EM3H ST	10W 195mm
DL001.1166.830.D000 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	DALI	No	10W 195mm
DL001.1166.830.D040 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	DALI		10W 195mm
DL001.1166.830.D100 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	DALI	EM1H ST	10W 195mm
DL001.1166.830.D140 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	DALI	EM1H ST	10W 195mm
DL001.1166.830.D200 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	DALI	EM3H ST	10W 195mm
DL001.1166.830.D240 Copy the code Open in new window	10 W	1140 lm	114 lm/W	RF	830	White	DALI	EM3H ST	10W 195mm
DL001.1166.840.A000 Copy the code Open in new window	10 W	1160 lm	116 lm/W	RF	840	White	ON/OFF	No	10W 195mm
DL001.1166.840.A040 Copy the code Open in new window	10 W	1160 lm	116 lm/W	RF	840	White	ON/OFF		10W 195mm
DL001.1166.840.A100 Copy the code Open in new window	10 W	1160 lm	116 lm/W	RF	840	White	ON/OFF	EM1H ST	10W 195mm
