Downlight
Bari ECO DLN LED 10W 1140lm 830 RF White EM1H ST
BARI ECO DLN LED extends the family of BARI ECO LED luminaires designed for ceiling mounting. Thanks to its impressive lighting performance and universal form, it can be used in most rooms inside buildings such as: offices, hotels, corridors or shopping centres. Advantages: housing and reflector made of high quality aluminum ensure a proper working temperature of LEDs, long operating time > 50 000 h, LEDs of renowned manufacturers of high luminous efficacy, possibility painting in any of RAL colors. Possibility of cooperation with motion sensors.
Image for the product family
Downlight
Bari ECO DLN LED 10W 1140lm 830 RF White EM1H ST
BARI ECO DLN LED extends the family of BARI ECO LED luminaires designed for ceiling mounting. Thanks to its impressive lighting performance and universal form, it can be used in most rooms inside buildings such as: offices, hotels, corridors or shopping centres. Advantages: housing and reflector made of high quality aluminum ensure a proper working temperature of LEDs, long operating time > 50 000 h, LEDs of renowned manufacturers of high luminous efficacy, possibility painting in any of RAL colors. Possibility of cooperation with motion sensors.
LED
ON/OFF
DI
IP20
IK07
I
yes
yes
yes
yes
Basic information:
Index:
DM001.1166.830.A100
EAN:
5904312849737
Accessories:
Bari DLN LED Suspension set 3x
Installation:
surface mounted (IP44), suspended (IP20)
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Application:
Mounting type:
Technical data
Bari ECO DLN LED 10W 1140lm 830 RF White EM1H ST
PRODUCT CODE
DM001.1166.830.A100
Copy the code
PRODUCT EAN
5904312849737
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 24
Electrical data
Light source LED
Luminaire power 10 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module EM1H ST
Motion sensor No
Information data
Net weight 2.3 kg
Colour White
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1140 lm
Luminaire's luminous efficacy 114 lm/W
Color rendering index 80

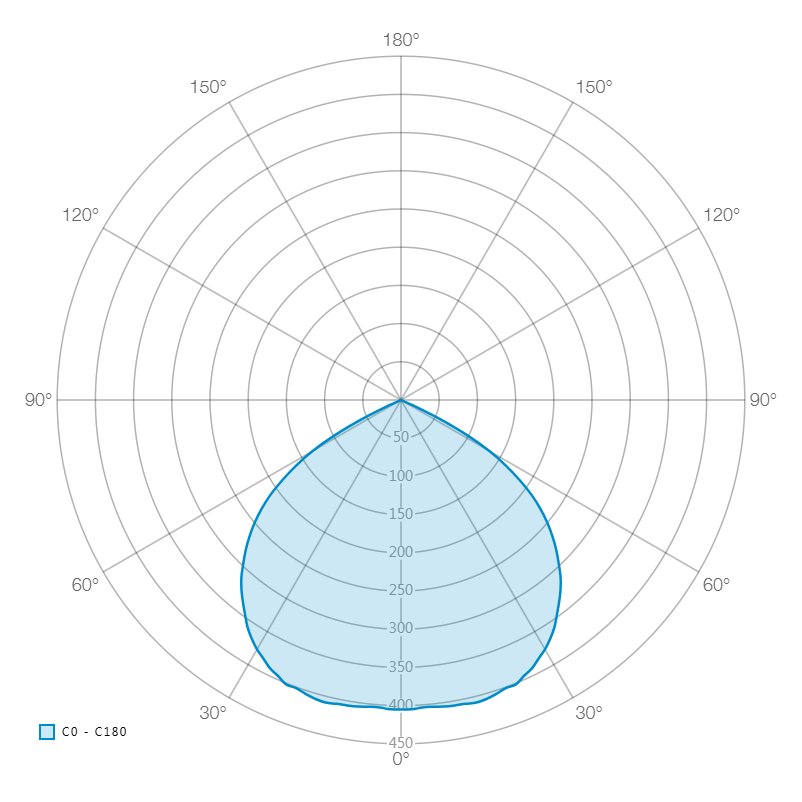

Light distribution DI
Lifetime L80B10 @25°C 100000 h
Lifetime L90B10 @25°C 64000 h
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP20
Impact resistance IK07
Class of protection I
PZH yes
CE yes
HACCP+ yes
EAC yes
Dimensions
H F
180 mm 228 mm
H - Height / Depth
F - Outer diameter
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
390.07 KB
Download
EC Declaration of conformity
Download
Pobierz wszystkie pliki
