Technical data Download Accessories
Downlight

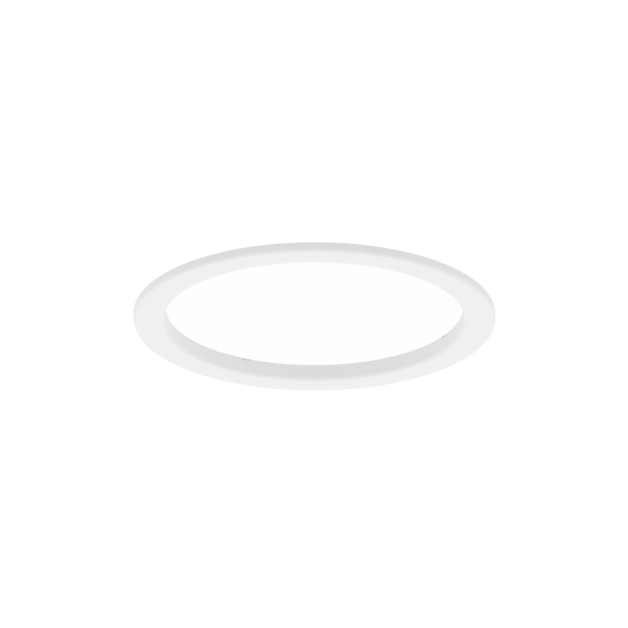

Bari Q LED 155 11W 1480lm 830 OPAL White
Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls. For suspended Bari Q LED with central elecrical suspension 3x you need to use surface housing IP44. Tolerance of luminance power and luminous flux: +/-10%
LED
DI
IP20
IP44
II
yes
yes
yes
yes
Basic information:
Index:
EU001.1111.830.A000
EAN:
5904312962221
Accessories:
BARI Q LED Frame for surface mounting IP44, Bari Q LED Suspension set central 3x
Installation:
Into plaster cardboard and modular ceilings.
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Downlight
Application:
Social room, Corridor and staircase, Bathroom, Reception, Cloak room, Technical room, Security
Mounting type:
Pendant, Ceiling mounted, Plasterboard recessed
Technical data
Bari Q LED 155 11W 1480lm 830 OPAL White
PRODUCT CODE
EU001.1111.830.A000
Copy the code
PRODUCT EAN
5904312962221
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 25
Electrical data
Light source LED
Luminaire power 11 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 0.28 kg
Colour White
Power and luminous flux tolerance +/-10%
Info 155mm
Light data
Luminaire luminous flux 1480 lm
Luminaire's luminous efficacy 135 lm/W
Light colour White
Color rendering index 80
Light distribution DI
Light output degradation B10
Lumen maintenance L70
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP44
Impact resistance IK06
Class of protection II
Light source protection yes
PZH yes
CE yes
HACCP+ yes
EAC yes
Dimensions
H F
40 mm 155 mm
H - Height / Depth
F - Outer diameter
Download
Product card
Download
Installation manual
419.06 KB
Download
EC Declaration of conformity
264.9 KB
Download
Photometric file
892 B
Download
Pobierz wszystkie pliki
Structural elements
Accessories
BARI Q LED Frame for surface mounting IP44
Electric elements
Accessories
Bari Q LED Suspension set central 3x
