Bari Q LED 225 26W 3590lm 840 OPAL White WI

Downlight

Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls. For suspended Bari Q LED with central elecrical suspension 3x you need to use surface housing IP44. Tolerance of luminance power and luminous flux: +/-10%

Downlight

Bari Q LED 225 26W 3590lm 840 OPAL White WI

Basic information:

Index:

EU005.1111.840.A040

EAN:

5904349220837

Accessories:

BARI Q LED Frame for surface mounting IP44, Bari Q 155 Mask Panel, Bari Q LED Suspension set central 3x, Bari Q reduction, Bari reduction

Installation:

Into plaster cardboard and modular ceilings.

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Downlight

Application:

Social room, Corridor and staircase, Bathroom, Reception, Cloak room, Technical room, Security

Mounting type:

Pendant, Ceiling mounted, Plasterboard recessed

H	F
40 mm	225 mm

40 mm

225 mm

Housing material	Aluminum
Designed for light-line	yes

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic

Light source	LED
Luminaire power	26 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	WI
Type of driver	ON/OFF
Emergency module	No
Motion sensor	No

Net weight	0.5 kg
Colour	White
Power and luminous flux tolerance	+/-10%

Luminaire luminous flux	3590 lm
Luminaire's luminous efficacy	138 lm/W
Color rendering index	80

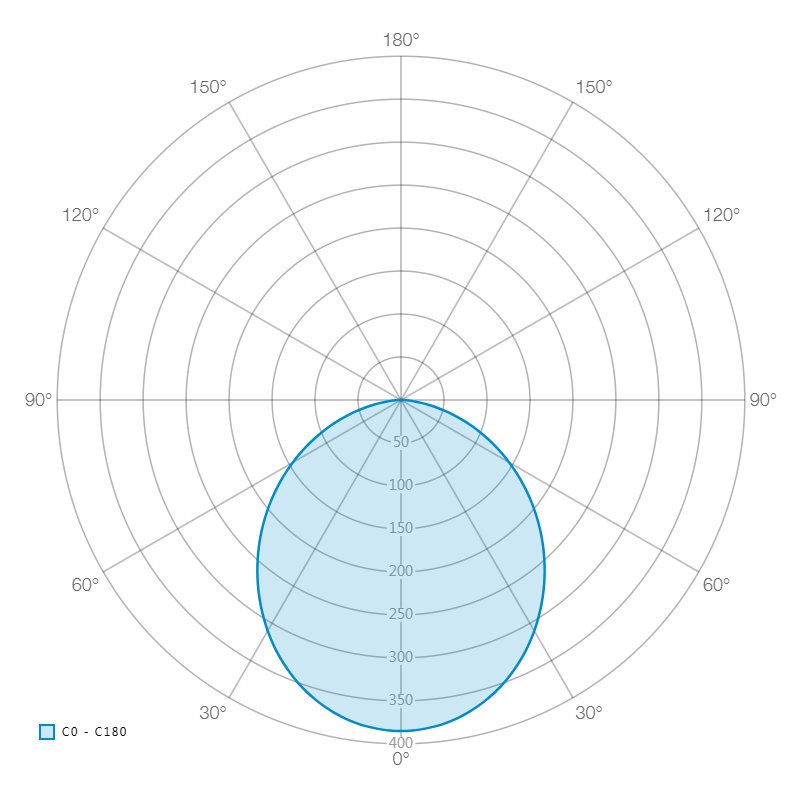

Light distribution	DI
Colour temperature	4000K
CRI & colour temperature	840

Degree of protection (IP) /top/	IP20
Degree of protection (IP) /bottom/	IP44
Class of protection	II
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes
