Downlight
Bari Q Square LED 225x225 26W 2570-3450lm 830 White
Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls. For suspended Bari Q LED with central elecrical suspension 3x you need to use surface housing IP44.
Downlight
Bari Q Square LED 225x225 26W 2570-3450lm 830 White
Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls. For suspended Bari Q LED with central elecrical suspension 3x you need to use surface housing IP44.
LED
ON/OFF
IP20
IP44
II
yes
yes
Basic information:
Index:
HY002.1111.830.A000
EAN:
5904349241085
Accessories:
Bari Q Square LED Casing IP44, Bari Q LED Suspension set central 3x
Installation:
Into plaster cardboard and modular ceilings.
Power:
220 ... 240  V
Technical data
Bari Q Square LED 225x225 26W 2570-3450lm 830 White
PRODUCT CODE
HY002.1111.830.A000
Copy the code
PRODUCT EAN
5904349241085
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
Electrical data
Light source LED
Luminaire power 26 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 0.8 kg
Colour White
Power and luminous flux tolerance +/-10%

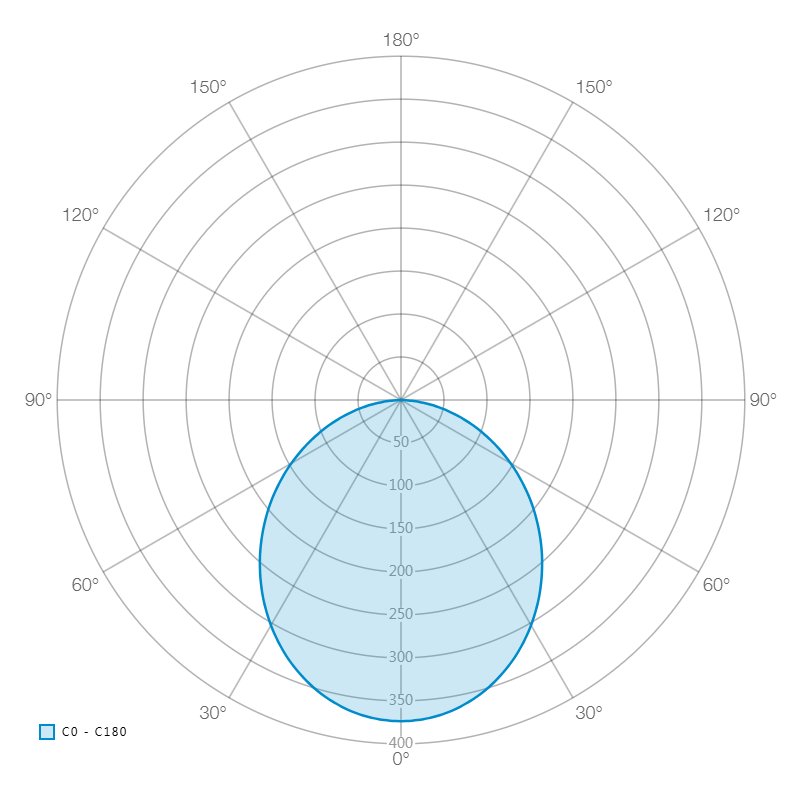

Light data
Minimum luminous flux 2570 lm
Maximum luminous flux 3450 lm
Color rendering index 80
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP44
Class of protection II
Light source protection yes
CE yes
HACCP+ yes
Dimensions
L W H
225 mm 225 mm 38 mm
L - Length
W - Width
H - Height / Depth
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
640.27 KB
Download
EC Declaration of conformity
Download
Photometric file
1.49 KB
Download
Pobierz wszystkie pliki
