Technical data Download Accessories
Downlight

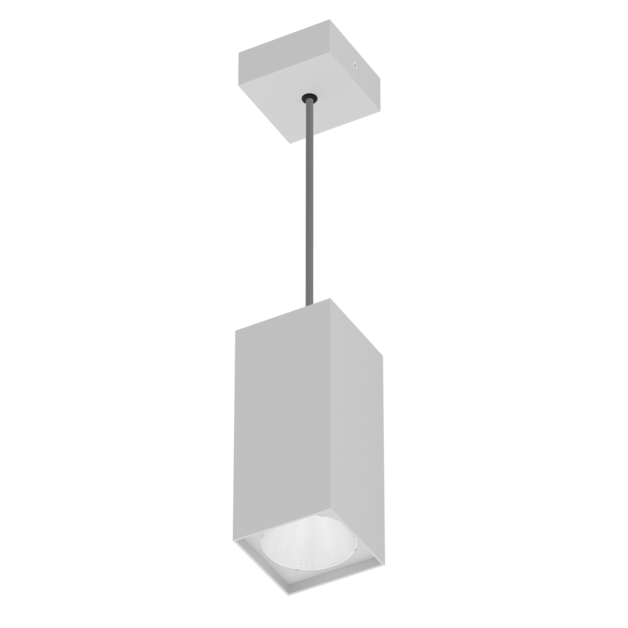

Cubic LED 30° 14W 1650lm 840 RF Grey DALI
Suspended LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour. Electric suspension in set.
Image for the product family
Downlight
Cubic LED 30° 14W 1650lm 840 RF Grey DALI
Suspended LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour. Electric suspension in set.
LED
DI
IP20
I
yes
yes
yes
Basic information:
Index:
EF001.2266.840.D000
EAN:
5904312851860
Accessories:
Cubic LED Blank infill
Installation:
suspended (suspension in set)
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Downlight
Application:
Cloak room, Corridor and staircase, Reception, Commercial premises
Mounting type:
Pendant
Technical data
Cubic LED 30° 14W 1650lm 840 RF Grey DALI
PRODUCT CODE
EF001.2266.840.D000
Copy the code
PRODUCT EAN
5904312851860
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 19
Electrical data
Light source LED
Luminaire power 14 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver DALI
Emergency module No
Motion sensor No
Information data
Net weight 0.9 kg
Colour Grey
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1650 lm
Luminaire's luminous efficacy 118 lm/W
Color rendering index 80
Light distribution DI
Beam angle 30°
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP20
Impact resistance IK03
Class of protection I
CE yes
HACCP+ yes
EAC yes
Dimensions
L W
200 mm 85 mm
L - Length
W - Width
Download
Installation manual
580.67 KB
Download
Product card
Download
Pobierz wszystkie pliki
Structural elements
Accessories
Cubic LED Blank infill
