Downlight

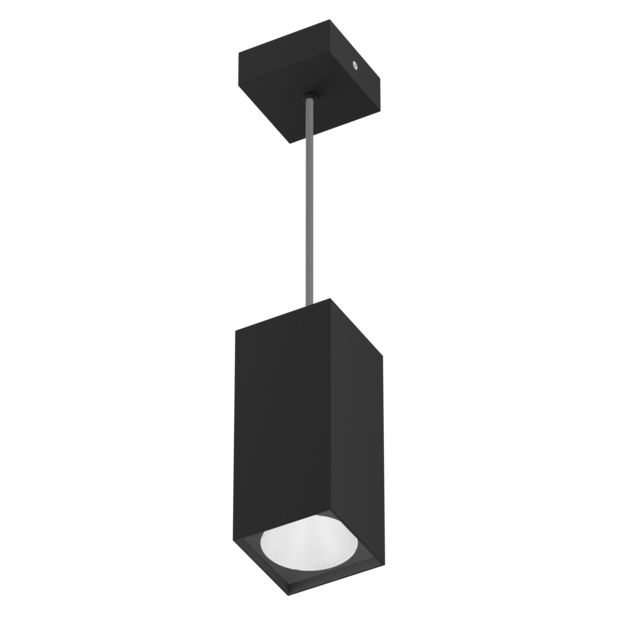

Cubic LED 30° 14W 1650lm 840 RF Black
Suspended LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour. Electric suspension in set.
Downlight
Cubic LED 30° 14W 1650lm 840 RF Black
Suspended LED luminaire with subtle design for representative rooms. Possibility of painting in any RAL colour. Electric suspension in set.
LED
DI
IP20
I
yes
yes
yes
Basic information:
Index:
EF001.3366.840.A000
EAN:
5904312851839
Accessories:
Cubic LED Blank infill
Installation:
suspended (suspension in set)
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Downlight
Application:
Cloak room, Corridor and staircase, Reception, Commercial premises
Mounting type:
Pendant
Technical data Download Accessories
Technical data
Cubic LED 30° 14W 1650lm 840 RF Black
PRODUCT CODE
EF001.3366.840.A000
Copy the code
PRODUCT EAN
5904312851839
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser RF
Reflector high gloss
UGR 19
Electrical data
Light source LED
Luminaire power 14 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 0.9 kg
Colour Black
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1650 lm
Luminaire's luminous efficacy 118 lm/W
Color rendering index 80
Light distribution DI
Beam angle 30°
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP20
Impact resistance IK03
Class of protection I
CE yes
HACCP+ yes
EAC yes
Dimensions
L W
200 mm 85 mm
L - Length
W - Width
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
580.67 KB
Download
EC Declaration of conformity
Download
Pobierz wszystkie pliki
Structural elements
Accessories
Cubic LED Blank infill
