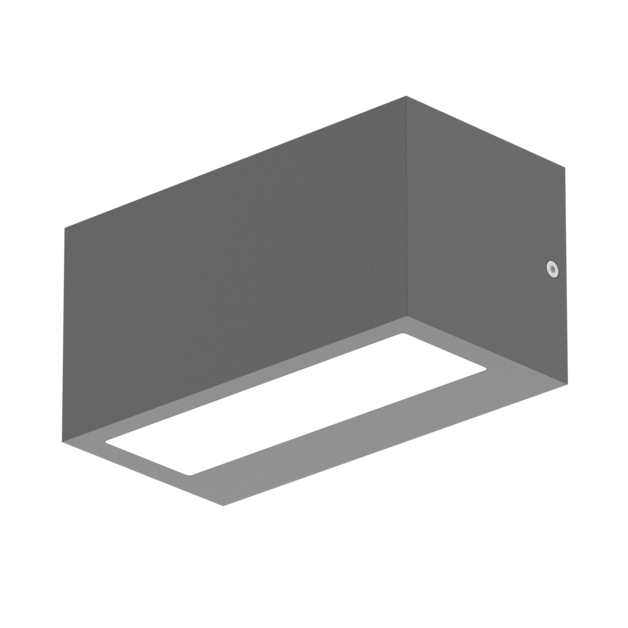

Cubic Q Wall IP65 E14

Bracket for E14 LED lamps. Luminaire with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.

Architectural

Cubic Q Wall IP65 E14

Bracket for E14 LED lamps. Luminaire with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.

Go to the variant list (1)

IP65

IK06

yes

yes

Basic information:

Materials:

Electrostatically painted aluminium housing (standard colour: anthracite), OPAL diffuser made of plastic. Recommended use of LED bulbs adapted to 230V power supply. Light source not included.

Installation:

Wall mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Architectural

Application:

Apartment building environment, Building environment, Arcade, Facade

Mounting type:

Wall mounted

Technical data:

Lamp holder:

E14

Length:

200 mm

Width:

100 mm

See other technical data

Technical data

Mechanical data

Housing material

Aluminum

Optical data

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic

Electrical data

Light source	E14
Lamp holder	E14
Voltage rating	220 ... 240 V
Through wiring	No
Emergency module	option
Motion sensor	option

Information data

Net weight	0.8 kg
Colour	Anthracite

Certificates

Degree of protection (IP)	IP65
Impact resistance	IK06
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes

Product variants

✕

Search

Filtry

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Parametry

Index	Oprawka	Louver/ diffuser [Optical system]	Light distribution	Colour	Type of family
EJ013.4411.000.0000 Copy the code Open in new window	E14	OPAL		Anthracite	1x E14

Displaying items: 1 of 1

of 1

per page

Family datasheet

Download

Family datasheet extended

Download

Installation manual

348.69 KB

Download

EC Declaration of conformity

Download

Pobierz wszystkie pliki
