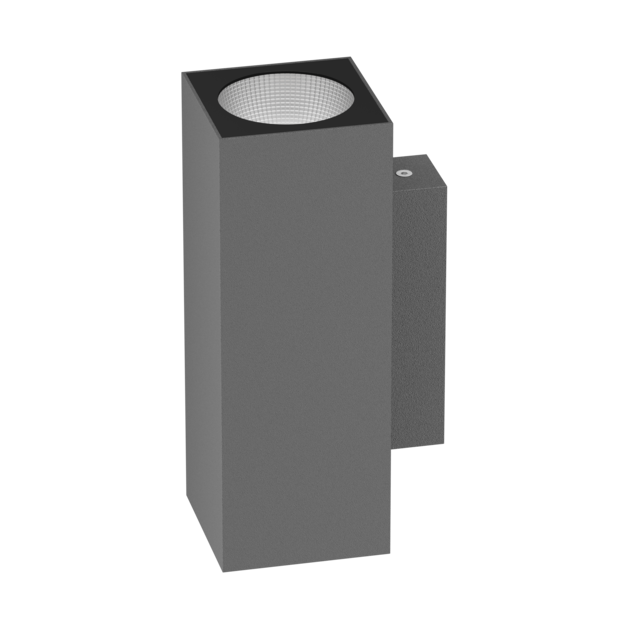

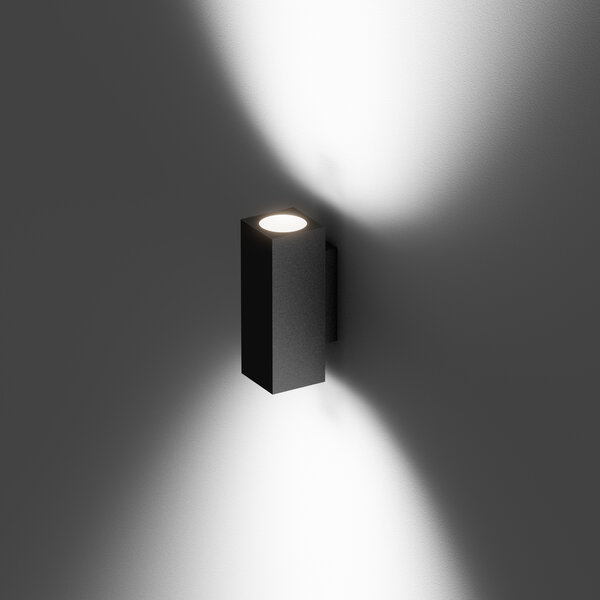

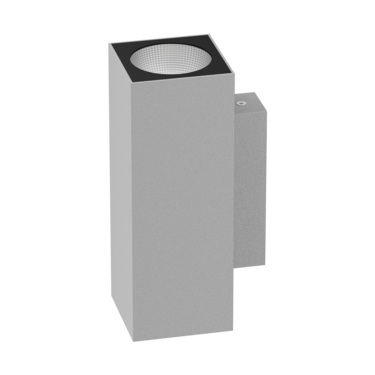

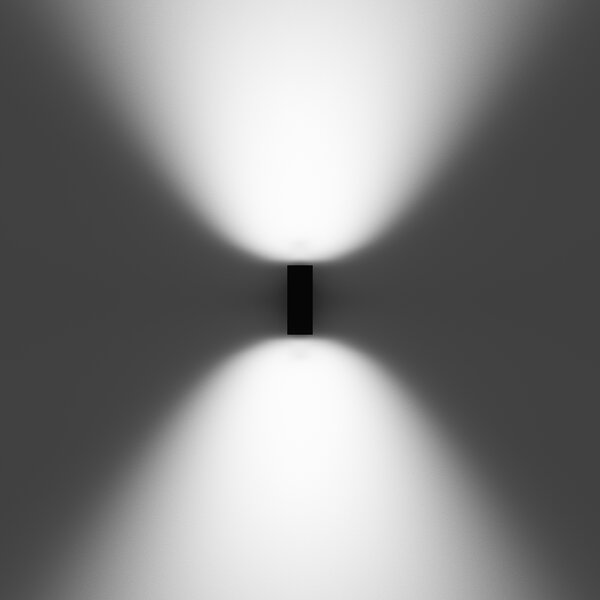

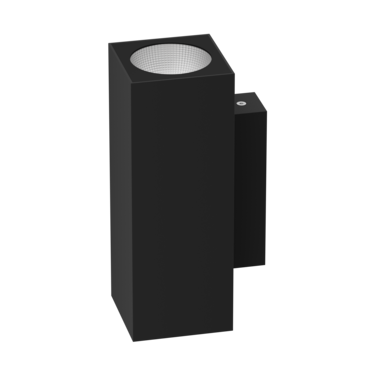

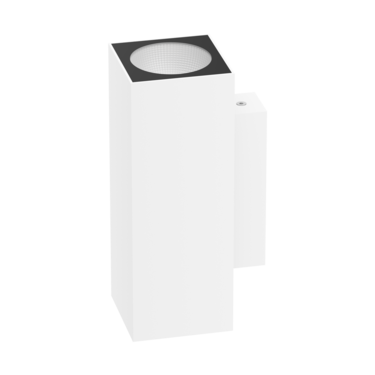

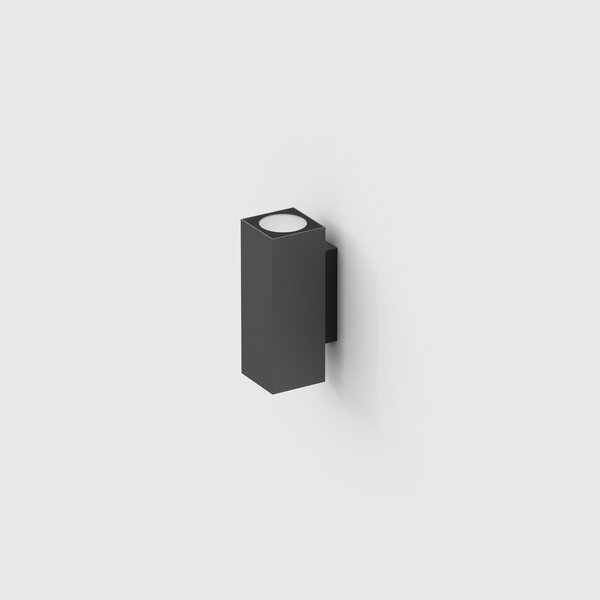

LED bracket with subtle design for illumination of covered facades and representative rooms. Possibility of painting in any RAL colour.
Type of installation | Naścienny |
Housing material | Aluminum |
Louver/ diffuser | RF |
Reflector | high gloss |
UGR | 13, 16, 20 |
Light source | LED |
Luminaire power | 15 - 20 W |
Number of light sources | 2 |
Type of equipment | AC |
Voltage rating | 220 ... 240 V |
Through wiring | No |
Light source included | yes |
Type of driver | DALI, ON/OFF |
Emergency module | opcjonalnie |
Motion sensor | opcjonalnie |
Net weight | 1.4 kg |
Colour | Anthracite, Black, Grey, White |
Operating temperature range | -20 ... 40 |
Power and luminous flux tolerance | +/-10% |
Info | DI-1100m / IN-1100lm, DI-1130lm / IN-1130lm, DI-890lm / IN-910m, DI-910lm / IN-910lm, DI-920lm / IN-930lm, DI-930lm / IN-930lm |
Luminaire luminous flux | 1800 - 2260 lm |
Luminaire's luminous efficacy | 110 - 124 lm/W |
Luminaire's luminous efficiency | 73 |
Light colour | White |
Color rendering index | 80 |
Light distribution | DI |
Class of luminaire | I |
Beam angle | 15 °, 50 °, 70 ° |
Light output degradation | B10 |
Lumen maintenance | L90 |
MacAdam | SDCM 3 |
Lamp Lumen Maintenance Factor (after 60 000h) | 91 % |
Colour temperature | 3000K, 4000K |
CRI & colour temperature | 830, 840 |
Degree of protection (IP) | IP65 |
Impact resistance | IK06 |
Class of protection | I |
Light source protection | yes |
CE | yes |
HACCP+ | yes |
EAC | yes |
