Fibra IV LED

Hermetic lighting luminaire for LED sources. IP66protection degree.

Industrial

Fibra IV LED

Hermetic lighting luminaire for LED sources. IP66protection degree.

Go to the variant list (232)

LED

IP66

IK10

yes

yes

yes

yes

yes

yes

Basic information:

Materials:

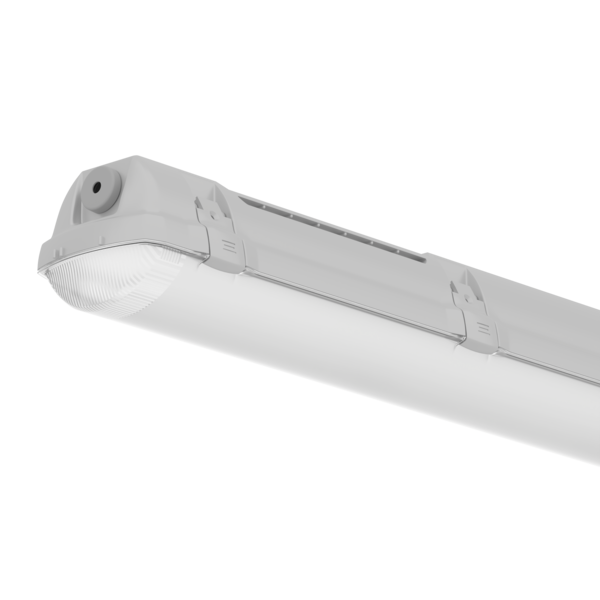

Base made of impact proof polycarbonate, OPAL diffuser, UV stabilized, polycarbonate PC diffuser, fiber glass reinforced clips.

Accessories:

Stainless steel clips, protective grid

Installation:

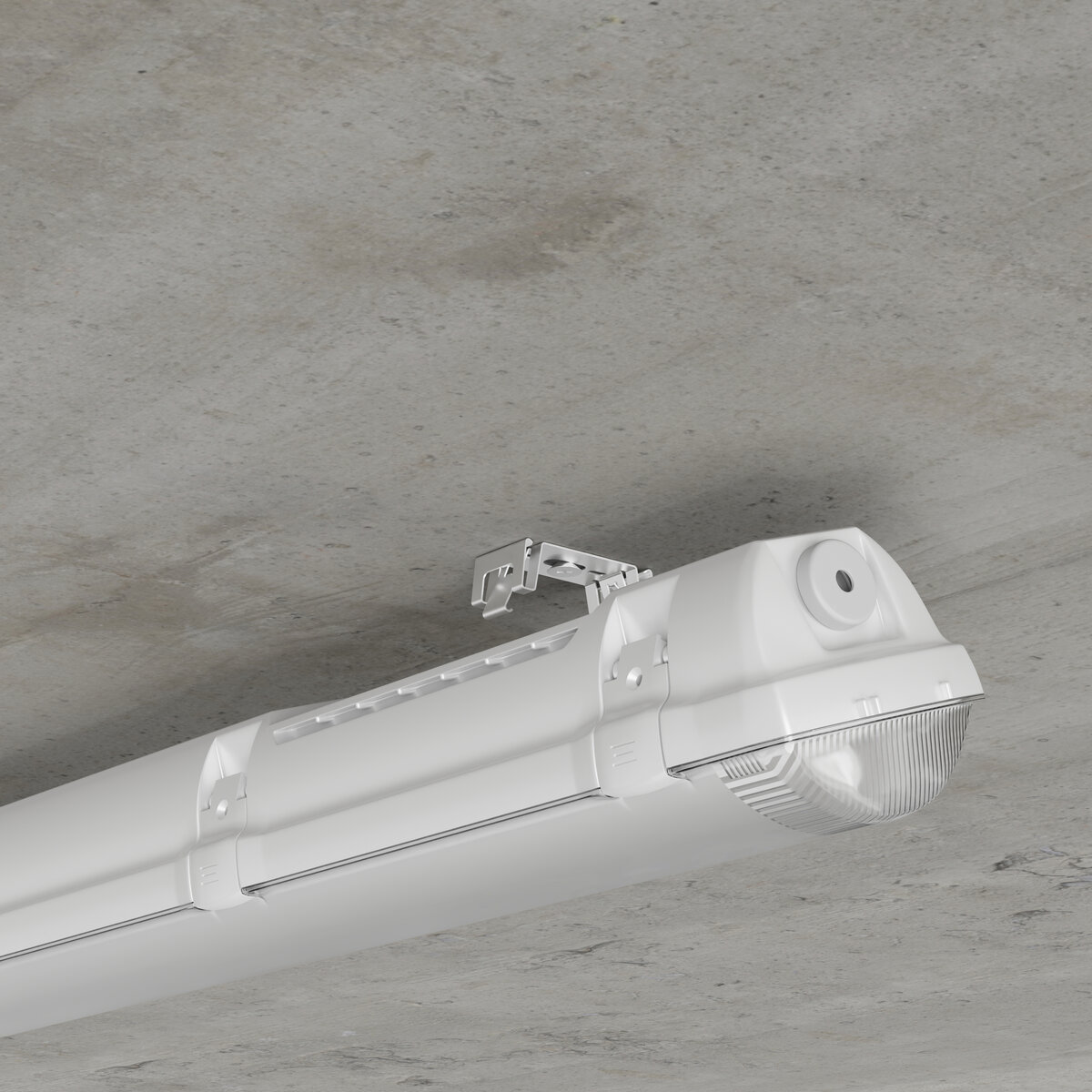

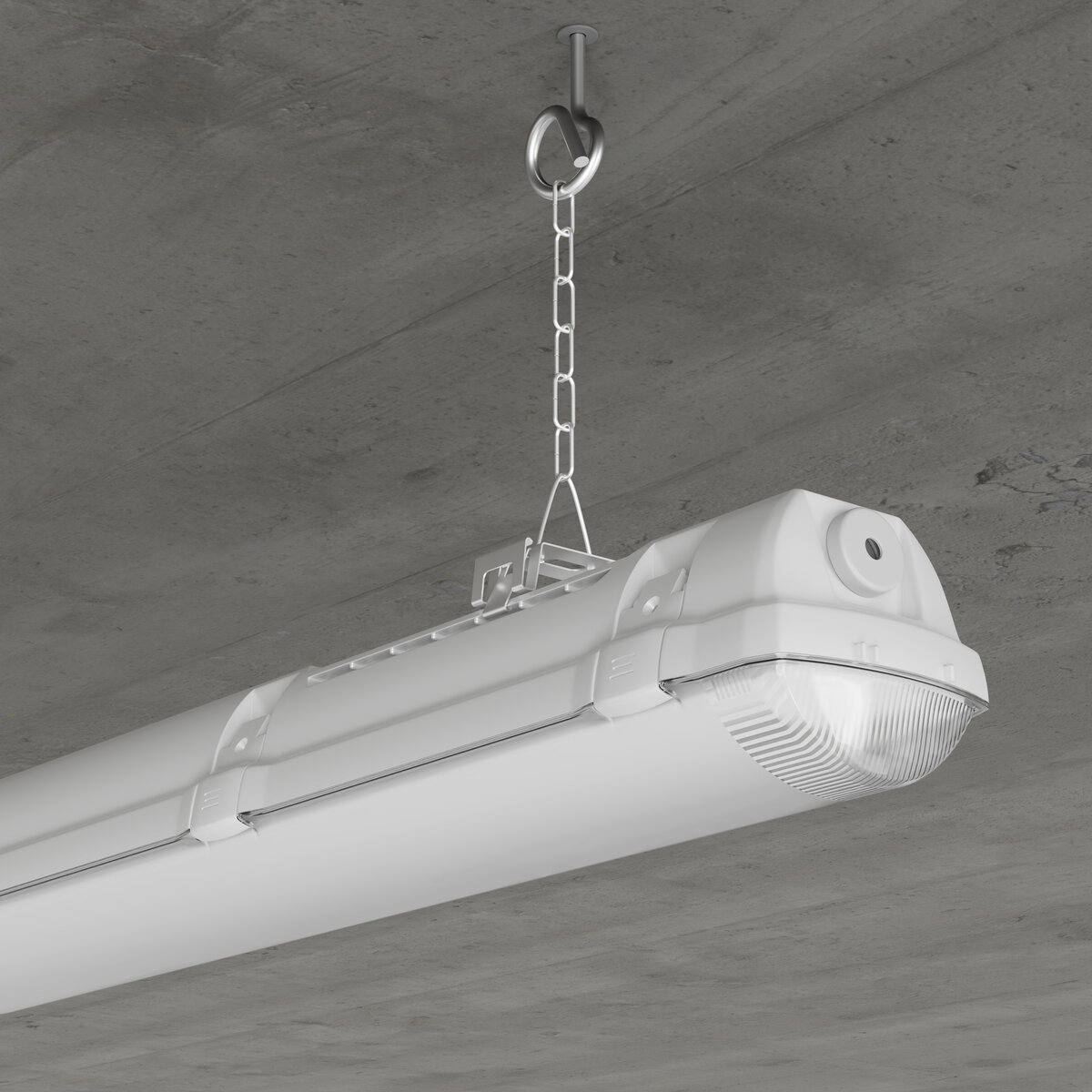

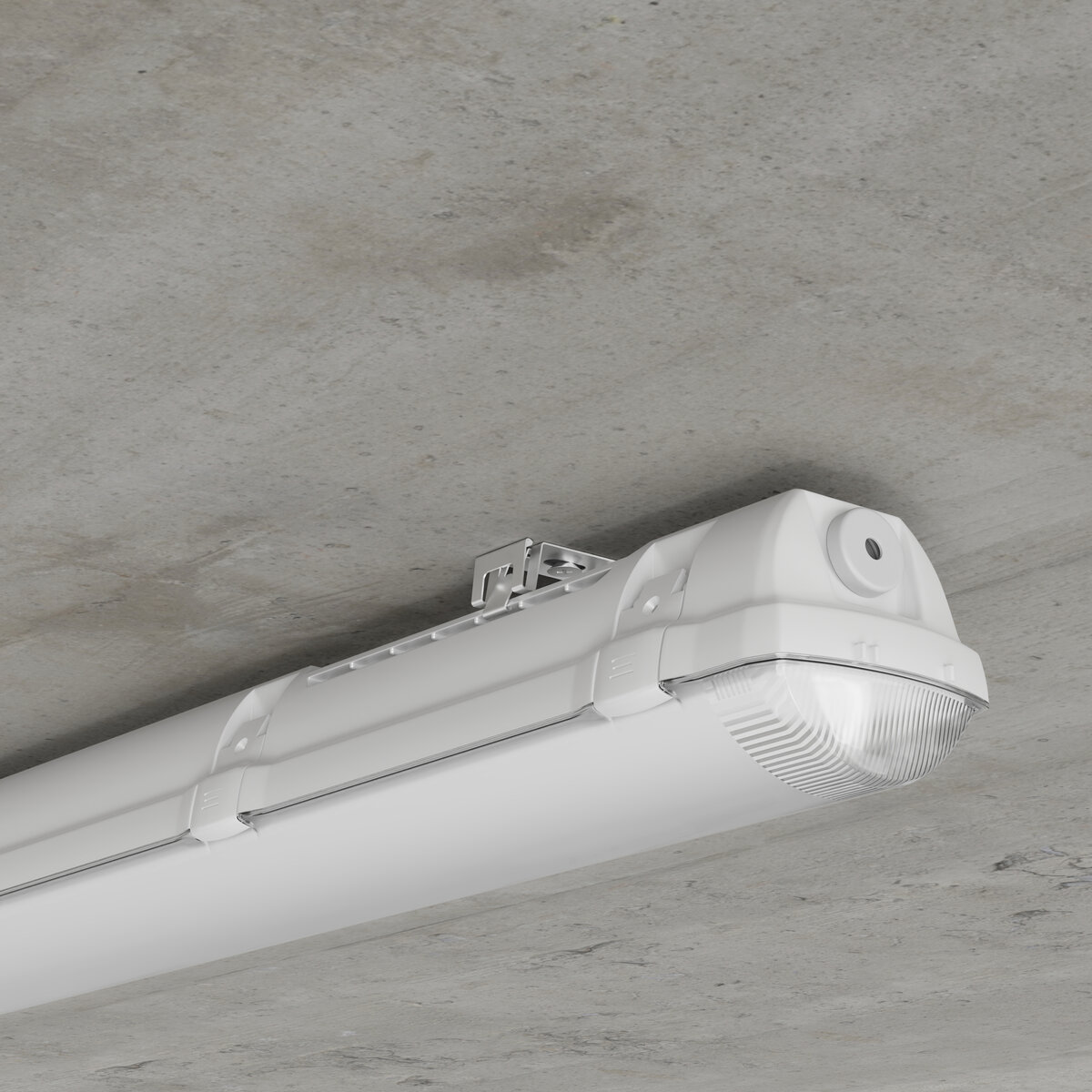

Surface mounted or suspended.

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Industrial

Application:

Laboratory, Garage, Technical room, Security, Social room, Sport facilities, Parking and garage, Arcade, Car park, Sport field

Mounting type:

Wall mounted, Pendant

Technical data:

Luminaire power:

12 - 82 W

Luminaire luminous flux:

1970 - 14220 lm

Length:

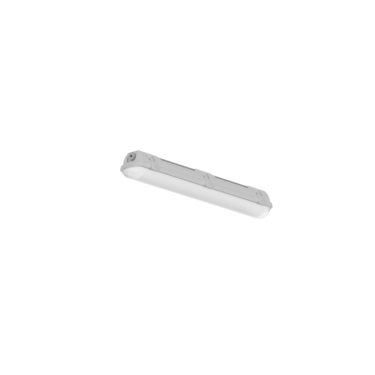

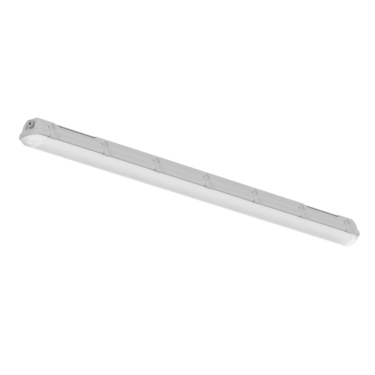

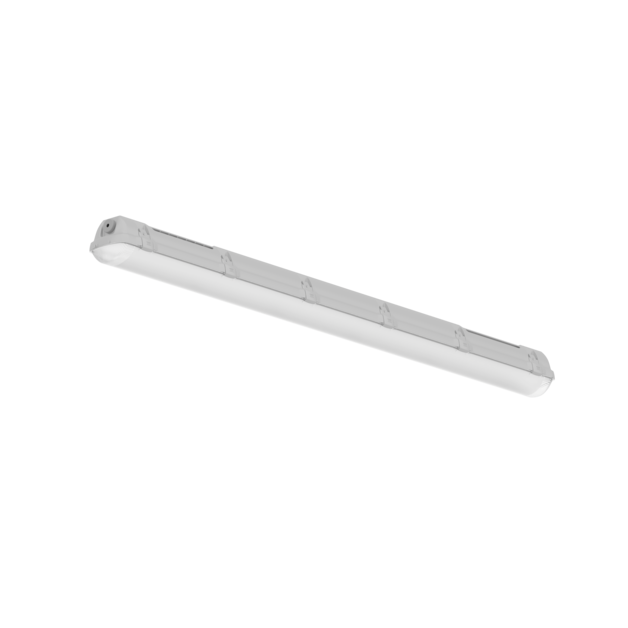

615 mm, 1175 mm, 1455 mm

See other technical data

Description of the product's family

FIBRA IV LED posiada certyfikat ENEC wydany przez niezależne laboratoium badawcze nr 30.

Łatwy montaż oprawy. Uchwyty mocujące zaklikiwane w kilku pozycjach,
dzięki czemu można dostosować rozstaw szerokości mocowań do sufitu

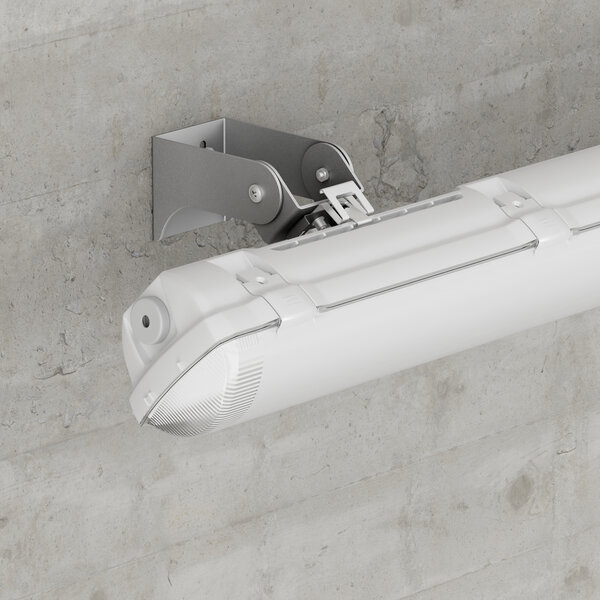

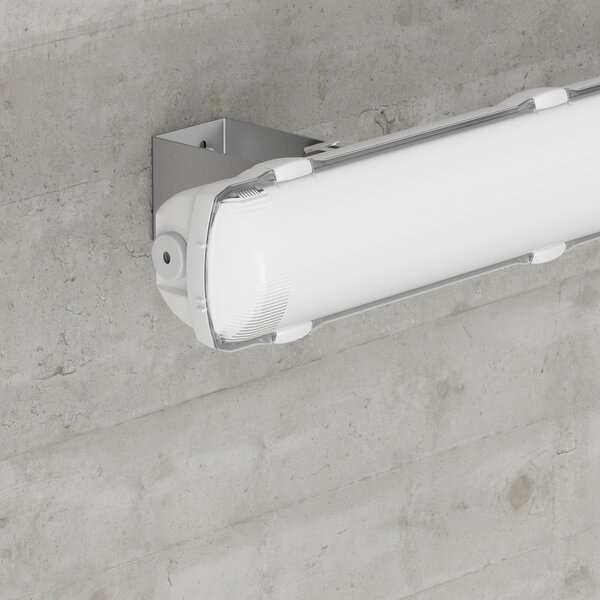

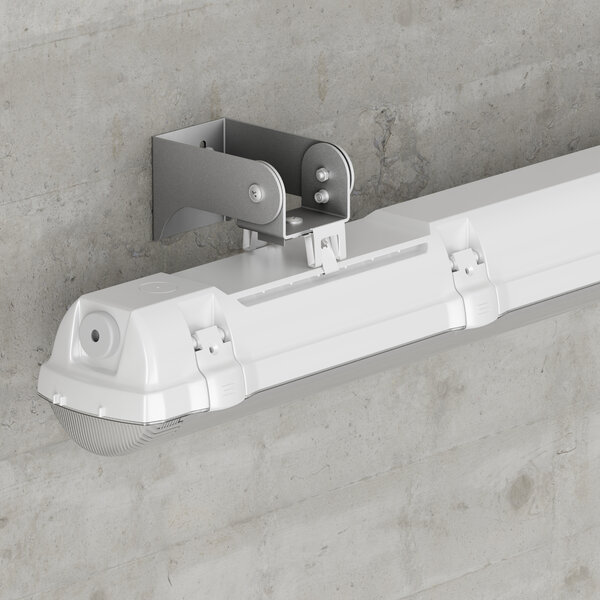

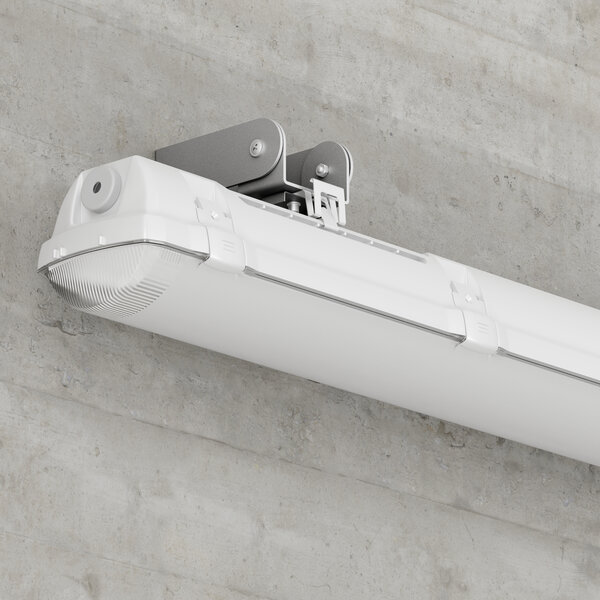

Jako akcesorium dostępne są uchwyty ścienne pozwalające na ustawienie kąta wychylenia w zakresie 0 - 90 stopni

Technical data

Mechanical data

Type of installation	Universal
Housing material	Plastic
Designed for light-line	yes

Optical data

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic
UGR	21, 22, 23, 24, 25

Electrical data

Light source	LED
Luminaire power	12 - 82 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Power factor	0.96
Type of driver	DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	0.9 - 2.5 kg
Colour	Grey
Power and luminous flux tolerance	+/-10%
Info	1175 mm, 1455 mm, 615 mm

Light data

Luminaire luminous flux	1970 - 14220 lm
Luminaire's luminous efficacy	151 - 189 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	DI
Class of luminaire	I
Light output degradation	B10, B50
Lumen maintenance	L80
Lifetime	100000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	85 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 940

Certificates

Degree of protection (IP)	IP66
Impact resistance	IK10
Class of protection	I
Light source protection	yes
PZH	yes
CE	yes
CNBOP	yes
ENEC	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	CRI & colour temperature	Colour	Type of driver	Emergency module	Through wiring	Motion sensor	Type of family
HB001.2211.830.A000 Copy the code Open in new window	12 W	1970 lm	164 lm/W	830	Grey	ON/OFF	No	No	No	615x98 12W
HB001.2211.830.D000 Copy the code Open in new window	12 W	1970 lm	164 lm/W	830	Grey	DALI	No	No	No	615x98 12W
HB001.2211.840.A000 Copy the code Open in new window	12 W	2065 lm	172 lm/W	840	Grey	ON/OFF	No	No	No	615x98 12W
HB001.2211.840.D000 Copy the code Open in new window	12 W	2065 lm	172 lm/W	840	Grey	DALI	No	No	No	615x98 12W
HB002.2211.830.A000 Copy the code Open in new window	16 W	2695 lm	168 lm/W	830	Grey	ON/OFF	No	No	No	615x98 16W
HB002.2211.830.D000 Copy the code Open in new window	16 W	2695 lm	168 lm/W	830	Grey	DALI	No	No	No	615x98 16W
HB002.2211.840.A000 Copy the code Open in new window	16 W	2825 lm	177 lm/W	840	Grey	ON/OFF	No	No	No	615x98 16W
HB002.2211.840.A020 Copy the code Open in new window	16 W	2825 lm	177 lm/W	840	Grey	ON/OFF	No	TH5	No	615x98 16W
HB002.2211.840.D000 Copy the code Open in new window	16 W	2825 lm	177 lm/W	840	Grey	DALI	No	No	No	615x98 16W
HB003.2211.830.A000 Copy the code Open in new window	28 W	4690 lm	168 lm/W	830	Grey	ON/OFF	No	No	No	615x98 28W
HB003.2211.830.D000 Copy the code Open in new window	28 W	4690 lm	168 lm/W	830	Grey	DALI	No	No	No	615x98 28W
HB003.2211.840.A000 Copy the code Open in new window	28 W	4915 lm	176 lm/W	840	Grey	ON/OFF	No	No	No	615x98 28W
HB003.2211.840.D000 Copy the code Open in new window	28 W	4915 lm	176 lm/W	840	Grey	DALI	No	No	No	615x98 28W
HB003.2211.940.A000 Copy the code Open in new window	28 W	4425 lm	158 lm/W	940	Grey	ON/OFF	No	No	No	615x98 28W
HB004.2211.830.A000 Copy the code Open in new window	24 W	3940 lm	164 lm/W	830	Grey	ON/OFF	No	No	No	1175x98 24W
