Plafonds

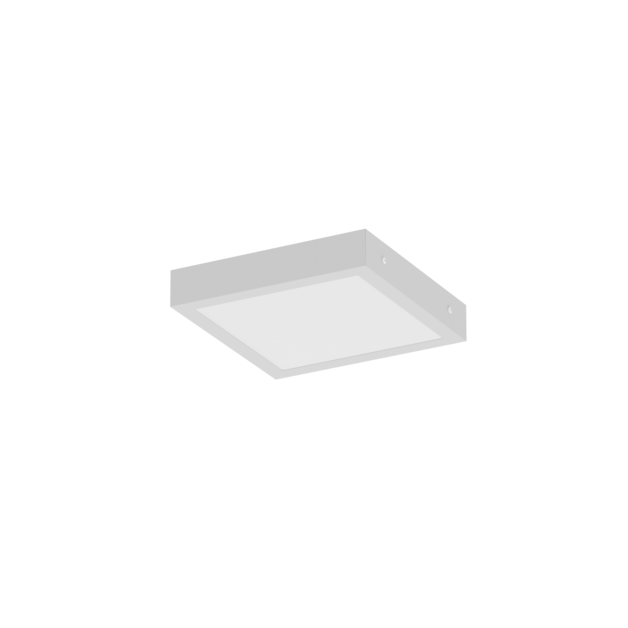

Finestra IP44 LED 307x307 10W 990lm 830 MPRM Grey MW
Energy-saving decorative lighting luminaire of modern and elegant shape equipped with LED light source from renowned producers. Finestra by universal form and type of assembly is suitable for public spacer, conference rooms, offices, communications, halls, stairways. The first-class AC power supply of renowned brands achieves cos ϕ >0,95. This luminarie perfectly complements to the rest of the Finestra series of luminaires. Attention: possibility of mounting "Active+" - self-learning energy saving system. Active+ is an out-of-the-box standalone solution consisting of an LED driver and small sensor built into the luminaire. Luminaires fitted with Active+ solution are ideal for refurbishment projects, as well as for new offices, corridors, open plan areas, etc.
Plafonds
Finestra IP44 LED 307x307 10W 990lm 830 MPRM Grey MW
Energy-saving decorative lighting luminaire of modern and elegant shape equipped with LED light source from renowned producers. Finestra by universal form and type of assembly is suitable for public spacer, conference rooms, offices, communications, halls, stairways. The first-class AC power supply of renowned brands achieves cos ϕ >0,95. This luminarie perfectly complements to the rest of the Finestra series of luminaires. Attention: possibility of mounting "Active+" - self-learning energy saving system. Active+ is an out-of-the-box standalone solution consisting of an LED driver and small sensor built into the luminaire. Luminaires fitted with Active+ solution are ideal for refurbishment projects, as well as for new offices, corridors, open plan areas, etc.
LED
DI
IP44
I
yes
yes
yes
Basic information:
Index:
CV001.2222.830.A001
EAN:
5904312894867
Installation:
Surface mounted, wall mounted, suspended
Power:
220 ... 240  V
Categorization:
Technical data
Finestra IP44 LED 307x307 10W 990lm 830 MPRM Grey MW
PRODUCT CODE
CV001.2222.830.A001
Copy the code
PRODUCT EAN
5904312894867
Copy the EAN code
Mechanical data
Housing material Steel sheet
Optical data
Louver/ diffuser MPRM
Diffuser colour Transparent
Diffuser material Prismatic plastic
UGR 17
Electrical data
Light source LED
Luminaire power 10 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module No
Motion sensor MW
Information data
Net weight 3.6 kg
Colour Grey
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 990 lm
Luminaire's luminous efficacy 99 lm/W
Color rendering index 80
Light distribution DI
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP44
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W
307 mm 307 mm
L - Length
W - Width
Download
Installation manual
561.93 KB
Download
Product card
Download
Pobierz wszystkie pliki
