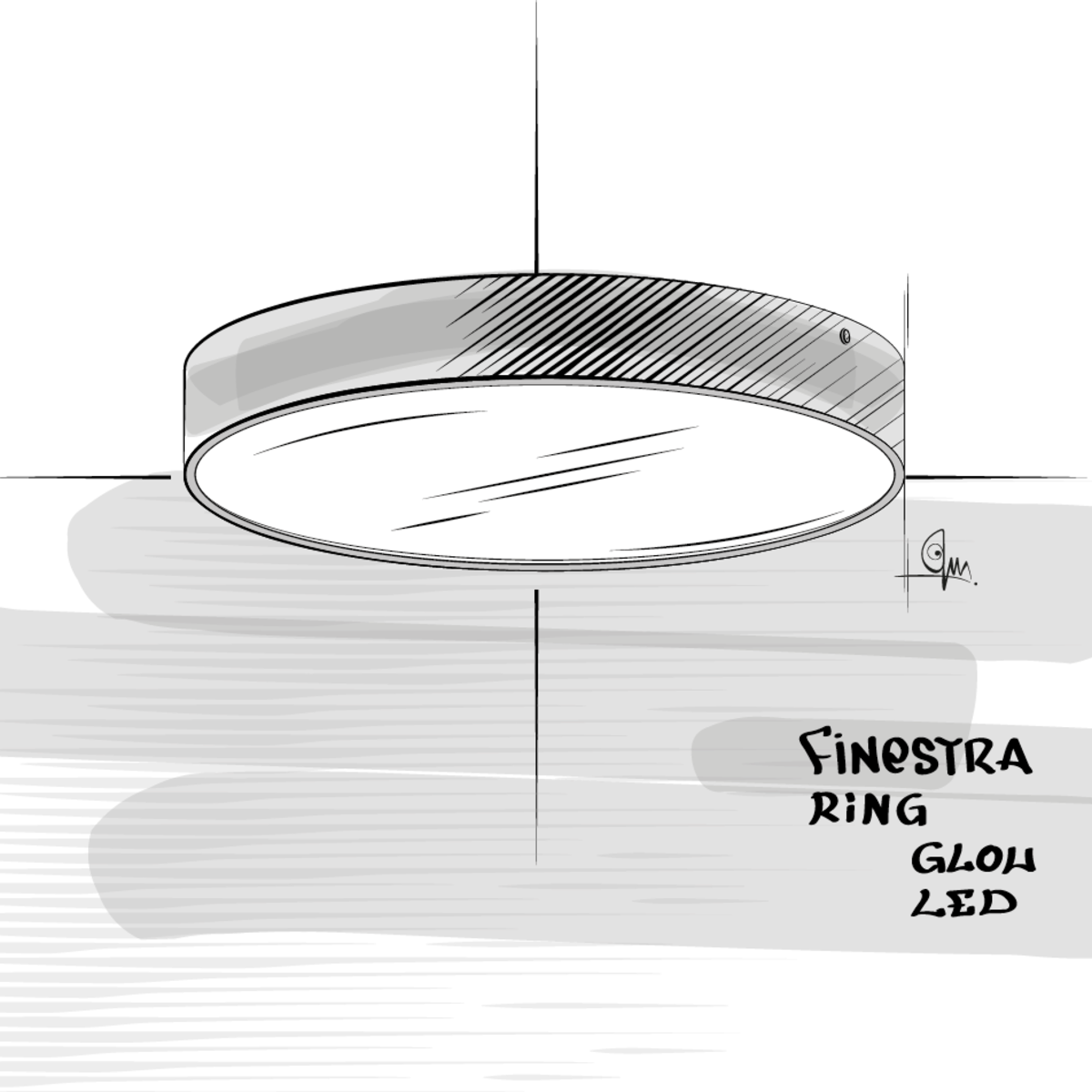

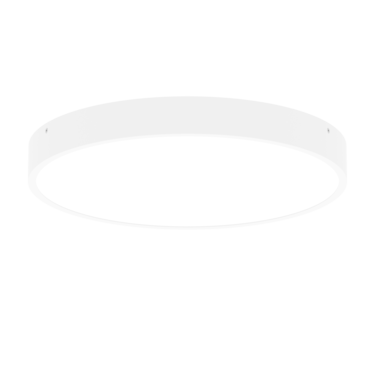

Finestra Ring LED GLOW

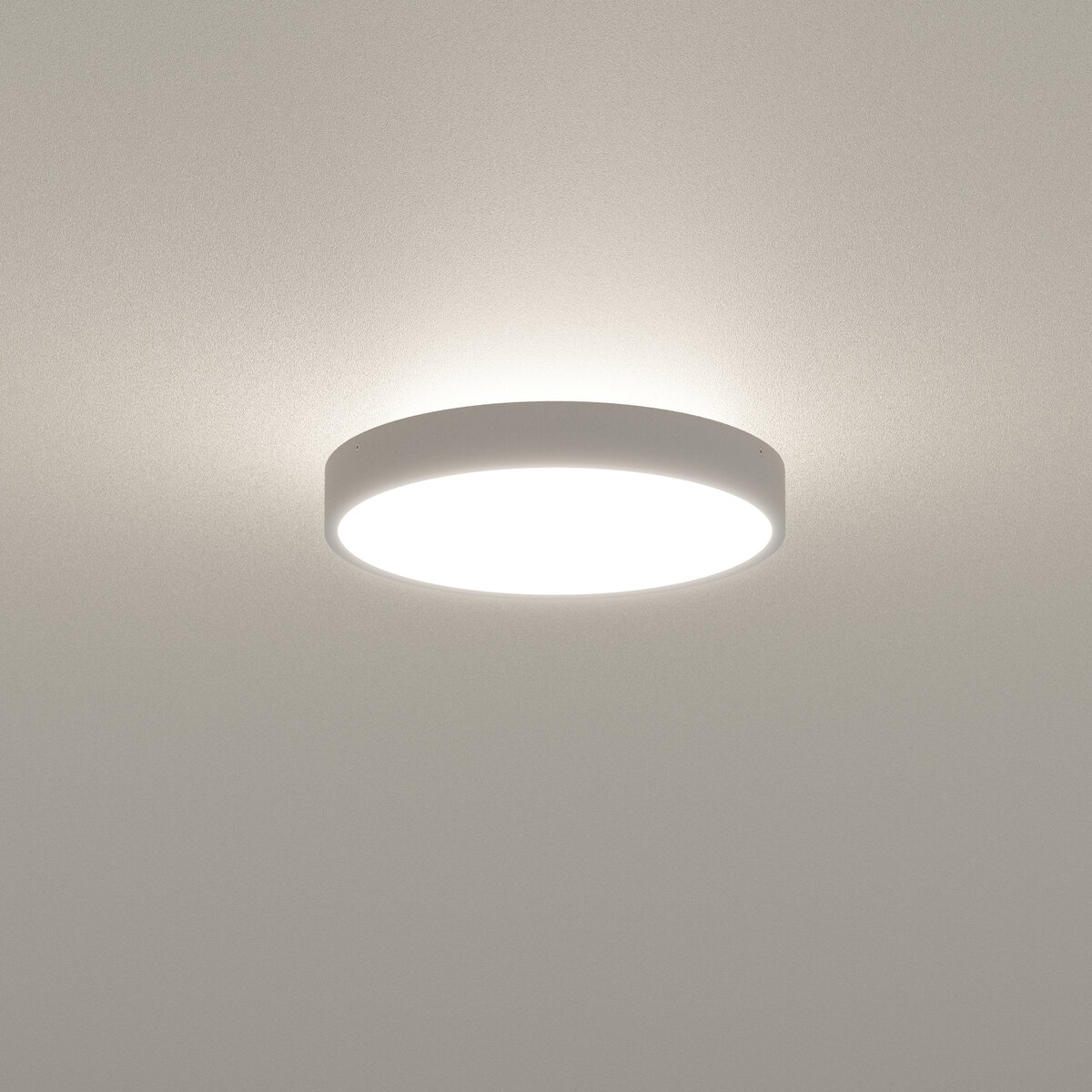

Universal plafond for LED light sources. The additional LED module emits a glow on the ceiling.

Plafonds

Finestra Ring LED GLOW

Universal plafond for LED light sources. The additional LED module emits a glow on the ceiling.

Go to the variant list (34)

LED

IP20

yes

yes

yes

yes

Basic information:

Materials:

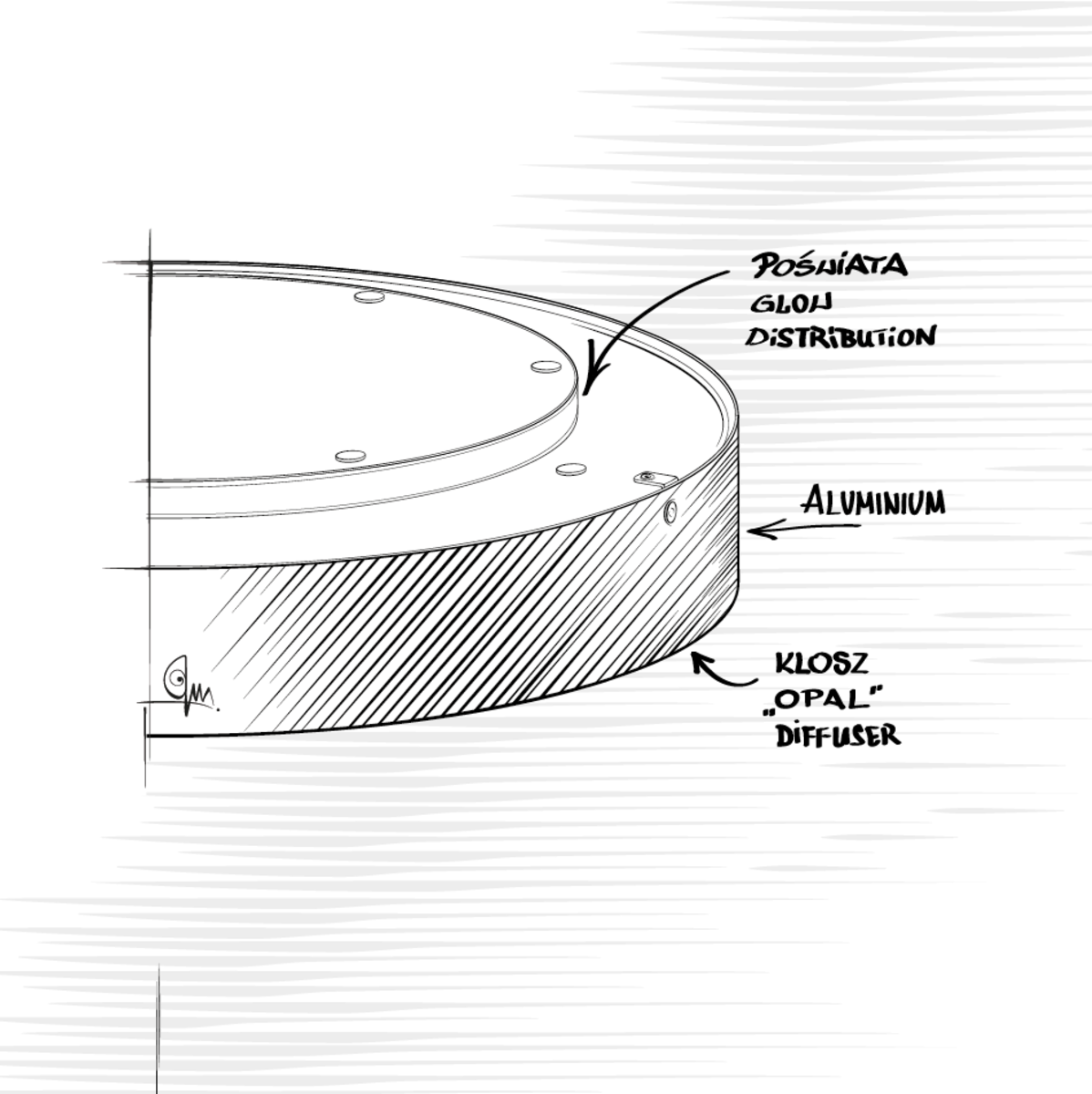

Powder painted housing made of aluminum profile (standard colours: white, grey, black), base made of steel sheet, OPAL diffuser (PMMA) .

Installation:

Surface mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Plafonds

Application:

Reception, Corridor and staircase

Mounting type:

Ceiling mounted

Technical data:

Luminaire power:

43 - 70 W

Luminaire luminous flux:

4130 - 6960 lm

Outer diameter:

440 mm, 520 mm, 630 mm, 800 mm

See other technical data

Technical data

Mechanical data

Type of installation

Ceiling mounted

Optical data

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic
UGR	19, 20

Electrical data

Light source	LED
Luminaire power	43 - 70 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Type of driver	DALI, ON/OFF
Emergency module	opcjonalnie
Motion sensor	opcjonalnie

Information data

Net weight	3.2 - 8.4 kg
Colour	Black, Grey, White
RAL - dowolny kolor z palety	yes
Power and luminous flux tolerance	+/-10%
Inne	Glow 370 lm, Glow 375 lm
Info	440mm, 520mm

Light data

Luminaire luminous flux	4130 - 6960 lm
Luminaire's luminous efficacy	83 - 110 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	Wide beam
Light distribution	DI
Class of luminaire	I
Light output degradation	B10
Lumen maintenance	L80
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	85 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 930

Certificates

Degree of protection (IP)	IP20
Impact resistance	IK04
Class of protection	I
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D HO /DRIVER WITH PREDEFINED SETTING/

H DSI

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

X 1-10V /ADJUSTABLE/

S DMX

V sDIMM

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Motion sensor	Type of family
CW008.1111.830.A000 Copy the code Open in new window	43 W	4130 lm	96 lm/W	OPAL	830	White	ON/OFF	No	No	GLOW 440mm
CW008.1111.830.D000 Copy the code Open in new window	43 W	4130 lm	96 lm/W	OPAL	830	White	DALI	No	No	GLOW 440mm
CW008.1111.840.A000 Copy the code Open in new window	43 W	4245 lm	99 lm/W	OPAL	840	White	ON/OFF	No	No	GLOW 440mm
CW008.2211.830.A000 Copy the code Open in new window	43 W	4130 lm	96 lm/W	OPAL	830	Grey	ON/OFF	No	No	GLOW 440mm
CW008.2211.830.D000 Copy the code Open in new window	43 W	4130 lm	96 lm/W	OPAL	830	Grey	DALI	No	No	GLOW 440mm
CW008.2211.840.A000 Copy the code Open in new window	43 W	4245 lm	99 lm/W	OPAL	840	Grey	ON/OFF	No	No	GLOW 440mm
CW008.2211.840.D000 Copy the code Open in new window	43 W	4245 lm	99 lm/W	OPAL	840	Grey	DALI	No	No	GLOW 440mm
CW008.3311.830.A000 Copy the code Open in new window	43 W	4130 lm	96 lm/W	OPAL	830	Black	ON/OFF	No	No	GLOW 440mm
CW008.3311.830.D000 Copy the code Open in new window	43 W	4130 lm	96 lm/W	OPAL	830	Black	DALI	No	No	GLOW 440mm
CW008.3311.840.D000 Copy the code Open in new window	43 W	4245 lm	99 lm/W	OPAL	840	Black	DALI	No	No	GLOW 440mm
CW009.1111.830.A000 Copy the code Open in new window	43 W	4400 lm	102 lm/W	OPAL	830	White	ON/OFF	No	No	GLOW 520mm
CW009.1111.840.A000 Copy the code Open in new window	43 W	4525 lm	105 lm/W	OPAL	840	White	ON/OFF	No	No	GLOW 520mm
CW009.1111.840.D000 Copy the code Open in new window	43 W	4525 lm	105 lm/W	OPAL	840	White	DALI			GLOW 520mm
CW009.2211.830.A000 Copy the code Open in new window	43 W	4400 lm	102 lm/W	OPAL	830	Grey	ON/OFF	No	No	GLOW 520mm
CW009.2211.830.D000 Copy the code Open in new window	43 W	4400 lm	102 lm/W	OPAL	830	Grey	DALI	No	No	GLOW 520mm
