Finestra Ring LED

Universal plafond for LED light sources.

Plafonds

Finestra Ring LED

Universal plafond for LED light sources.

Go to the variant list (428)

LED

IP20

yes

yes

yes

yes

Basic information:

Materials:

Powder painted housing made of aluminum profile (standard color: grey), base made of steel sheet, OPAL diffuser (PMMA) or microprismatic MPRM diffuser.

Accessories:

Suspension set 3x, uspensions simple and electric, G/K adapter for plaster-cardboard ceiling (except version 630mm, 800mm and 1065mm) Note: suspended version 320mm and 440mm, 520mm, 630mm: suspension set “3x”suspended version 800mm and 1065mm: 3pcs. simple and 1pcs. electrical suspension

Installation:

Surface mounted, suspended, with G/K adapter into plaster-cardboard ceiling (only 320, 440, 520 versions)

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Plafonds

Application:

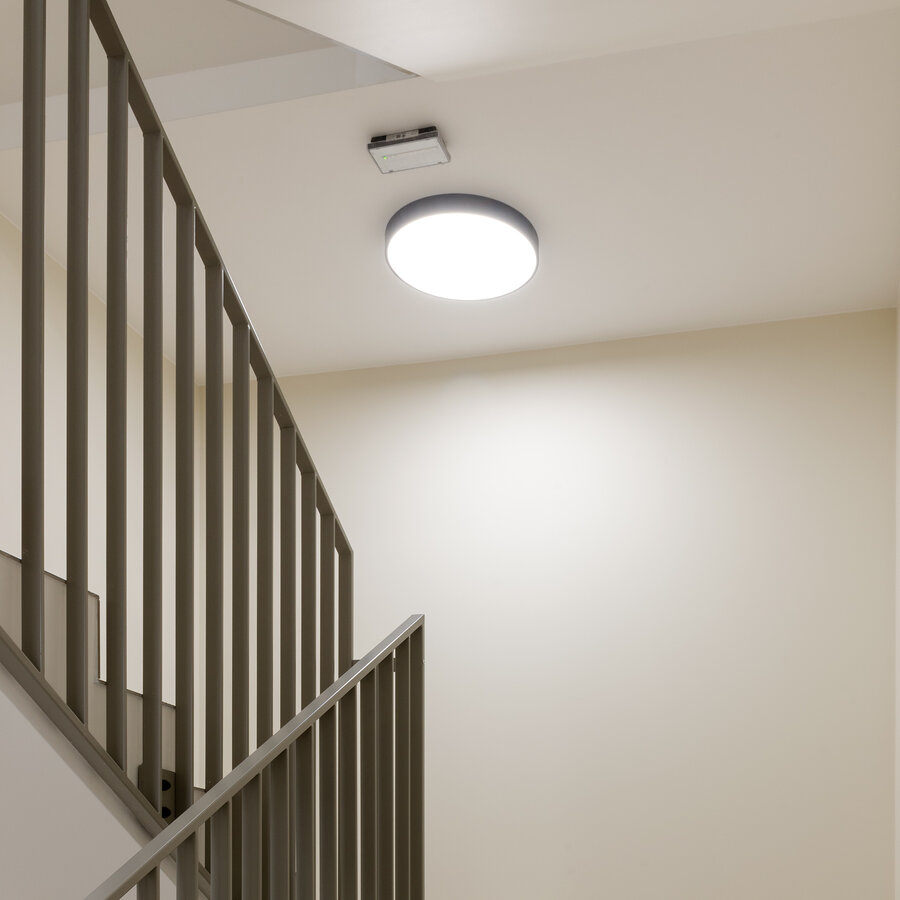

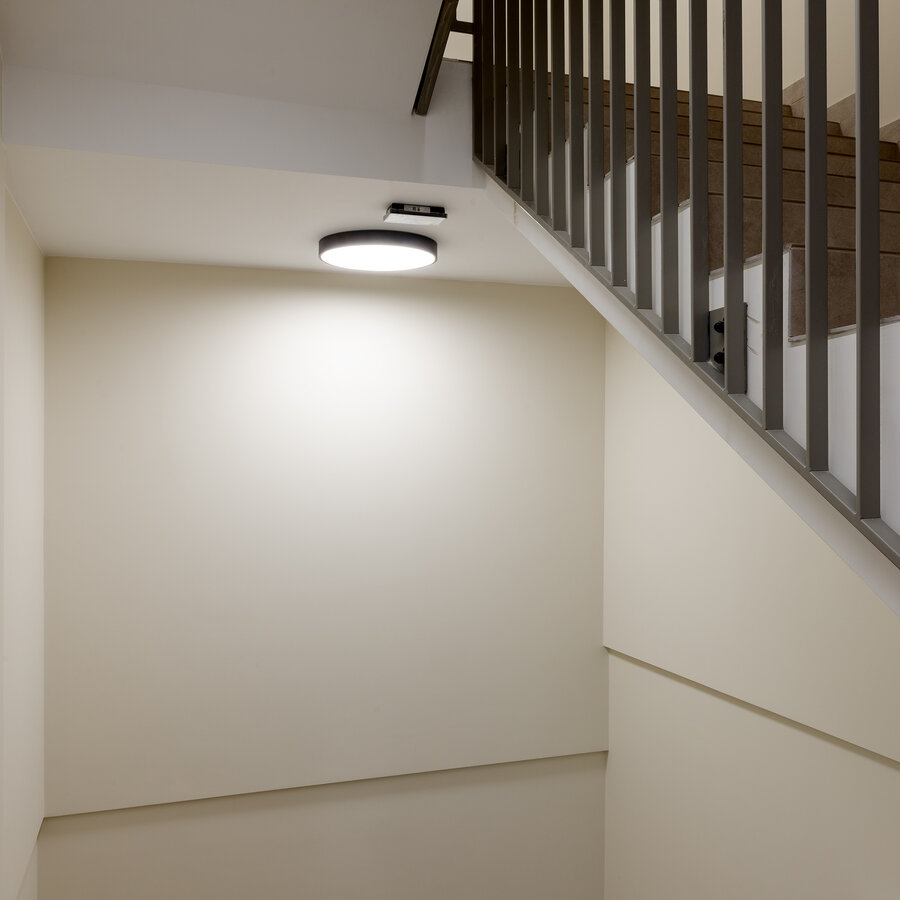

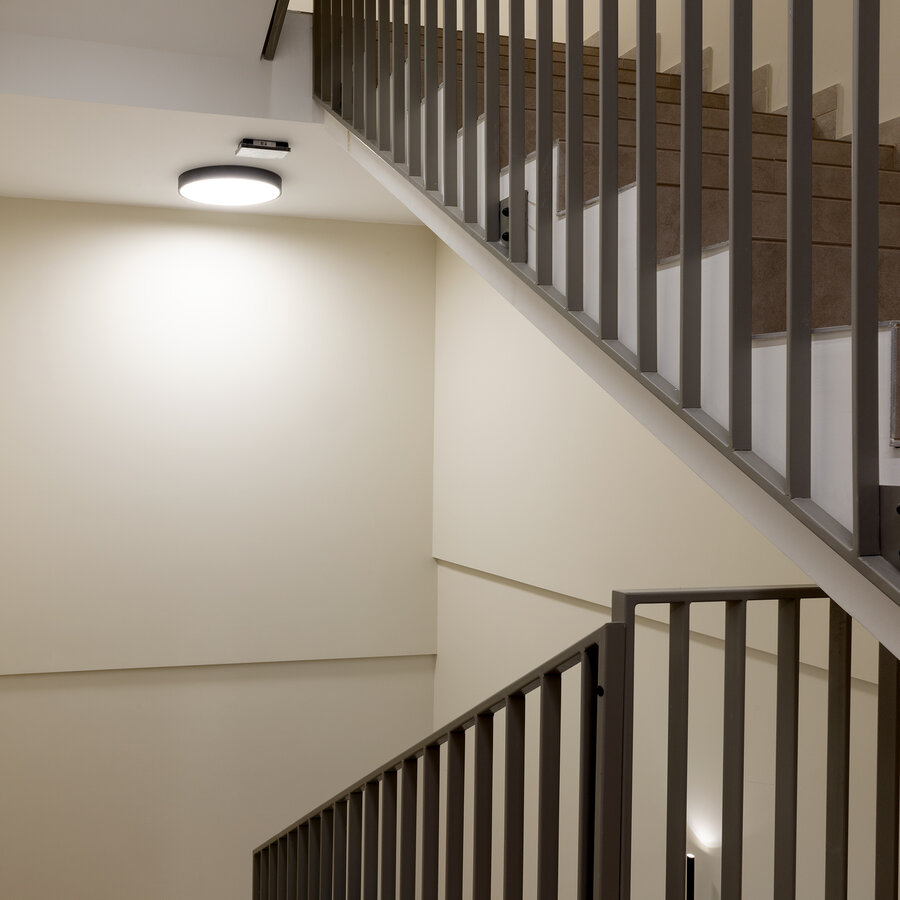

Office, Conference room, Reception, Commercial premises, Corridor and staircase

Mounting type:

Pendant, Ceiling mounted

Technical data:

Luminaire power:

16 - 100 W

Luminaire luminous flux:

1450 - 13700 lm

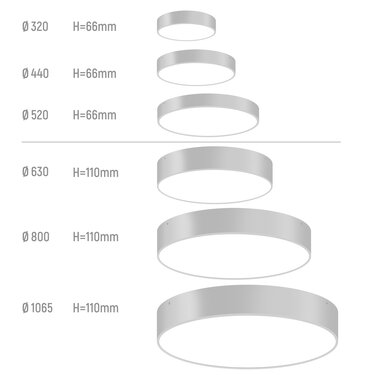

Outer diameter:

320 mm, 440 mm, 520 mm, 630 mm, 800 mm, 1065 mm

See other technical data

Technical data

Mechanical data

Type of installation	Universal
Designed for light-line	yes

Optical data

Louver/ diffuser	MPOP, MPRM, OPAL
UGR	17, 18, 19, 20, 23

Electrical data

Light source	LED
Luminaire power	16 - 100 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Type of driver	CF, DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	1.9 - 13.7 kg
Colour	Black, Grey, White
RAL - any color from the palette	yes
Power and luminous flux tolerance	+/-10%
Info	1065 mm, 320 mm, 440 mm, 520 mm, 630 mm, 800 mm

Light data

Luminaire luminous flux	1450 - 13700 lm
Luminaire's luminous efficacy	86 - 137 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	Wide beam
Light distribution	DI
Class of luminaire	I
Light output degradation	B10
Lumen maintenance	L80, L90
Lifetime	54000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	85 %, 89 %
Colour temperature	2700-6500K, 3000K, 4000K
CRI & colour temperature	830, 840, 8TW, 930, 940

Certificates

Degree of protection (IP)	IP20
Impact resistance	IK04
Class of protection	I
Power Flicker	=< 3%
Light source protection	yes
PZH	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Motion sensor	Type of family
CW001.1111.830.A000 Copy the code Open in new window	16 W	1700 lm	106 lm/W	OPAL	830	White	ON/OFF	No	No	320mm
CW001.1111.830.D000 Copy the code Open in new window	16 W	1700 lm	106 lm/W	OPAL	830	White	DALI	No	No	320mm
CW001.1111.840.A000 Copy the code Open in new window	16 W	1750 lm	109 lm/W	OPAL	840	White	ON/OFF	No	No	320mm
CW001.1111.840.D000 Copy the code Open in new window	16 W	1750 lm	109 lm/W	OPAL	840	White	DALI	No	No	320mm
CW001.1111.930.A000 Copy the code Open in new window	16 W	1450 lm	91 lm/W	OPAL	930	White	ON/OFF	No	No	320mm
CW001.1111.930.D000 Copy the code Open in new window	16 W	1450 lm	91 lm/W	OPAL	930	White	DALI	No	No	320mm
CW001.1111.940.A000 Copy the code Open in new window	16 W	1490 lm	93 lm/W	OPAL	940	White	ON/OFF	No	No	320mm
CW001.1111.940.D000 Copy the code Open in new window	16 W	1490 lm	93 lm/W	OPAL	940	White	DALI	No	No	320mm
CW001.1122.830.A000 Copy the code Open in new window	16 W	1900 lm	119 lm/W	MPRM	830	White	ON/OFF	No	No	320mm
CW001.1122.830.D000 Copy the code Open in new window	16 W	1900 lm	119 lm/W	MPRM	830	White	DALI	No	No	320mm
CW001.1122.840.A000 Copy the code Open in new window	16 W	1960 lm	123 lm/W	MPRM	840	White	ON/OFF	No	No	320mm
CW001.1122.840.D000 Copy the code Open in new window	16 W	1960 lm	123 lm/W	MPRM	840	White	DALI	No	No	320mm
CW001.1122.930.A000 Copy the code Open in new window	16 W	1620 lm	101 lm/W	MPRM	930	White	ON/OFF	No	No	320mm
CW001.1122.930.D000 Copy the code Open in new window	16 W	1620 lm	101 lm/W	MPRM	930	White	DALI	No	No	320mm
CW001.1122.940.A000 Copy the code Open in new window	16 W	1670 lm	104 lm/W	MPRM	940	White	ON/OFF	No	No	320mm
