Modular
Fuzo LED Line 618x91 17W 1730lm 840 OPAL White
Modular
Fuzo LED Line 618x91 17W 1730lm 840 OPAL White
LED
DI
IP20
IP44
I
yes
yes
yes
Basic information:
Index:
CY006.1111.840.A000
EAN:
5904312968681
Power:
220 ... 240  V
Categorization:
Technical data
Fuzo LED Line 618x91 17W 1730lm 840 OPAL White
PRODUCT CODE
CY006.1111.840.A000
Copy the code
PRODUCT EAN
5904312968681
Copy the EAN code
Mechanical data
Housing material Aluminum
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
Electrical data
Light source LED
Luminaire power 17 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 1.7 kg
Colour White
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1730 lm
Luminaire's luminous efficacy 102 lm/W
Color rendering index 80

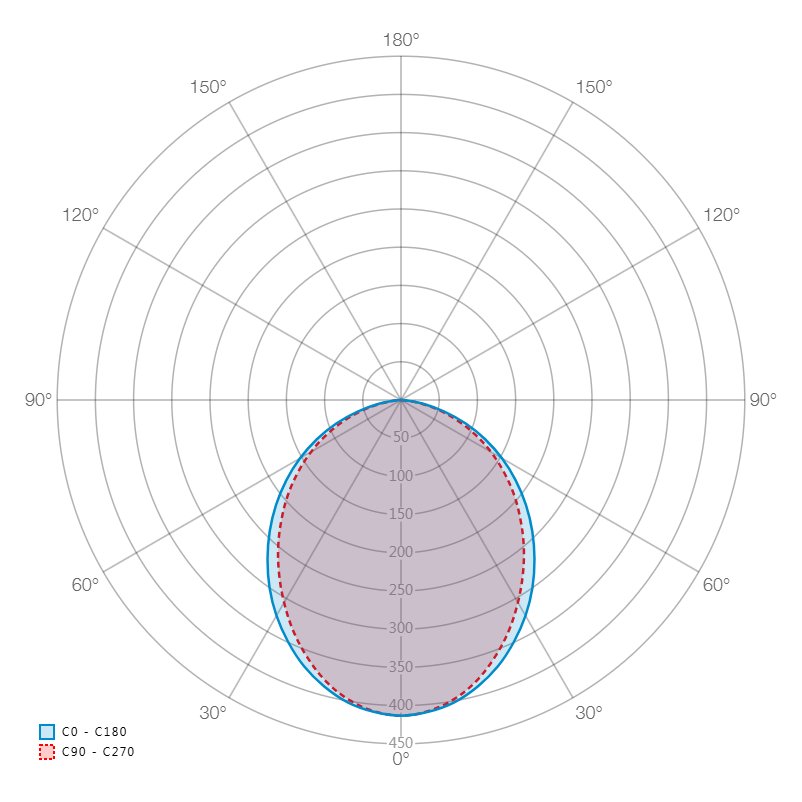

Light distribution DI
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP44
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W
618 mm 91 mm
L - Length
W - Width
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
EC Declaration of conformity
Download
