Modular
Fuzo LED Line 618x91 17W 1740lm 830 MPRM Grey
LED
DI
IP20
IP44
I
yes
yes
yes
Basic information:
Index:
CY006.2222.830.A000
EAN:
5907769480751
Power:
220 ... 240  V
Categorization:
Technical data
Fuzo LED Line 618x91 17W 1740lm 830 MPRM Grey
PRODUCT CODE
CY006.2222.830.A000
Copy the code
PRODUCT EAN
5907769480751
Copy the EAN code
Mechanical data
Type of installation Recessed
Housing material Steel sheet
Optical data
Louver/ diffuser MPRM
Diffuser colour Transparent
Diffuser material Prismatic plastic
Reflector high gloss
UGR 16
Electrical data
Light source LED
Luminaire power 17 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 1.7 kg
Colour Grey
Operating temperature range -15 ... 40
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1740 lm
Luminaire's luminous efficacy 102 lm/W
Light colour White
Color rendering index 80
Light distribution Bardzo wąskostrumieniowy
Light distribution DI
Class of luminaire I
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP44
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
618 mm 91 mm 82 mm
L - Length
W - Width
H - Height / Depth
Download
Product card
Download

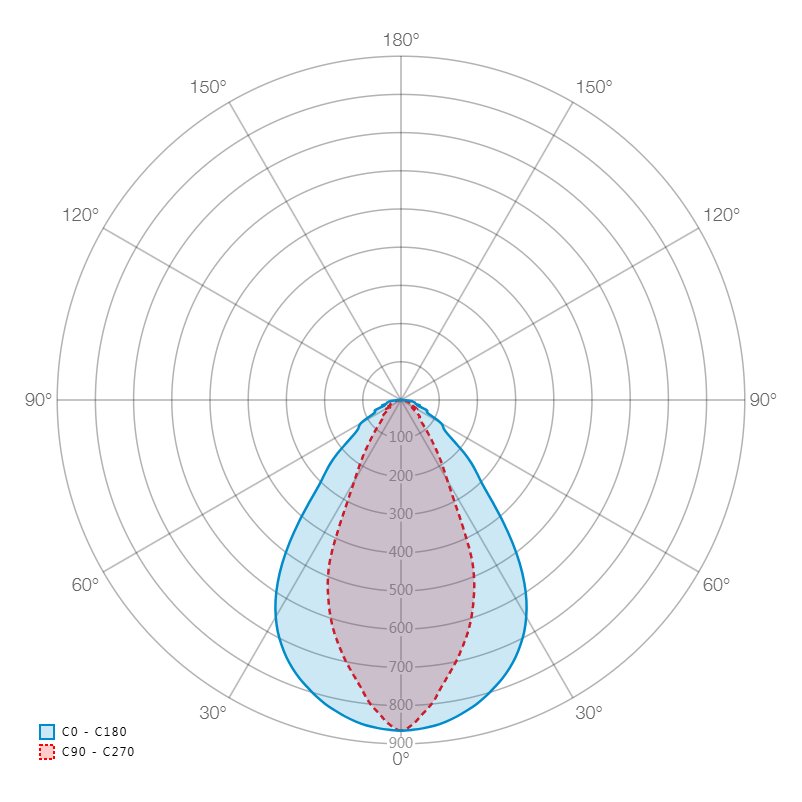

Photometric file
1.59 KB
Download
