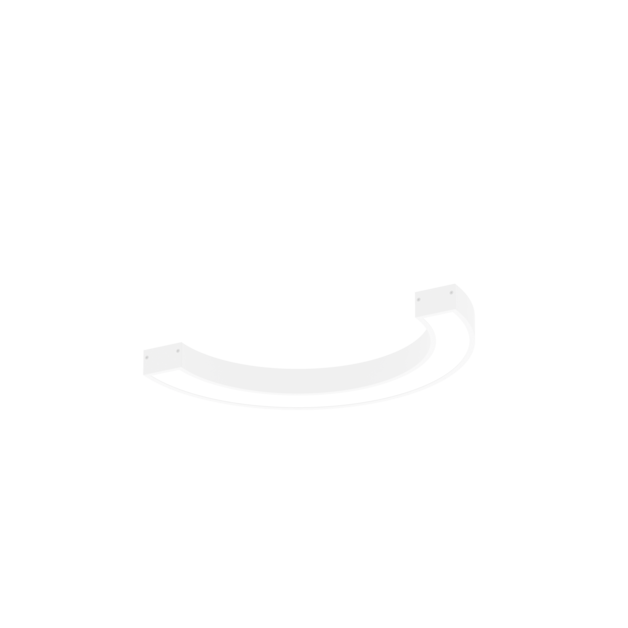

Geometric Arc LED 800mm 180° 45W 4490lm 840 OPAL White TH3

Decorative

A family of LED luminaires in the shape of a half-round. Thanks to their modern and universal shape, GEOMETRIC ARC LED luminaires can be used in any type of space inside a building. Inline installation and connection with GEOMETRIC LINE LED is possible.

Decorative

Geometric Arc LED 800mm 180° 45W 4490lm 840 OPAL White TH3

Basic information:

Index:

EC001.1111.840.A010

EAN:

5907671368543

Accessories:

Geometric Arc/Line LED end caps, Geometric Arc LED End caps, Electric suspension kit, Geometric LED ARC Linear joining set, Suspension kit 1x

Installation:

suspended (to suspend the luminaire you will need: simple suspension – 2 pcs and electric suspension – 1 pc)

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Decorative

Application:

Office, Conference room, Reception, Commercial premises, Corridor and staircase

Mounting type:

Pendant

F
800 mm

800 mm

Housing material	Aluminum
Designed for light-line	yes

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic
UGR	18

Light source	LED
Luminaire power	45 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	TH3
Type of driver	ON/OFF
Emergency module	No
Motion sensor	No

Net weight	3.5 kg
Colour	White
Power and luminous flux tolerance	+/-10%

Luminaire luminous flux	4490 lm
Luminaire's luminous efficacy	100 lm/W
Color rendering index	80
Light distribution	DI
Colour temperature	4000K
CRI & colour temperature	840

Degree of protection (IP)	IP40
Impact resistance	IK04
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes
