Technical data Download Accessories
Decorative
Geometric Triangle LED 650 36W 3720lm 840 OPAL Grey
A family of LED luminaires in the shape of a triangle. Thanks to their modern and universal shape, GEOMETRIC TRIANGLE LED luminaires can be used in any type of space inside a building. Their main characteristics are a uniform luminance all over the OPAL diffuser and a high-quality lighting performance
Decorative
Geometric Triangle LED 650 36W 3720lm 840 OPAL Grey
A family of LED luminaires in the shape of a triangle. Thanks to their modern and universal shape, GEOMETRIC TRIANGLE LED luminaires can be used in any type of space inside a building. Their main characteristics are a uniform luminance all over the OPAL diffuser and a high-quality lighting performance
LED
DI
IP40
I
yes
yes
yes
Basic information:
Index:
AG001.2211.840.A000
EAN:
5907769490248
Accessories:
Electric suspension kit, Suspension kit 1x, Geometric LED (Ring/Triangle) Suspension set central 3x
Installation:
suspended (suspensions 1,5 m in set)
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Decorative
Application:
Office, Conference room, Reception, Commercial premises, Corridor and staircase
Mounting type:
Pendant
Technical data
Geometric Triangle LED 650 36W 3720lm 840 OPAL Grey
PRODUCT CODE
AG001.2211.840.A000
Copy the code
PRODUCT EAN
5907769490248
Copy the EAN code
Mechanical data
Type of installation Suspended
Housing material Aluminum
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 20
Electrical data
Light source LED
Luminaire power 36 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Power factor 0.96
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 3.5 kg
Colour Grey
Operating temperature range -15 ... 40
Power and luminous flux tolerance +/-10%
Info Small
Light data
Luminaire luminous flux 3720 lm
Luminaire's luminous efficacy 103 lm/W
Light colour White
Color rendering index 80

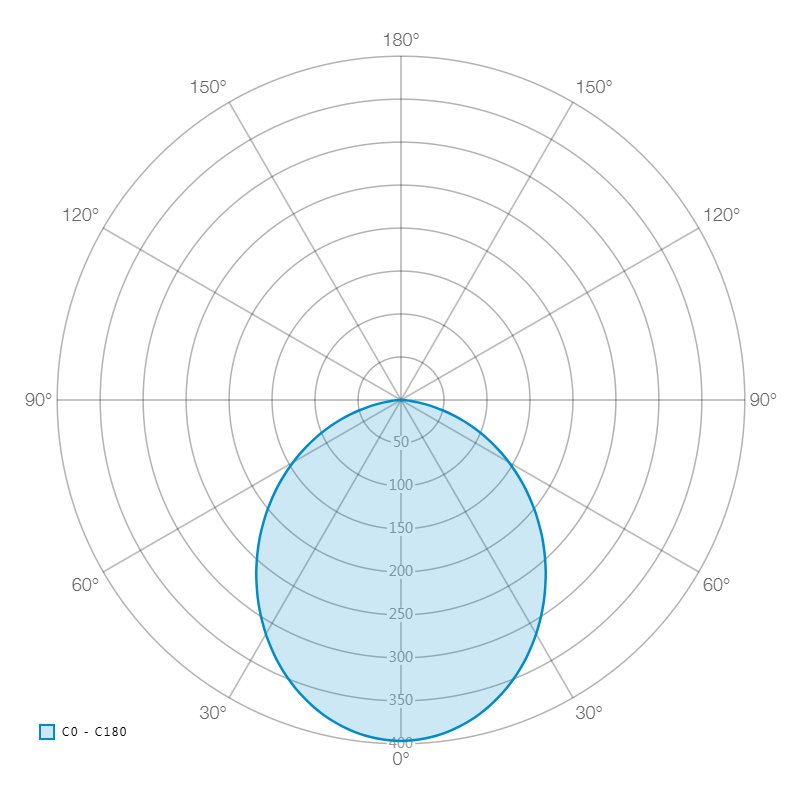

Light distribution Wide beam
Light distribution DI
Class of luminaire I
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
L80/B10 przy 25°C żywotność znamionowa [h] 54000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP40
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L H
650 mm 62 mm
L - Length
H - Height / Depth
Download
Installation manual
439.6 KB
Download
Photometric file
850 B
Download
Product card
1.05 MB
Download
Pobierz wszystkie pliki
Electric elements
Accessories
Electric suspension kit
Installation elements
Accessories
Suspension kit 1x
Accessories
Geometric LED (Ring/Triangle) Suspension set central 3x
