Architectural

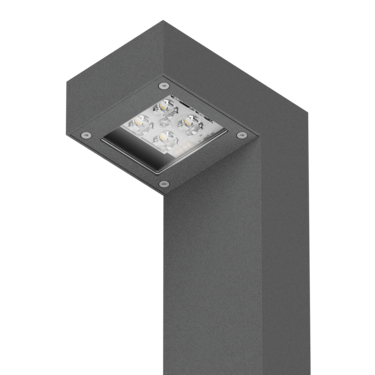

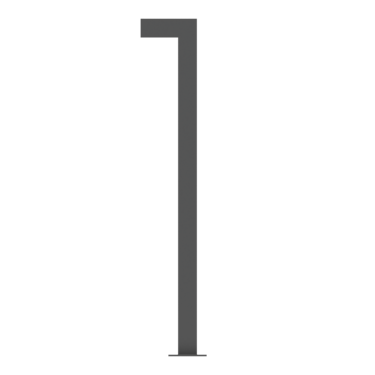

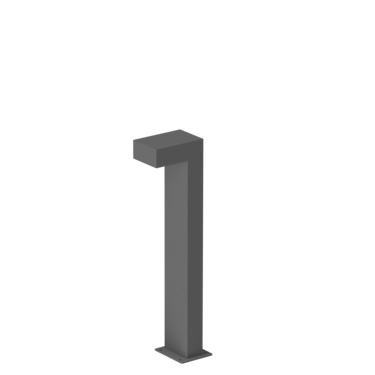

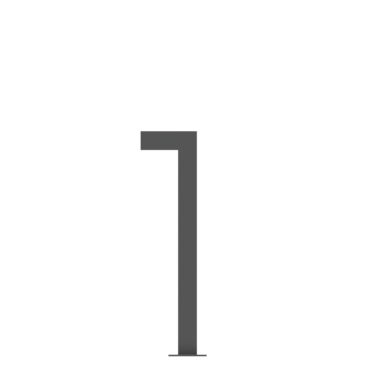

Greenlight LED 50x100 L

Monolithic lighting pole with LEDs. Available optics: asymmetric AS and street ST. Perfect solution for discreet lighting of building surroundings, paths and gardens.

Architectural

Greenlight LED 50x100 L

Monolithic lighting pole with LEDs. Available optics: asymmetric AS and street ST. Perfect solution for discreet lighting of building surroundings, paths and gardens.

Go to the variant list (17)

LED

IP65

yes

yes

yes

Basic information:

Materials:

Housing made of aluminum profile painted with paint resistant to external conditions (standard color: graphite, other colors on request), transparent plastic diffuser

Installation:

For the ground

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Architectural

Application:

Apartment building environment, Building environment, Car park, Park, Sport field

Mounting type:

Bollard

Technical data:

Luminaire power:

5 - 10 W

Luminaire luminous flux:

360 - 745 lm

Length:

150 mm

See other technical data

Technical data

Mechanical data

Housing material

Aluminum

Optical data

Louver/ diffuser	LNS
Diffuser colour	Transparent
Diffuser material	Transparent plastic

Electrical data

Light source	LED
Luminaire power	5 - 10 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Type of driver	ON/OFF
Emergency module	opcjonalnie
Motion sensor	opcjonalnie

Information data

Net weight	1.6 - 2 kg
Colour	Anthracite, Anthracite RAL7016
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	360 - 745 lm
Luminaire's luminous efficacy	67 - 80 lm/W
Color rendering index	80
Light distribution	DI
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840

Certificates

Degree of protection (IP)	IP65
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D HO /DRIVER WITH PREDEFINED SETTING/

H DSI

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

X 1-10V /ADJUSTABLE/

S DMX

V sDIMM

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Optics	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Type of family
AH006.4477.830.A000 Copy the code Open in new window	5 W	370 lm	74 lm/W	ST	LNS	830	Anthracite	ON/OFF	50x100 L 600mm ST
AH006.4477.840.A000 Copy the code Open in new window	5 W	400 lm	80 lm/W	ST	LNS	840	Anthracite	ON/OFF	50x100 L 600mm ST
AH007.4477.830.A000 Copy the code Open in new window	10 W	700 lm	70 lm/W	ST	LNS	830	Anthracite	ON/OFF	50x100 L 600mm ST
AH007.4477.840.A000 Copy the code Open in new window	10 W	745 lm	75 lm/W	ST	LNS	840	Anthracite	ON/OFF	50x100 L 600mm ST
AH008.4477.830.A000 Copy the code Open in new window	5 W	360 lm	72 lm/W	AS	LNS	830	Anthracite	ON/OFF	50x100 L 600mm AS
AH008.4477.840.A000 Copy the code Open in new window	5 W	380 lm	76 lm/W	AS	LNS	840	Anthracite	ON/OFF	50x100 L 600mm AS
AH009.4477.830.A000 Copy the code Open in new window	10 W	670 lm	67 lm/W	AS	LNS	830	Anthracite	ON/OFF	50x100 L 600mm AS
AH009.4477.840.A000 Copy the code Open in new window	10 W	715 lm	72 lm/W	AS	LNS	840	Anthracite	ON/OFF	50x100 L 600mm AS
AH010.4477.830.A000 Copy the code Open in new window	5 W	370 lm	74 lm/W	ST	LNS	830	Anthracite	ON/OFF	50x100 L 900mm ST
AH010.4477.840.A000 Copy the code Open in new window	5 W	400 lm	80 lm/W	ST	LNS	840	Anthracite	ON/OFF	50x100 L 900mm ST
AH010.4577.830.A000 Copy the code Open in new window	5 W	370 lm	74 lm/W		LNS	830	Anthracite RAL7016	ON/OFF	50x100 L 900mm ST
AH011.4477.830.A000 Copy the code Open in new window	10 W	700 lm	70 lm/W	ST	LNS	830	Anthracite	ON/OFF	50x100 L 900mm ST
AH011.4477.840.A000 Copy the code Open in new window	10 W	745 lm	75 lm/W	ST	LNS	840	Anthracite	ON/OFF	50x100 L 900mm ST
AH012.4477.830.A000 Copy the code Open in new window	5 W	360 lm	72 lm/W	AS	LNS	830	Anthracite	ON/OFF	50x100 L 900mm AS
AH012.4477.840.A000 Copy the code Open in new window	5 W	380 lm	76 lm/W	AS	LNS	840	Anthracite	ON/OFF	50x100 L 900mm AS

Displaying items: 15 of 17

of 2

per page

Installation manual

582.79 KB

Download

EC Declaration of conformity

Download

Karta rodziny

Download

Pobierz wszystkie pliki

Installation elements

Greenlight Base
