Greenlight LED 50x100 90° 9W 490lm 840 SH Anthracite STD

Architectural

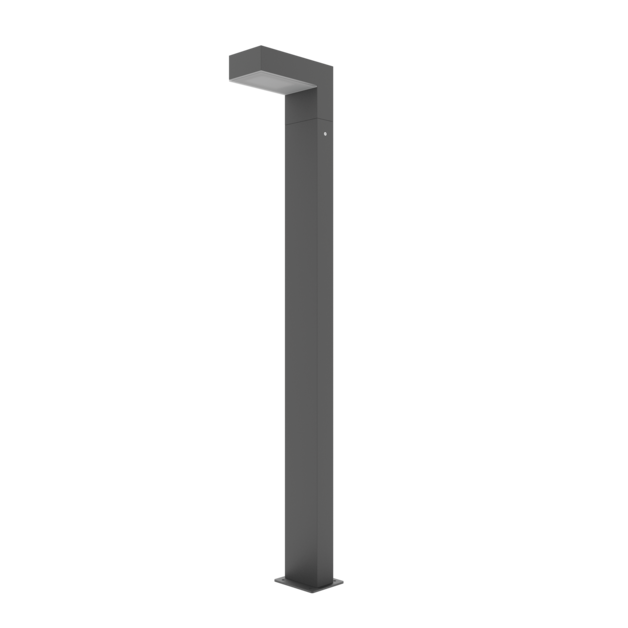

Head of luminaire designed for LED light sources in the form of a rectangle pillar. Various dimensions and slopes available as a standard. Perfect solution for discreet lighting of building surroundings, paths and gardens. Head GREENLIGHT I - 115° - dimensions of cross-section 100x50mm Head GREENLIGHT I - 90° - dimensions of cross-section 100x50mm Head GREENLIGHT II - 115° - dimensions of cross-section 60x50mm

Architectural

Greenlight LED 50x100 90° 9W 490lm 840 SH Anthracite STD

Basic information:

Index:

AH002.4489.840.A000

EAN:

5907769476907

Accessories:

Greenlight 50x100 pole, Greenlight Base

Installation:

For the ground

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Architectural

Application:

Apartment building environment, Building environment, Car park, Park, Sport field

Mounting type:

Bollard, Post luminaires

L	W	H
100 mm	50 mm	120 mm

100 mm

50 mm

120 mm

Type of installation	Do słupa
Housing material	Aluminum

Louver/ diffuser	SH
Diffuser colour	Transparent
Diffuser material	Transparent glass
Reflector	high gloss

Light source	LED
Luminaire power	9 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Type of driver	ON/OFF
Emergency module	No
Motion sensor	No

Net weight	1.1 kg
Colour	Anthracite
Operating temperature range	-20 ... 40
Power and luminous flux tolerance	+/-10%
Inne	90° 50X100
Info	90° 50X100

Luminaire luminous flux	490 lm
Luminaire's luminous efficacy	54 lm/W
Light colour	White
Color rendering index	80
Light distribution	Średniostrumieniowy
Light distribution	DI
Class of luminaire	I
Beam angle	90°
Light output degradation	B50
Lumen maintenance	L70
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	75 %
Colour temperature	4000K
CRI & colour temperature	840

Degree of protection (IP)	IP65
Impact resistance	IK08
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes
