Ilumo LED

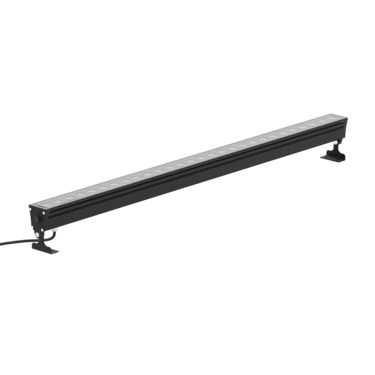

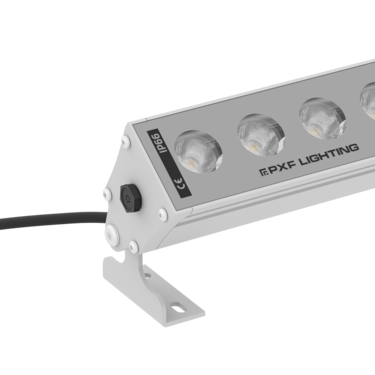

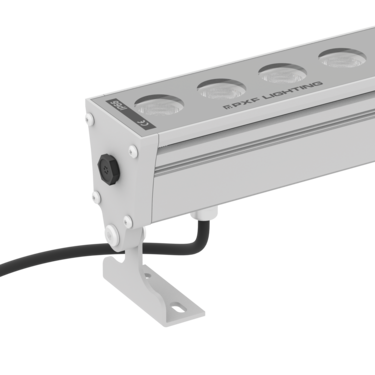

Modern, hermetic luminaire with multiple functions. ILUMO LED is equipped with the latest generation of LED sources closed in the aesthetic, aluminum housing with IP66 degree of protection.

Architectural

Ilumo LED

Modern, hermetic luminaire with multiple functions. ILUMO LED is equipped with the latest generation of LED sources closed in the aesthetic, aluminum housing with IP66 degree of protection.

Go to the variant list (402)

LED

IP66

IK10

yes

yes

yes

Basic information:

Materials:

electrostatically painted aluminium housing (grey colour in standard). Possibility of painting in any color from RAL palette. Transparent tempered glass.

Installation:

for the ground, wall mounting, surface mounting

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Architectural

Application:

Laboratory, Garage, Technical room, Security, Social room, Sport facilities, Parking and garage, Arcade, Car park, Sport field

Mounting type:

Ceiling mounted, Pendant, Bollard

Technical data:

Luminaire power:

9 - 30 W

Luminaire luminous flux:

790 - 4660 lm

Length:

340 mm, 640 mm, 940 mm, 1240 mm

See other technical data

Technical data

Mechanical data

Type of installation	For the ground
Housing material	Aluminum
Designed for light-line	yes

Optical data

Louver/ diffuser	LNS, SH
Diffuser material	Transparent glass
UGR	9, 11, 12, 13

Electrical data

Light source	LED
Luminaire power	9 - 30 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Type of driver	DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	1.5 - 4.8 kg
Colour	Anthracite, Black, Grey, White
Operating temperature range	-25 ... 40
Power and luminous flux tolerance	+/-10%
Info	AS, D, Ellipse, M, W

Light data

Luminaire luminous flux	790 - 4660 lm
Luminaire's luminous efficacy	88 - 155 lm/W
Light colour	White
Color rendering index	80
Light distribution	DI
Class of luminaire	I
Beam angle	10 °, 12 °, 20 °, 38 °, 45 °
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	96 %
Colour temperature	2700 K, 3000K, 4000K
CRI & colour temperature	827, 830, 840

Certificates

Degree of protection (IP)	IP66
Impact resistance	IK10
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

Filtry

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /MATTE REFLECTOR/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Through wiring	Type of family
AI001.1177.830.A000 Copy the code Open in new window	9 W	1075 lm	119 lm/W	LNS	830	White	ON/OFF	No	340mm 12°
AI001.1177.840.A000 Copy the code Open in new window	9 W	1120 lm	124 lm/W	LNS	840	White	ON/OFF	No	340mm 12°
AI001.2277.830.A000 Copy the code Open in new window	9 W	1075 lm	119 lm/W	LNS	830	Grey	ON/OFF	No	340mm 12°
AI001.2277.840.A000 Copy the code Open in new window	9 W	1120 lm	124 lm/W	LNS	840	Grey	ON/OFF	No	340mm 12°
AI001.3377.830.A000 Copy the code Open in new window	9 W	1075 lm	119 lm/W	LNS	830	Black	ON/OFF	No	340mm 12°
AI001.3377.840.A000 Copy the code Open in new window	9 W	1120 lm	124 lm/W	LNS	840	Black	ON/OFF	No	340mm 12°
AI002.1177.830.A000 Copy the code Open in new window	9 W	1110 lm	123 lm/W	LNS	830	White	ON/OFF	No	340mm 20°
AI002.1177.840.A000 Copy the code Open in new window	9 W	1160 lm	129 lm/W	LNS	840	White	ON/OFF	No	340mm 20°
AI002.2277.830.A000 Copy the code Open in new window	9 W	1110 lm	123 lm/W	LNS	830	Grey	ON/OFF	No	340mm 20°
AI002.2277.840.A000 Copy the code Open in new window	9 W	1160 lm	129 lm/W	LNS	840	Grey	ON/OFF	No	340mm 20°
AI002.3377.830.A000 Copy the code Open in new window	9 W	1110 lm	123 lm/W	LNS	830	Black	ON/OFF	No	340mm 20°
AI002.3377.840.A000 Copy the code Open in new window	9 W	1160 lm	129 lm/W	LNS	840	Black	ON/OFF	No	340mm 20°
AI003.1177.830.A000 Copy the code Open in new window	9 W	950 lm	106 lm/W	LNS	830	White	ON/OFF	No	340mm 38°
AI003.1177.840.A000 Copy the code Open in new window	9 W	990 lm	110 lm/W	LNS	840	White	ON/OFF	No	340mm 38°
AI003.2277.830.A000 Copy the code Open in new window	9 W	950 lm	106 lm/W	LNS	830	Grey	ON/OFF	No	340mm 38°

Displaying items: 15 of 402

of 27

per page

Family datasheet

Download

Family datasheet extended

Download

Installation manual

630.62 KB

Download

EC Declaration of conformity

Download

Photometric file

47.19 KB

Download

Pobierz wszystkie pliki

Electric elements

Ilumo LED Cable
