Clean room
Latte IP54 LED 330x330 19W 1590lm 930 OPAL White DALI
Luminaire of increased degree of protection and simple, classic form.
Clean room
Latte IP54 LED 330x330 19W 1590lm 930 OPAL White DALI
Luminaire of increased degree of protection and simple, classic form.
LED
DALI
DI
IP54
IK07
I
yes
yes
yes
yes
Basic information:
Index:
DY001.1111.930.D000
EAN:
5904312951942
Accessories:
Electric suspension kit, Suspension kit 1x
Installation:
Surface mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Clean room
Application:
Social room, Corridor and staircase, Bathroom, Reception, Cloak room, Technical room, Security
Mounting type:
Ceiling mounted, Wall mounted
Technical data Download Accessories
Technical data
Latte IP54 LED 330x330 19W 1590lm 930 OPAL White DALI
PRODUCT CODE
DY001.1111.930.D000
Copy the code
PRODUCT EAN
5904312951942
Copy the EAN code
Mechanical data
Housing material Plastic
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 17
Electrical data
Light source LED
Luminaire power 19 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver DALI
Emergency module No
Motion sensor No
Information data
Net weight 1.7 kg
Colour White
Power and luminous flux tolerance +/-10%

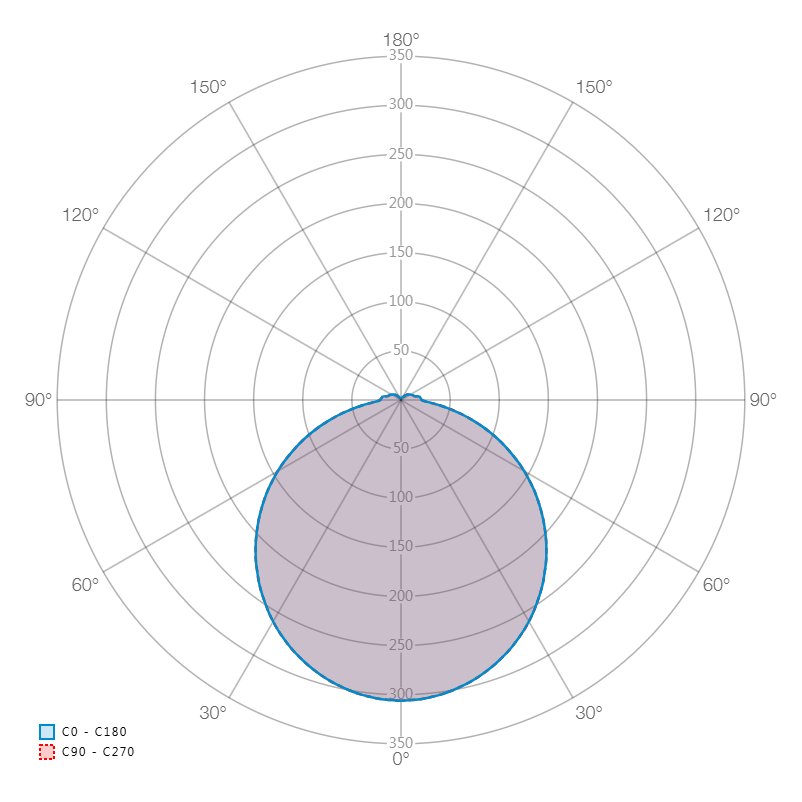

Light data
Luminaire luminous flux 1590 lm
Luminaire's luminous efficacy 84 lm/W
Color rendering index 90
Light distribution DI
Lifetime L80B10 @25°C 100000 h
Lifetime L90B10 @25°C 64000 h
Colour temperature 3000K
CRI & colour temperature 930
Certificates
Degree of protection (IP) IP54
Impact resistance IK07
Class of protection I
Light source protection yes
PZH yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
330 mm 330 mm 85 mm
L - Length
W - Width
H - Height / Depth
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
436.45 KB
Download
EC Declaration of conformity
Download
Pobierz wszystkie pliki
