Technical data Download Accessories
Clean room
Latte IP54 LED 330x330 19W 1620lm 940 OPAL White DALI
Luminaire of increased degree of protection and simple, classic form.
Image for the product family
Clean room
Latte IP54 LED 330x330 19W 1620lm 940 OPAL White DALI
Luminaire of increased degree of protection and simple, classic form.
LED
DI
IP54
I
yes
yes
yes
yes
Basic information:
Index:
DY001.1111.940.D000
EAN:
5904312951980
Accessories:
Electric suspension kit, Suspension kit 1x
Installation:
Surface mounted
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Clean room
Application:
Social room, Corridor and staircase, Bathroom, Reception, Cloak room, Technical room, Security
Mounting type:
Ceiling mounted, Wall mounted
Technical data
Latte IP54 LED 330x330 19W 1620lm 940 OPAL White DALI
PRODUCT CODE
DY001.1111.940.D000
Copy the code
PRODUCT EAN
5904312951980
Copy the EAN code
Mechanical data
Housing material Plastic
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 17
Electrical data
Light source LED
Luminaire power 19 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver DALI
Emergency module No
Motion sensor No
Information data
Net weight 1.7 kg
Colour White
Power and luminous flux tolerance +/-10%

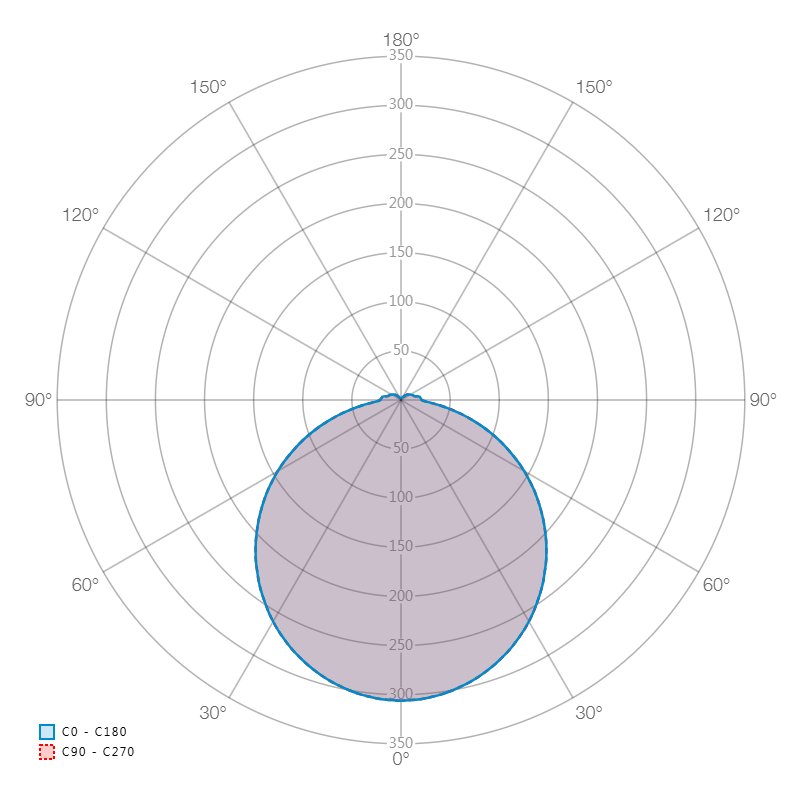

Light data
Luminaire luminous flux 1620 lm
Luminaire's luminous efficacy 85 lm/W
Color rendering index 90
Light distribution DI
Colour temperature 4000K
CRI & colour temperature 940
Certificates
Degree of protection (IP) IP54
Impact resistance IK07
Class of protection I
Light source protection yes
PZH yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W
330 mm 330 mm
L - Length
W - Width
Download
Installation manual
436.45 KB
Download
Product card
1.05 MB
Download
Pobierz wszystkie pliki
Electric elements
Accessories
Electric suspension kit
Installation elements
Accessories
Suspension kit 1x
