Clean room
Latte IP54 LED 1160x110 24W 3010lm 840 OPAL White STD
Luminaire of increased degree of protection and simple, classic form.
Clean room
Latte IP54 LED 1160x110 24W 3010lm 840 OPAL White STD
Luminaire of increased degree of protection and simple, classic form.
LED
DI
IP54
I
yes
yes
yes
yes
Basic information:
Index:
DY002.1111.840.A000
EAN:
5907769492891
Accessories:
Electric suspension kit, Suspension kit 1x
Installation:
Surface mounted
Power:
220 ... 240  V
Categorization:
Technical data
Latte IP54 LED 1160x110 24W 3010lm 840 OPAL White STD
PRODUCT CODE
DY002.1111.840.A000
Copy the code
PRODUCT EAN
5907769492891
Copy the EAN code
Mechanical data
Type of installation Ceiling mounted
Housing material Plastic
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 17
Electrical data
Light source LED
Luminaire power 24 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 2 kg
Colour White
Operating temperature range -20 ... 35
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 3010 lm
Luminaire's luminous efficacy 125 lm/W
Light colour White
Color rendering index 80

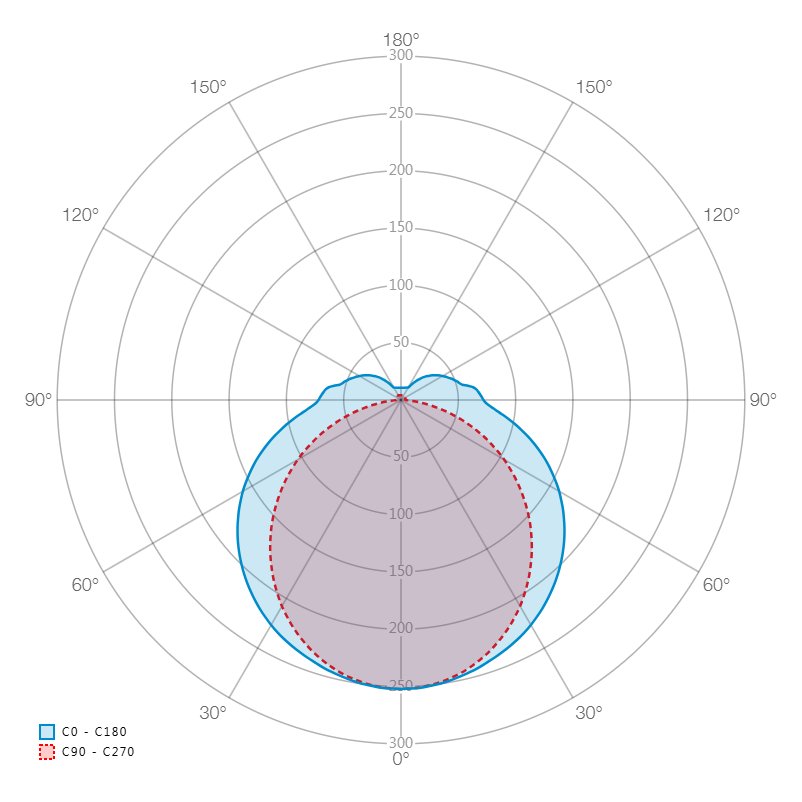

Light distribution Wide beam
Light distribution DI
Class of luminaire I
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
L80/B10 przy 25°C żywotność znamionowa [h] 54000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP54
Impact resistance IK07
Class of protection I
Light source protection yes
PZH yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
1160 mm 110 mm 90 mm
L - Length
W - Width
H - Height / Depth
Download
Installation manual
436.45 KB
Download
Photometric file
2.67 KB
Download
Product card
1.05 MB
Download
Pobierz wszystkie pliki
