Plafonds
Modena Mini LED 10W 1100lm 830 OPAL Grey MW
Modern plafond Modena Mini is an extension of Modena family of luminaires. Highly aesthetic and characteristic for great parameters: resistance to external conditions and UV rays with IP54 degree of protection. Available with AW 3H emergency module. Possibility of application of motion sensor (only in 17W versions) or day light sensor.
Plafonds
Modena Mini LED 10W 1100lm 830 OPAL Grey MW
Modern plafond Modena Mini is an extension of Modena family of luminaires. Highly aesthetic and characteristic for great parameters: resistance to external conditions and UV rays with IP54 degree of protection. Available with AW 3H emergency module. Possibility of application of motion sensor (only in 17W versions) or day light sensor.
LED
DI
IP54
IK10
I
yes
yes
yes
Basic information:
Index:
EA001.2211.830.A001
EAN:
5904312954967
Installation:
Surface mounted, wall mounted.
Power:
220 ... 240  V
Technical data
Modena Mini LED 10W 1100lm 830 OPAL Grey MW
PRODUCT CODE
EA001.2211.830.A001
Copy the code
PRODUCT EAN
5904312954967
Copy the EAN code
Mechanical data
Housing material Plastic
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 18
Electrical data
Light source LED
Luminaire power 10 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module No
Motion sensor MW
Information data
Net weight 1.2 kg
Colour Grey
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1100 lm
Luminaire's luminous efficacy 110 lm/W
Color rendering index 80

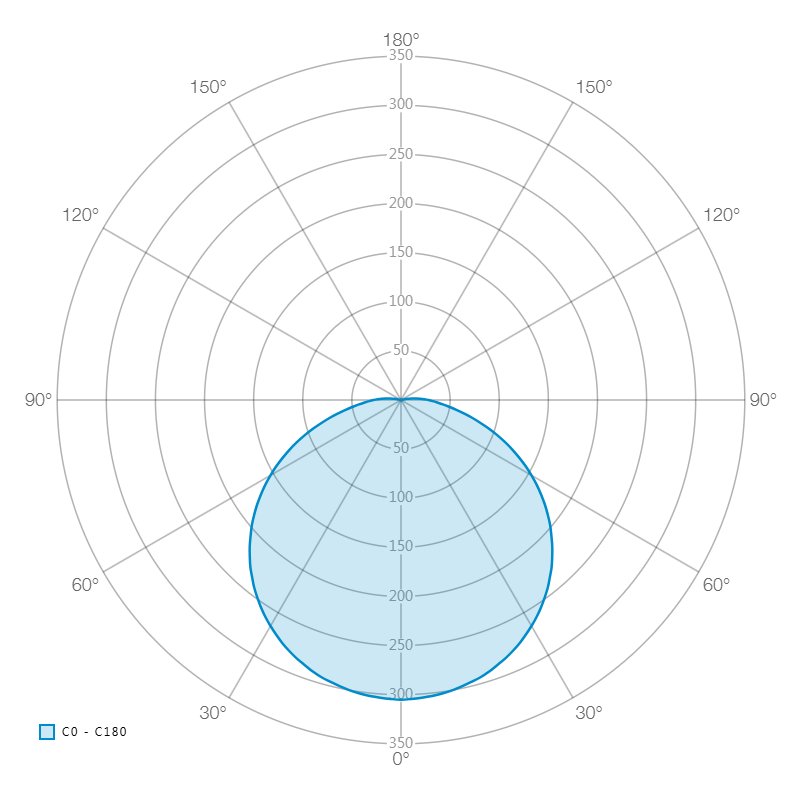

Light distribution DI
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP54
Impact resistance IK10
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
F
315 mm
F - Outer diameter
