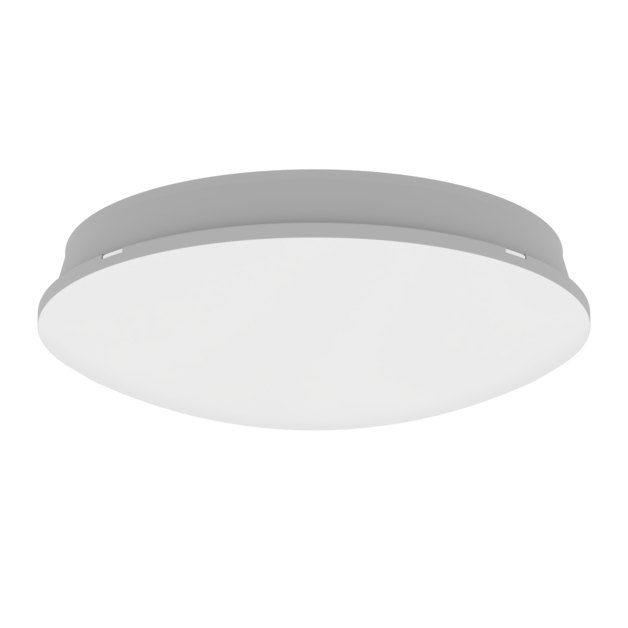

Modena Mini LED 10W 940lm 930 OPAL Grey MW

Plafonds

Modern plafond Modena Mini is an extension of Modena family of luminaires. Highly aesthetic and characteristic for great parameters: resistance to external conditions and UV rays with IP54 degree of protection. Available with AW 3H emergency module. Possibility of application of motion sensor (only in 17W versions) or day light sensor.

Image for the product family

Plafonds

Modena Mini LED 10W 940lm 930 OPAL Grey MW

Basic information:

Index:

EA001.2211.930.A001

EAN:

5904312955001

Installation:

Surface mounted, wall mounted.

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Plafonds

Application:

Office, Conference room, Reception, Commercial premises, Corridor and staircase, Social room, Bathroom, Cloak room, Technical room, Security

Mounting type:

Wall mounted, Ceiling mounted

F
315 mm

315 mm

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic
UGR	18

Light source	LED
Luminaire power	10 W
Type of equipment	AC
Voltage rating	220 ... 240 V
Through wiring	No
Type of driver	ON/OFF
Emergency module	No
Motion sensor	MW

Net weight	1.2 kg
Colour	Grey
Power and luminous flux tolerance	+/-10%

Luminaire luminous flux	940 lm
Luminaire's luminous efficacy	94 lm/W
Color rendering index	90

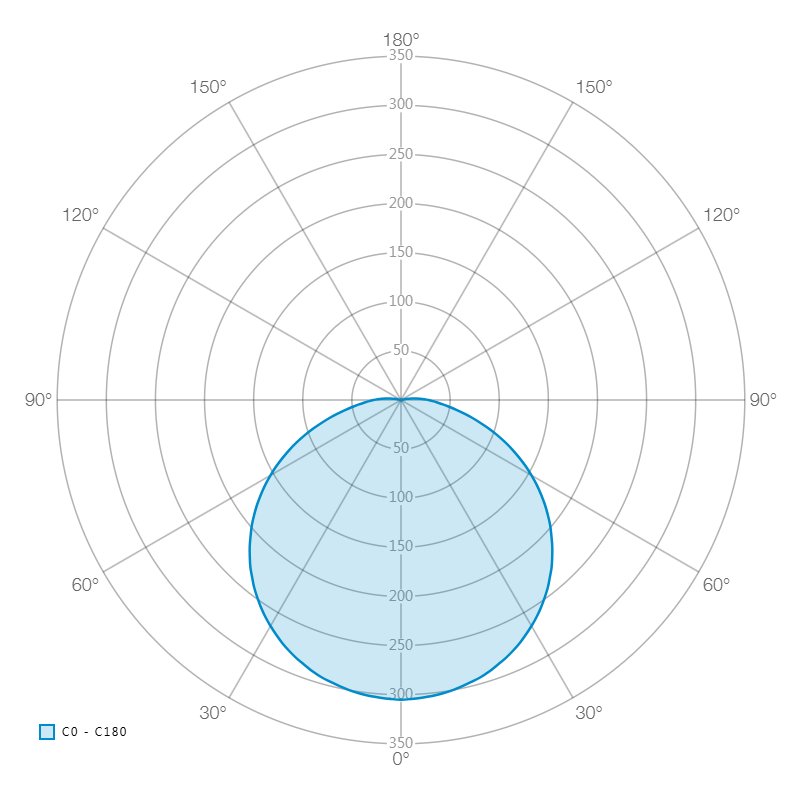

Light distribution	DI
Colour temperature	3000K
CRI & colour temperature	930

Degree of protection (IP)	IP54
Impact resistance	IK10
Class of protection	I
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes
