Technical data Product variants Download Accessories
Modular

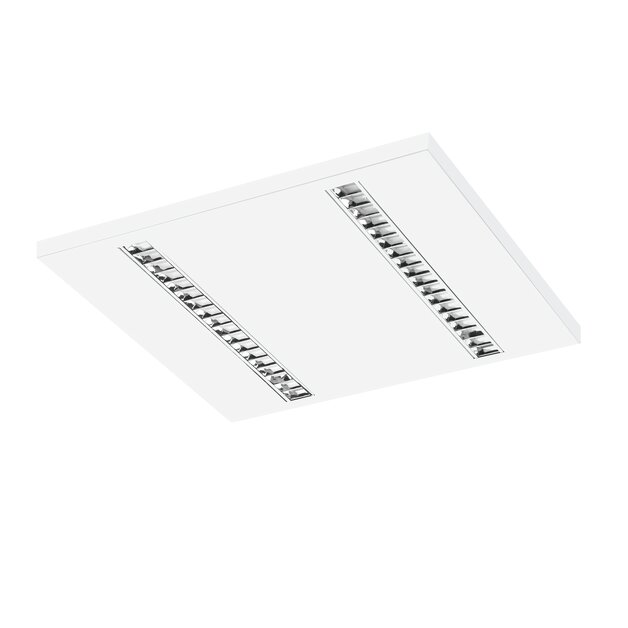

Parabolic NT LED
Go to the variant list (549)
LED
DI
IP20
I
yes
yes
yes
yes
Basic information:
Power:
220 ... 240 V
Categorization:
Type of luminaire:
Modular
Application:
Office, Conference room, Corridor and staircase, Commercial premises, Lecture hall, Classroom, Computer lab, Cloak room, Security, Social room
Mounting type:
Ceiling mounted
Technical data:
Luminaire power:
19 - 42 W
Luminaire luminous flux:
2330 - 4980 lm
Length:
595 mm, 1196 mm
See other technical data
Technical data
Mechanical data
Type of installation Ceiling mounted
Housing material Steel sheet
Optical data
Louver/ diffuser PAR
Diffuser colour Transparent
Diffuser material Prismatic plastic
Louver material Aluminum
Reflector high gloss
UGR 19
Electrical data
Light source LED
Luminaire power 19 - 42 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Power factor 0.98
Type of driver DALI, ON/OFF
Emergency module opcjonalnie
Motion sensor opcjonalnie
Information data
Net weight 6.2 - 7 kg
Colour Black, Grey, White
Power and luminous flux tolerance +/-10%
Inne Lite LED
Info NT 300x1200, NT 600x600
Light data
Luminaire luminous flux 2330 - 4980 lm
Luminaire's luminous efficacy 94 - 150 lm/W
Luminaire's luminous efficiency 84
Light colour White
Color rendering index 80, 90
Direct-/indirect independently controlled no
Light distribution Średniostrumieniowy
Light distribution DI
Class of luminaire I
Light output degradation B10
Lumen maintenance L80, L90
Lifetime 54000 h, 60000 h
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %, 92 %
Colour temperature 2700-6500K, 3000K, 4000K
CRI & colour temperature 830, 840, 8TW, 930, 940
Certificates
Degree of protection (IP) IP20
Impact resistance IK03
Class of protection I
Light source protection no
PZH yes
CE yes
ENEC yes
HACCP+ yes
EAC yes
Product variants
✕
Search
How does the product indexing system work?
AA
002
.
22
11
.
830
.
D
0
0
0
Family
AA ALTO LED
AB ALTO WALL
Type
001 e.g.: 545 mm
002 e.g.: 1085 mm
Colour
11 WHITE RAL 9016
12 WHITE RAL 9010
22 GREY RAL 9006
33 BLACK RAL 9005
44 ANTHRACITE RALBG 452
45 ANTHRACITE RAL 7016
99 OTHER - PERSONALIZATION
Optical system
00 EMPTY
11 OPAL /MILK DIFFUSER/
22 MPRM /MICROPRISMATIC DIFFUSER/
23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/
24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/
33 PAR /PARABOLIC LOUVER/
34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/
44 mPARM /PARABOLIC MINI LOUVER METALLIZED/
45 PARW /PARABOLIC LOUVER WHITE/
46 mPARB /PARABOLIC MINI LOUVER BLACK/
66 RF /REFLECTOR/
67 RM /REFLECTOR METALLIZED/
68 RW /REFLECTOR WHITE/
77 LNS /LENS/
88 SH MAT /MATTE TEMPERED GLASS/
89 SH /TEMPERED GLASS/
CRI / Colour temp.
827
830 CRI ≥ 80; CCT 3000K
835 CRI ≥ 80; CCT 3500K
840 CRI ≥ 80; CCT 4000K
850 CRI ≥ 80; CCT 5000K
857 CRI ≥ 80; CCT 5700K
865 CRI ≥ 80; CCT 6500K
8TW CRI ≥ 80; Tunable white
927 CRI ≥ 90; CCT 2700K
930 CRI ≥ 90; CCT 3000K
935 CRI ≥ 90; CCT 3500K
940 CRI ≥ 90; CCT 4000K
950 CRI ≥ 90; CCT 5000K
957 CRI ≥ 90; CCT 5700K
965 CRI ≥ 90; CCT 6500K
9TW CRI ≥ 90; Tunable white
RGB RGB
Driver
A ON/OFF /WITHOUT REGULATION/
D HO /DRIVER WITH PREDEFINED SETTING/
H DSI
E HE /DRIVER WITH PREDEFINED SETTING/
F HO DALI /DRIVER WITH PREDEFINED SETTING/
G HE DALI /DRIVER WITH PREDEFINED SETTING/
K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/
I CF /CORRIDOR FUNCTION - STEP DIMMING/
C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/
X 1-10V /ADJUSTABLE/
S DMX
V sDIMM
Emergency module
0 WITHOUT EMERGENCY MODULE
1 EM1H ST /SELFTEST/
2 EM3H ST /SELFTEST/
3 EM1H BASIC
4 EM3H BASIC
5 EM1H PRO /DALI/
6 EM3H PRO /DALI/
Through wiring
0 WITHOUT THROUGH WIRING
1 TH3 /3-PHASE THROUGH WIRING/
2 TH5 /5-PHASE THROUGH WIRING/
3 TH7 /7-PHASE THROUGH WIRING/
4 WI /WIELAND/
5 WI TH /THROUGH WIRING/
Motion sensor
0 WITHOUT MOTION SENSOR
1 MW PRO /PASSIVE INFRARED - STEP DIMM/
2 PIR /INFRARED/
Technical data
Dimensions
Filtry
Filtrowanie po parametrach
Parametry
Luminaire power
Show products
Luminous flux
Show products
CRI / Colour temp.
Select all
Reset
Show products
Driver
Select all
Reset
Show products
Emergency module
Select all
Reset
Show products
Colour
Select all
Reset
Show products
Length
Show products
Width
Show products
Type of family
Select all
Reset
Show products
Anuluj
Show products
Show products
Index
Luminaire power
Luminaire luminous flux
Luminaire's luminous efficacy
Louver/ diffuser
[Układ optyczny]
CRI & colour temperature
Colour
Type of driver
Emergency module
Type of family
BV001.1133.830.A000
Copy the code
Open in new window
40 W 4880 lm 122 lm/W PAR 830
White
 ON/OFF No 3x 600x600
BV001.1133.830.A100
Copy the code
Open in new window
40 W 4880 lm 122 lm/W PAR 830
White
 ON/OFF EM1H ST 3x 600x600
BV001.1133.830.A200
Copy the code
Open in new window
40 W 4880 lm 122 lm/W PAR 830
White
 ON/OFF EM3H ST 3x 600x600
BV001.1133.830.D000
Copy the code
Open in new window
40 W 4880 lm 122 lm/W PAR 830
White
 DALI No 3x 600x600
BV001.1133.830.D100
Copy the code
Open in new window
40 W 4880 lm 122 lm/W PAR 830
White
 DALI EM1H ST 3x 600x600
BV001.1133.830.D200
Copy the code
Open in new window
40 W 4880 lm 122 lm/W PAR 830
White
 DALI EM3H ST 3x 600x600
BV001.1133.840.A000
Copy the code
Open in new window
40 W 4980 lm 125 lm/W PAR 840
White
 ON/OFF No 3x 600x600
BV001.1133.840.A100
Copy the code
Open in new window
40 W 4980 lm 125 lm/W PAR 840
White
 ON/OFF EM1H ST 3x 600x600
BV001.1133.840.A200
Copy the code
Open in new window
40 W 4980 lm 125 lm/W PAR 840
White
 ON/OFF EM3H ST 3x 600x600
BV001.1133.840.D000
Copy the code
Open in new window
40 W 4980 lm 125 lm/W PAR 840
White
 DALI No 3x 600x600
BV001.1133.840.D100
Copy the code
Open in new window
40 W 4980 lm 125 lm/W PAR 840
White
 DALI EM1H ST 3x 600x600
BV001.1133.840.D200
Copy the code
Open in new window
40 W 4980 lm 125 lm/W PAR 840
White
 DALI EM3H ST 3x 600x600
BV001.1133.8TW.D000
Copy the code
Open in new window
28 W 3490 lm 125 lm/W PAR 8TW
White
 DALI No 3x 600x600
BV001.1133.930.A000
Copy the code
Open in new window
40 W 4150 lm 104 lm/W PAR 930
White
 ON/OFF No 3x 600x600
BV001.1133.930.A100
Copy the code
Open in new window
40 W 4150 lm 104 lm/W PAR 930
White
 ON/OFF EM1H ST 3x 600x600
Displaying items: 15 of 549
of 37
15
15
50
100
per page
Download
Photometric file
19.67 KB
Download
