Technical data Download Accessories
Industrial

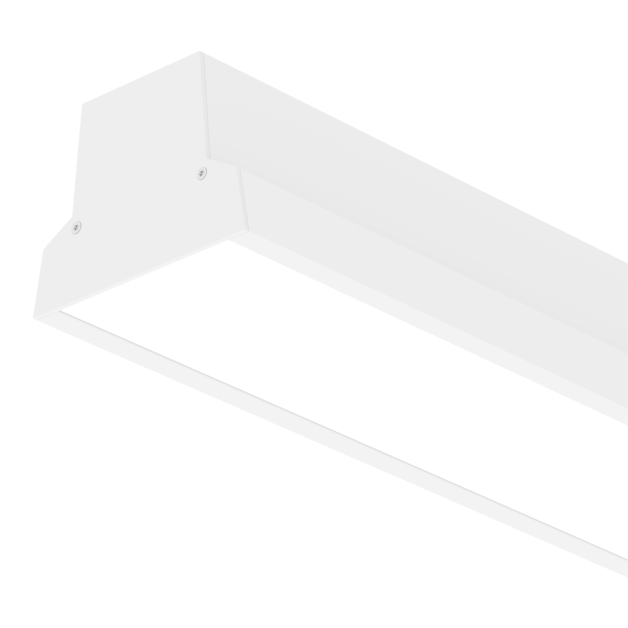

Poker LS LED 1200 47W 5510lm 840 OPAL White STD
Industrial luminaire for LED light sources for inline installation. Luminaire has a simple way of installation without use of additional tools. Thanks to the usage of LED light sources the luminaire is lighter, it’s exploitation is more energy efficient. Aluminum reflector optimizes light distribution. Designed for lighting service spaces, warehouses and supermarkets.
Industrial
Poker LS LED 1200 47W 5510lm 840 OPAL White STD
Industrial luminaire for LED light sources for inline installation. Luminaire has a simple way of installation without use of additional tools. Thanks to the usage of LED light sources the luminaire is lighter, it’s exploitation is more energy efficient. Aluminum reflector optimizes light distribution. Designed for lighting service spaces, warehouses and supermarkets.
LED
DI
IP20
I
yes
yes
yes
Basic information:
Index:
AM001.1111.840.A000
EAN:
5907769475863
Accessories:
Poker LS LED End cap, Poker LS LED Masking Cover, Electric suspension kit, Suspension kit 1x
Installation:
Suspended.
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Industrial
Application:
Commercial premises, Social room, Production hall
Mounting type:
Pendant
Technical data
Poker LS LED 1200 47W 5510lm 840 OPAL White STD
PRODUCT CODE
AM001.1111.840.A000
Copy the code
PRODUCT EAN
5907769475863
Copy the EAN code
Mechanical data
Type of installation Suspended
Housing material Aluminum
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
Reflector high gloss
UGR 23
Electrical data
Light source LED
Luminaire power 47 W
Number of light sources 1
Type of equipment AC
For emergency lighting yes
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Power factor 0.97
Type of driver ON/OFF
Emergency module No
Motion sensor No
Connection block 5 PIN
Information data
Net weight 3.25 kg
Colour White
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 5510 lm
Luminaire's luminous efficacy 117 lm/W
Light colour White
Color rendering index 80
Direct-/indirect independently controlled no
Light distribution Wide beam
Light distribution DI
Class of luminaire I
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) IP20
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
1200 mm 100 mm 75 mm
L - Length
W - Width
H - Height / Depth
Download
Installation manual
458.58 KB
Download
Photometric file
1.51 KB
Download
Product card
Download
Pobierz wszystkie pliki
