Industrial
Poker Q LS LED 1692mm 90° 37W 4930lm 930 LNS White TH5
Industrial lighting line. Fast-linkage system.
Industrial
Poker Q LS LED 1692mm 90° 37W 4930lm 930 LNS White TH5
Industrial lighting line. Fast-linkage system.
LED
DI
IP20
I
yes
yes
yes
Basic information:
Index:
EV001.1177.930.A020
EAN:
5904349090584
Accessories:
Poker Q LS LED End cap, POKER Q LS LED blank infill, POKER Q LS LED Blank infill for Point LED, Poker LS LED Pusty moduł konstrukcyjny, Poker LS Q LED Empty Structural Module, Poker Q LS LED Masking cover White 1132mm, Poker Q LS LED Masking Cover, Electric suspension kit, POKER Q LS LED Joiner 90°, POKER Q LS LED joining set 120°, Suspension kit 1x, Poker LS Q LED Wspornik modułu awaryjnego, Poker Q LS LED Surface mounting set, Poker Q LS LED Wall suspension White set 2pcs
Installation:
suspended, surfaced mounted (accessories NT joint)
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Industrial
Application:
Commercial premises, Social room, Production hall
Mounting type:
Ceiling mounted, Pendant
Technical data Download Accessories
Technical data
Poker Q LS LED 1692mm 90° 37W 4930lm 930 LNS White TH5
PRODUCT CODE
EV001.1177.930.A020
Copy the code
PRODUCT EAN
5904349090584
Copy the EAN code
Mechanical data
Type of installation Suspended
Housing material Aluminum
Designed for light-line yes
Optical data
Louver/ diffuser LNS
Optical system 90°
UGR 21
Electrical data
Light source LED
Luminaire power 37 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring TH5
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 2.8 kg
Colour White
Power and luminous flux tolerance +/-10%
Inne 1692 mm
Info SYM 90°

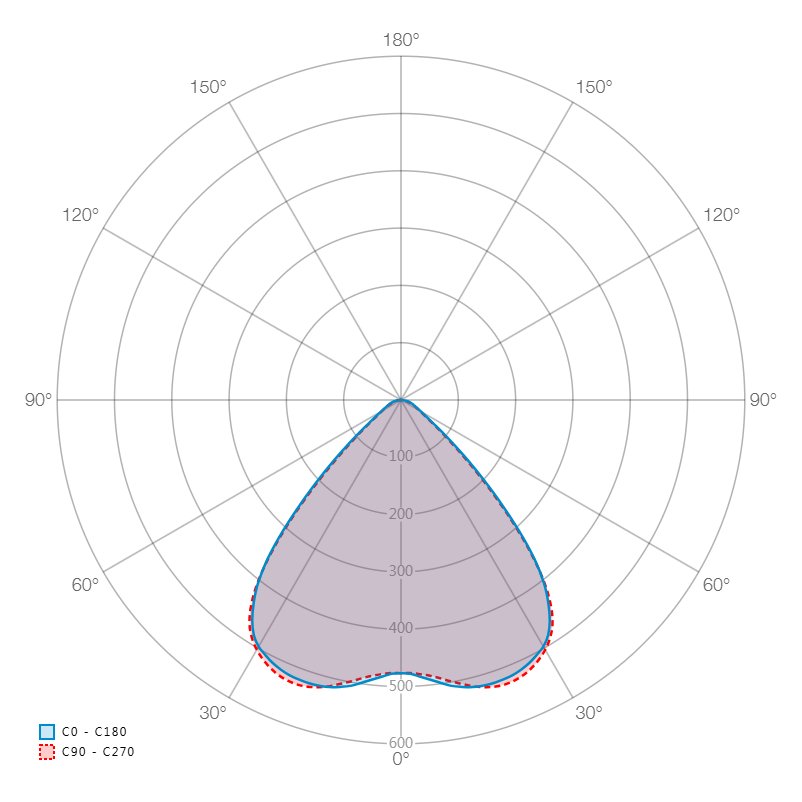

Light data
Luminaire luminous flux 4930 lm
Luminaire's luminous efficacy 133 lm/W
Light colour White
Color rendering index 90
Light distribution DI
Beam angle 90°
Light output degradation B10
Lumen maintenance L80
Colour temperature 3000K
CRI & colour temperature 930
Certificates
Degree of protection (IP) IP20
Impact resistance IK04
Class of protection I
Power Flicker =< 3%
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
1692 mm 74 mm 54 mm
L - Length
W - Width
H - Height / Depth
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
704.17 KB
Download
EC Declaration of conformity
Download
Photometric file
3.57 KB
Download
Pobierz wszystkie pliki
