Linear
Presto LED DI-IN 1145 46W 3700/2360lm 830 PAR White DALI LW

A functional LED lighting system made of steel sheet. Only for PAR-S versions: thanks to the linear joints (not in the set) the luminaire can be easily connected in line. OPAL and MPRM versions appear as separate luminaires.

Image for the product family
Linear
Presto LED DI-IN 1145 46W 3700/2360lm 830 PAR White DALI LW

A functional LED lighting system made of steel sheet. Only for PAR-S versions: thanks to the linear joints (not in the set) the luminaire can be easily connected in line. OPAL and MPRM versions appear as separate luminaires.

LED
DI/IN
IP20
I
yes
yes
yes
Basic information:
Index:
CC003.1133.830.D060
EAN:
5904312804958
Accessories:
Presto LED End cap, Electric suspension kit, Electric suspension kit - Y, Presto LED Linear joining set, Suspension kit 1x, Suspension kit 1x - Y
Installation:
suspended
Power:
220 ... 240  V
Technical data
Presto LED DI-IN 1145 46W 3700/2360lm 830 PAR White DALI LW
PRODUCT CODE
CC003.1133.830.D060
Copy the code
PRODUCT EAN
5904312804958
Copy the EAN code
Mechanical data
Housing material Steel sheet
Designed for light-line yes
Optical data
Louver/ diffuser PAR
Diffuser colour Transparent
Diffuser material Prismatic plastic
Louver material Aluminum
Reflector high gloss
UGR 16
Electrical data
Light source LED
Luminaire power 46 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring LW
Type of driver DALI
Emergency module No
Motion sensor No
Information data
Net weight 2.45 kg
Colour White
Power and luminous flux tolerance +/-10%

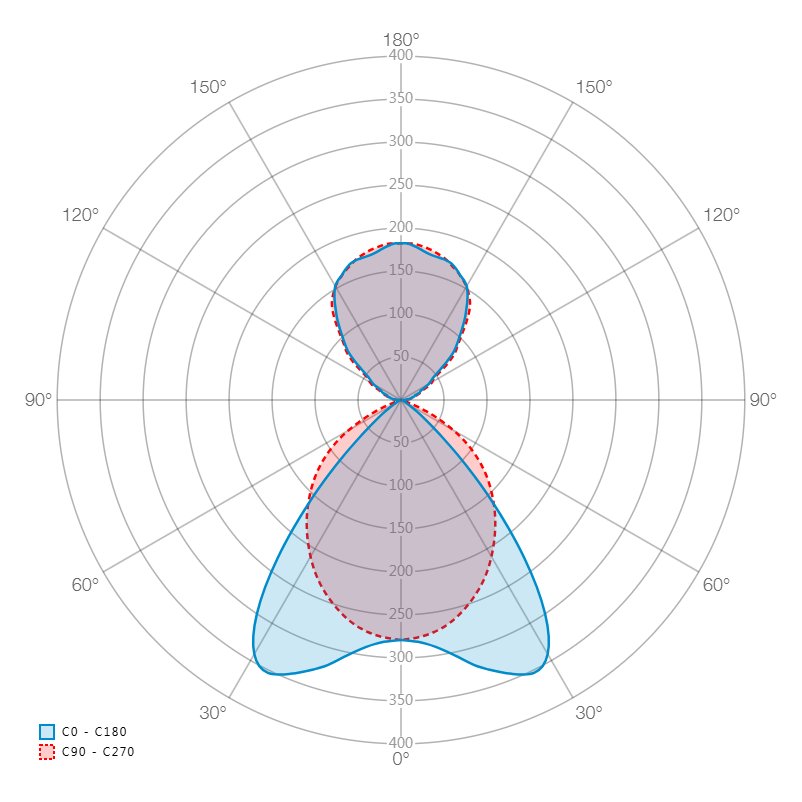

Light data
Luminaire luminous flux DI 3700 lm
Luminaire luminous flux IN 2360 lm
Luminaire's luminous efficacy 132 lm/W
Color rendering index 80
Light distribution DI/IN
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP20
Impact resistance IK03
Class of protection I
Light source protection no
CE yes
HACCP+ yes
EAC yes
Dimensions
L W
1145 mm 125 mm
L - Length
W - Width
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
837.98 KB
Download
EC Declaration of conformity
Download
Pobierz wszystkie pliki
