Decorative

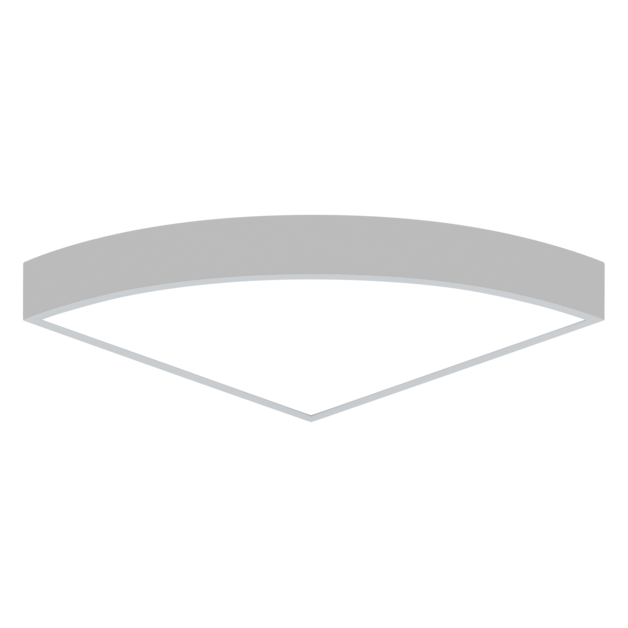

Quarter LED 13W 1150lm 830 OPAL Grey
A family of LED luminaires in the shape of 1/4 circle slice. Thanks to their modern and universal shape, QUARTER LED luminaires can be used in any type of space inside a building. Their main characteristics are a uniform luminance all over the OPAL diffuser and a high-quality lighting performance
Decorative
Quarter LED 13W 1150lm 830 OPAL Grey
A family of LED luminaires in the shape of 1/4 circle slice. Thanks to their modern and universal shape, QUARTER LED luminaires can be used in any type of space inside a building. Their main characteristics are a uniform luminance all over the OPAL diffuser and a high-quality lighting performance
LED
ON/OFF
DI
IP20
IK04
I
yes
yes
Basic information:
Index:
DB001.2211.830.A000
EAN:
5907671374186
Accessories:
Electric suspension kit, Suspension kit 1x
Installation:
suspended (suspensions 1,5 m in set)
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Decorative
Application:
Office, Conference room, Reception, Commercial premises, Corridor and staircase
Mounting type:
Pendant
Technical data Download Accessories
Technical data
Quarter LED 13W 1150lm 830 OPAL Grey
PRODUCT CODE
DB001.2211.830.A000
Copy the code
PRODUCT EAN
5907671374186
Copy the EAN code
Mechanical data
Type of installation Suspended
Housing material Aluminum
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
Electrical data
Light source LED
Luminaire power 13 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Power factor 0.96
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 2.8 kg
Colour Grey
RAL - any color from the palette yes
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 1150 lm
Luminaire's luminous efficacy 88 lm/W
Luminaire's luminous efficiency 60
Light colour White
Color rendering index 80
Light distribution DI
MacAdam SDCM 3
Lifetime L80B10 @25°C 100000 h
Lifetime L90B10 @25°C 64000 h
Lamp Lumen Maintenance Factor (after 60 000h) 86 %
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP20
Impact resistance IK04
Class of protection I
Power Flicker =< 3%
Light source protection yes
CE yes
HACCP+ yes
Dimensions
L W H
400 mm 400 mm 62 mm
L - Length
W - Width
H - Height / Depth
Download
Catalogue card
Download
Family datasheet
Download
Family datasheet extended
Download
Installation manual
246.17 KB
Download
EC Declaration of conformity
Download
Photometric file
2.17 KB
Download
Pobierz wszystkie pliki
Electric elements
Accessories
Electric suspension kit
Installation elements
Accessories
Suspension kit 1x
