Clean room

Roma Clean IP65 LED

Series of luminaires recommended for industrial areas and for clean rooms where increased IP protection degree is required. Luminaires are available both in CRI>80 and increased CRI>90. Luminaires dedicated for installation in recessed and 600x600 ceiling with visible grid. Luminaire is suitable for use in cleanrooms fulfilling the specification of air cleanliness ISO Class 3 - 9 according to ISO 14644-1:2015. Qualification certificate "ISO 14644-14 Cleanroom suitability test: particle emission test"

Clean room

Roma Clean IP65 LED

Series of luminaires recommended for industrial areas and for clean rooms where increased IP protection degree is required. Luminaires are available both in CRI>80 and increased CRI>90. Luminaires dedicated for installation in recessed and 600x600 ceiling with visible grid. Luminaire is suitable for use in cleanrooms fulfilling the specification of air cleanliness ISO Class 3 - 9 according to ISO 14644-1:2015. Qualification certificate "ISO 14644-14 Cleanroom suitability test: particle emission test"

Go to the variant list (830)

LED

yes

yes

yes

yes

Basic information:

Materials:

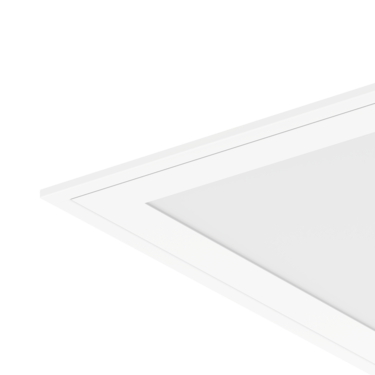

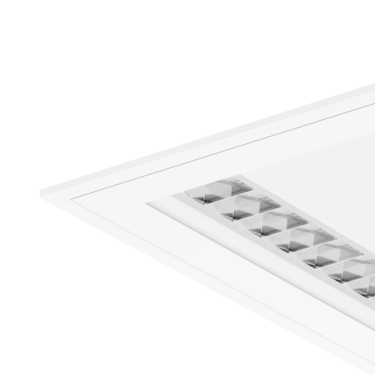

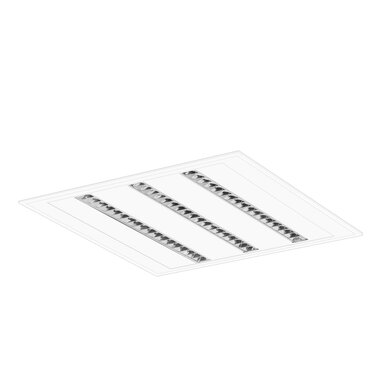

Powder painted housing made of galvanized steel sheets (standard color: white), microprismatic diffuser (MPRM) made of PMMA, OPAL diffuser made of polycarbonate, tempered glass (SH MAT), parabolic (PAR) louver.

Installation:

Into modular ceilings 600x600, plaster-cardboard ceilings.

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Clean room

Application:

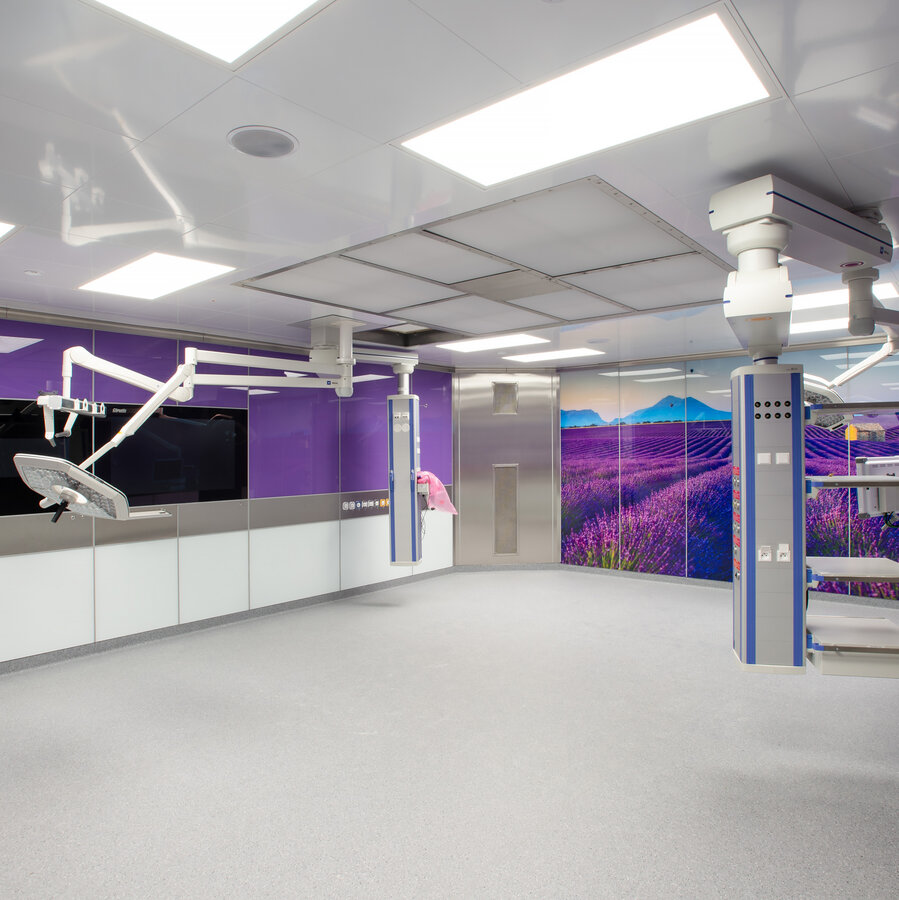

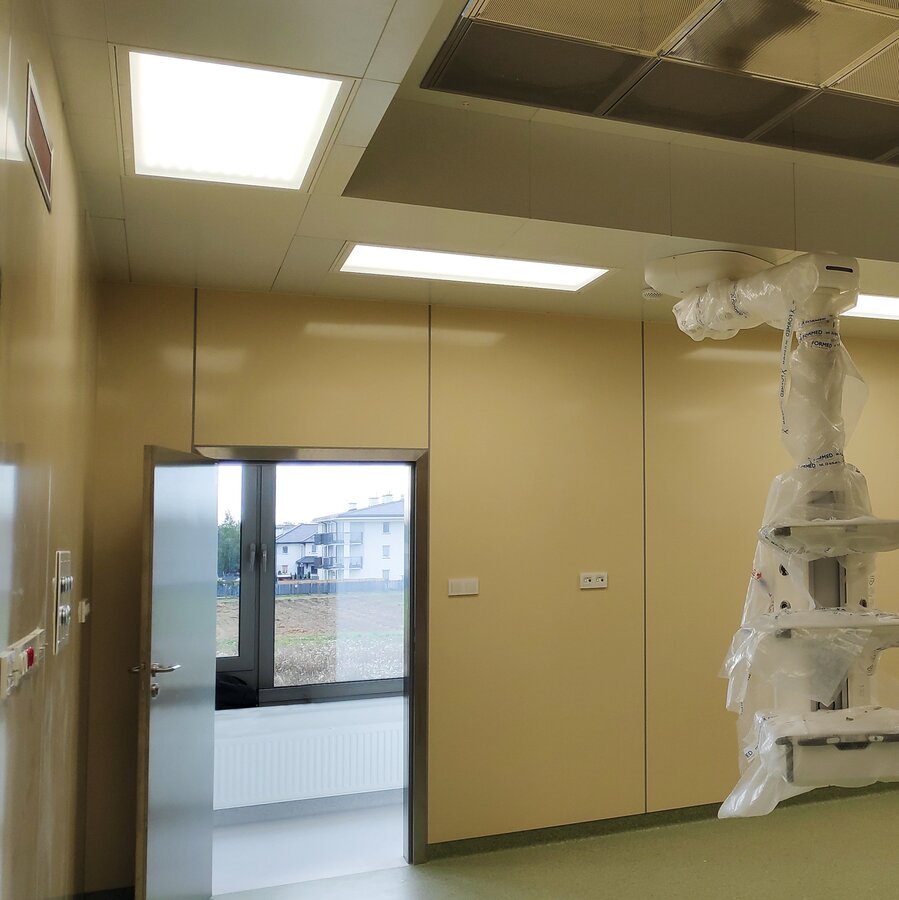

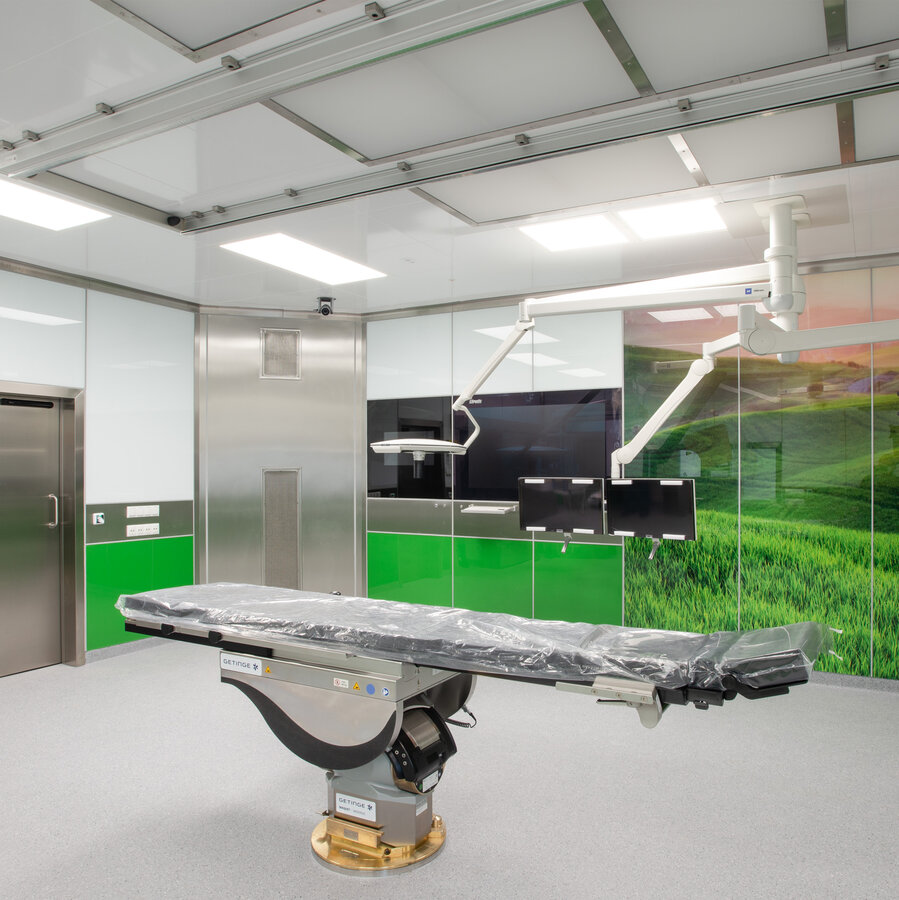

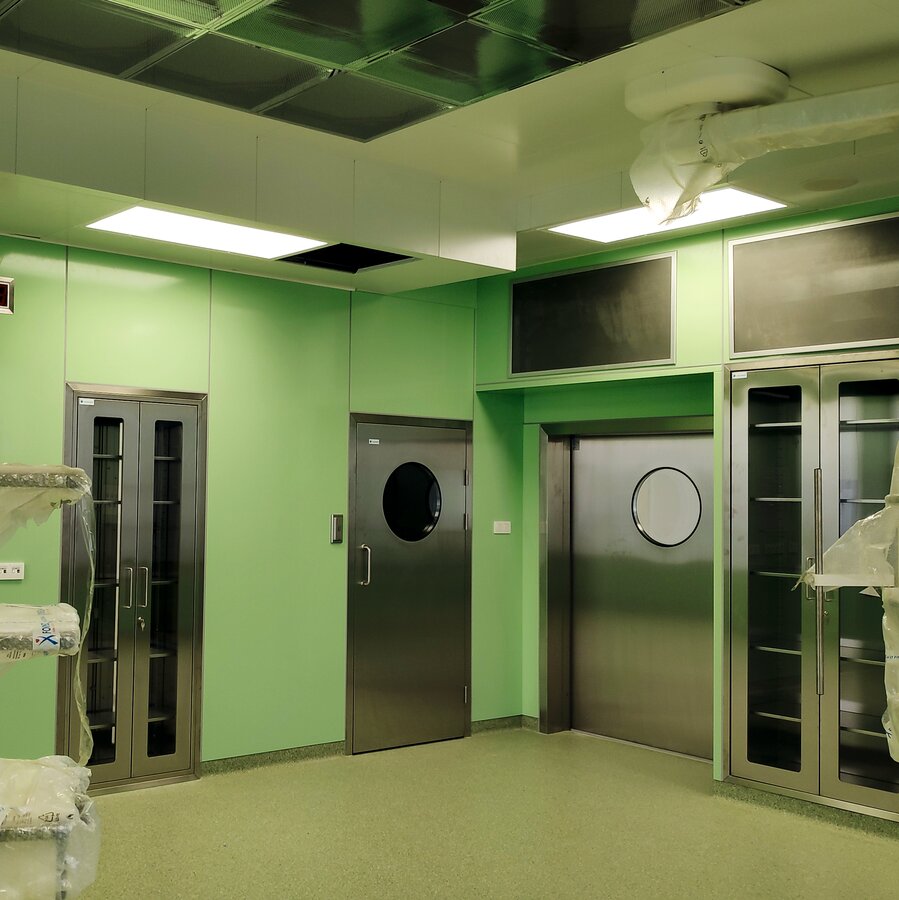

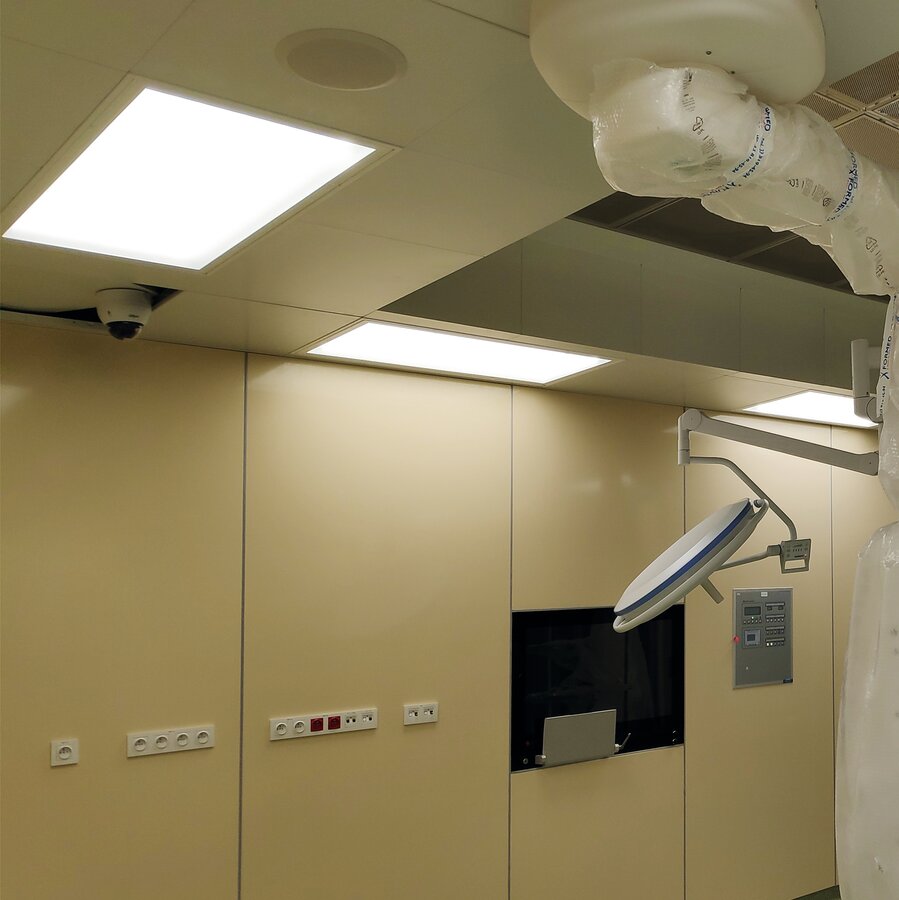

Laboratory, Treatment rooms, Operating theatre, Doctor's office, Infirmary, Technical room, Swimming pool, Production hall

Mounting type:

Modular recessed

Technical data:

Luminaire power:

40 - 100 W

Luminaire luminous flux:

4050 - 12120 lm

Length:

595 mm, 1195 mm

See other technical data

Technical data

Mechanical data

Type of installation	For 600x600 ceiling
Housing material	Steel sheet
Designed for light-line	yes

Optical data

Louver/ diffuser	MPRM, OPAL, PAR, PAR SH, SH MAT
Louver material	Aluminum
Reflector	high gloss
UGR	15, 16, 17, 19, 20, 22

Electrical data

Light source	LED
Luminaire power	40 - 100 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Power factor	0.96
Type of driver	DALI, HE, HO, ON/OFF
Emergency module	opcjonalnie
Motion sensor	opcjonalnie

Information data

Net weight	6.8 - 12.4 kg
Colour	Black, White
RAL - dowolny kolor z palety	yes
Power and luminous flux tolerance	+/-10%

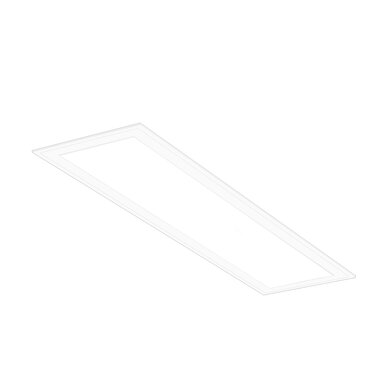

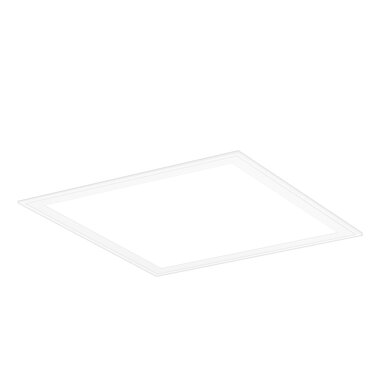

Info	300x1200, 600x1200, 600x600

Light data

Luminaire luminous flux	4050 - 12120 lm
Luminaire's luminous efficacy	94 - 146 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	DI
Class of luminaire	I
Light output degradation	B10
Lumen maintenance	L80
Lifetime	54000 h
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	85 %
Colour temperature	2700-6500K, 3000K, 4000K
CRI & colour temperature	830, 840, 8TW, 930, 940

Certificates

Degree of protection (IP)	IP65
Degree of protection (IP) /top/	IP65
Degree of protection (IP) /bottom/	IP65
Impact resistance	IK08, IK10
Class of protection	I
Power Flicker	=< 3%
PZH	yes
CE	yes
HACCP+	yes
EAC	yes
ISO 14644-14 (air cleanliness ISO Class 3 - 9)	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D HO /DRIVER WITH PREDEFINED SETTING/

H DSI

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

X 1-10V /ADJUSTABLE/

S DMX

V sDIMM

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Type of family
CG001.1111.830.A000 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	ON/OFF	No	43W 600x600
CG001.1111.830.A040 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	ON/OFF		43W 600x600
CG001.1111.830.A100 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	ON/OFF	EM1H ST	43W 600x600
CG001.1111.830.A140 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	ON/OFF	EM1H ST	43W 600x600
CG001.1111.830.A200 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	ON/OFF	EM3H ST	43W 600x600
CG001.1111.830.A240 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	ON/OFF	EM3H ST	43W 600x600
CG001.1111.830.D000 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	DALI	No	43W 600x600
CG001.1111.830.D040 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	DALI		43W 600x600
CG001.1111.830.D100 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	DALI	EM1H ST	43W 600x600
CG001.1111.830.D140 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	DALI	EM1H ST	43W 600x600
CG001.1111.830.D200 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	DALI	EM3H ST	43W 600x600
CG001.1111.830.D240 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	DALI	EM3H ST	43W 600x600
CG001.1111.830.E040 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	HE		43W 600x600
CG001.1111.830.E140 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	HE	EM1H ST	43W 600x600
CG001.1111.830.E240 Copy the code Open in new window	43 W	4950 lm	115 lm/W	OPAL	830	White	HE	EM3H ST	43W 600x600

Displaying items: 15 of 830
