Clean room
Roma IP54 LED 600x600 38W 4250lm 840 OPAL White STD
Series of luminaires recommended for rooms where increased IP protection degree is required. Luminaire dedicated for installation in 600x600 ceiling with visible grid and with OPAL diffuser.
Clean room
Roma IP54 LED 600x600 38W 4250lm 840 OPAL White STD
Series of luminaires recommended for rooms where increased IP protection degree is required. Luminaire dedicated for installation in 600x600 ceiling with visible grid and with OPAL diffuser.
LED
DI
IP20
IP54
I
yes
yes
yes
Basic information:
Index:
CF001.1111.840.A000
EAN:
5907769499036
Installation:
suspended 600x600 ceilings with visible supporting frame
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Clean room
Application:
Bathroom, Corridor and staircase, Cloak room, Technical room, Security, Social room
Mounting type:
Modular recessed
Technical data
Roma IP54 LED 600x600 38W 4250lm 840 OPAL White STD
PRODUCT CODE
CF001.1111.840.A000
Copy the code
PRODUCT EAN
5907769499036
Copy the EAN code
Mechanical data
Type of installation For 600x600 ceiling
Housing material Steel sheet
Optical data
Louver/ diffuser OPAL
Diffuser colour White
Diffuser material Opal/mat plastic
UGR 18
Electrical data
Light source LED
Luminaire power 38 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Light source included yes
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 4.6 kg
Colour White
Operating temperature range 0 ... 35
Power and luminous flux tolerance +/-10%
Info 600x600
Light data
Luminaire luminous flux 4250 lm
Luminaire's luminous efficacy 112 lm/W
Luminaire's luminous efficiency 71
Light colour White
Color rendering index 80

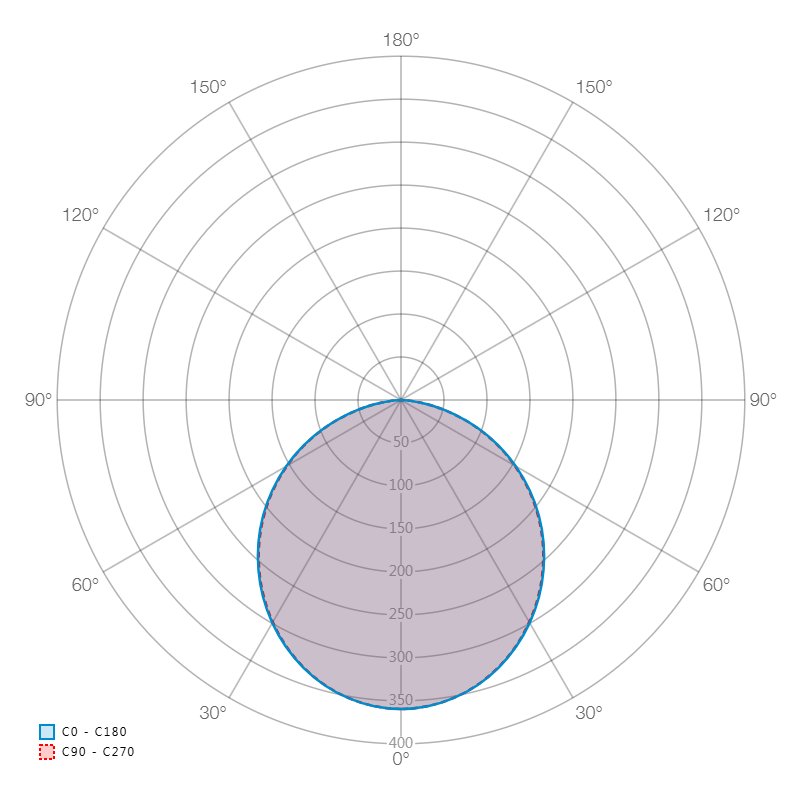

Light distribution Wide beam
Light distribution DI
Class of luminaire I
Light output degradation B10
Lumen maintenance L80
Lifetime 54000 h
MacAdam SDCM 3
L80/B10 przy 25°C żywotność znamionowa [h] 54000 h
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 4000K
CRI & colour temperature 840
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP54
Impact resistance IK04
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
595 mm 595 mm 80 mm
L - Length
W - Width
H - Height / Depth
Download
Installation manual
541.91 KB
Download
Photometric file
876 B
Download
Product card
Download
Pobierz wszystkie pliki
