Technical data Download
Clean room
Roma IP54 LED 600x600 38W 4140lm 940 MPRM White
Series of luminaires recommended for rooms where increased IP protection degree is required. Luminaire dedicated for installation in 600x600 ceiling with visible grid and with OPAL diffuser.
Image for the product family
Clean room
Roma IP54 LED 600x600 38W 4140lm 940 MPRM White
Series of luminaires recommended for rooms where increased IP protection degree is required. Luminaire dedicated for installation in 600x600 ceiling with visible grid and with OPAL diffuser.
LED
DI
IP20
IP54
I
yes
yes
yes
Basic information:
Index:
CF001.1122.940.A000
EAN:
5904349136862
Installation:
suspended 600x600 ceilings with visible supporting frame
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Clean room
Application:
Bathroom, Corridor and staircase, Cloak room, Technical room, Security, Social room
Mounting type:
Modular recessed
Technical data
Roma IP54 LED 600x600 38W 4140lm 940 MPRM White
PRODUCT CODE
CF001.1122.940.A000
Copy the code
PRODUCT EAN
5904349136862
Copy the EAN code
Mechanical data
Housing material Steel sheet
Optical data
Louver/ diffuser MPRM
Diffuser colour Transparent
Diffuser material Prismatic plastic
Electrical data
Light source LED
Luminaire power 38 W
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring No
Type of driver ON/OFF
Emergency module No
Motion sensor No
Information data
Net weight 4.6 kg
Colour White
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 4140 lm
Luminaire's luminous efficacy 109 lm/W
Color rendering index 90

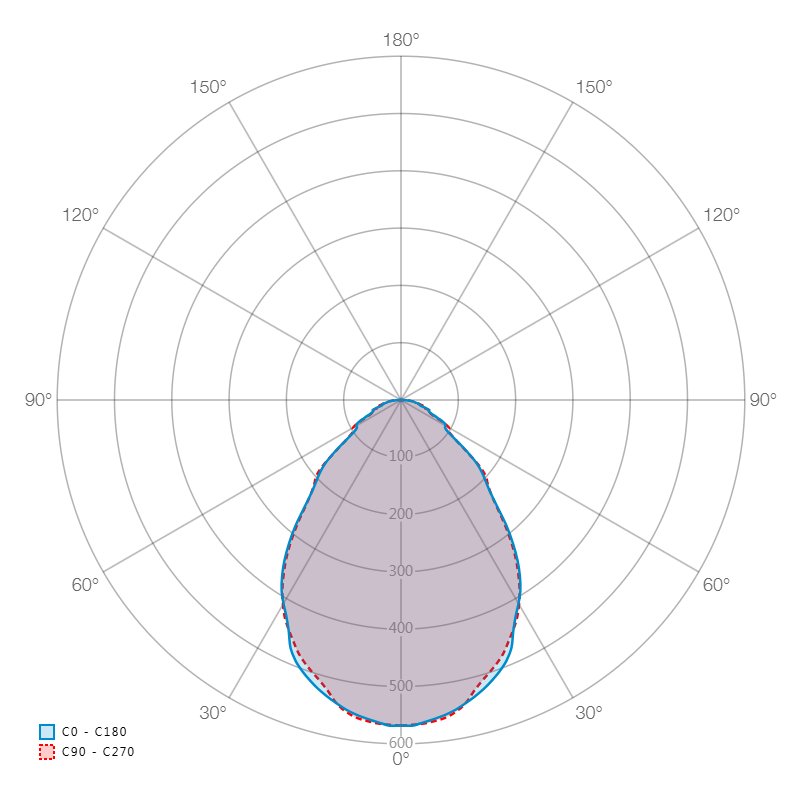

Light distribution DI
Colour temperature 4000K
CRI & colour temperature 940
Certificates
Degree of protection (IP) /top/ IP20
Degree of protection (IP) /bottom/ IP54
Class of protection I
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W
595 mm 595 mm
L - Length
W - Width
Download
Installation manual
541.91 KB
Download
Product card
1.05 MB
Download
Pobierz wszystkie pliki
