Plafonds

Siena LED

Modern plafond SIENA LED - highly aesthetic and characteristic for great parameters: resistance to external conditions and UV rays with IP65 degree of protection. Available with AW 1H and AW 3H emergency module and motion sensor.

Plafonds

Siena LED

Modern plafond SIENA LED - highly aesthetic and characteristic for great parameters: resistance to external conditions and UV rays with IP65 degree of protection. Available with AW 1H and AW 3H emergency module and motion sensor.

Go to the variant list (197)

LED

IP65

IK10

yes

yes

yes

yes

yes

Basic information:

Materials:

White version: base and diffuser made of white polycarbonate PC with UV stabilization wich protects the luminaire against yellowing. Grey version: grey base, OPAL diffuser made of polycarbonate with UV stabilization wich protects the luminaire against yellowing. Black version: black base, OPAL diffuser made of polycarbonate with UV stabilization wich protects the luminaire against yellowing.

Installation:

Surface mounted, wall mounted

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Plafonds

Application:

Office, Conference room, Reception, Commercial premises, Corridor and staircase, Social room, Bathroom, Cloak room, Technical room, Security

Mounting type:

Wall mounted, Ceiling mounted

Technical data:

Luminaire power:

11 - 23 W

Luminaire luminous flux:

1580 - 3610 lm

Outer diameter:

330 mm

See other technical data

Description of the product's family

SIENA LED has an ENEC certificate issued by the independent testing laboratory No. 28.

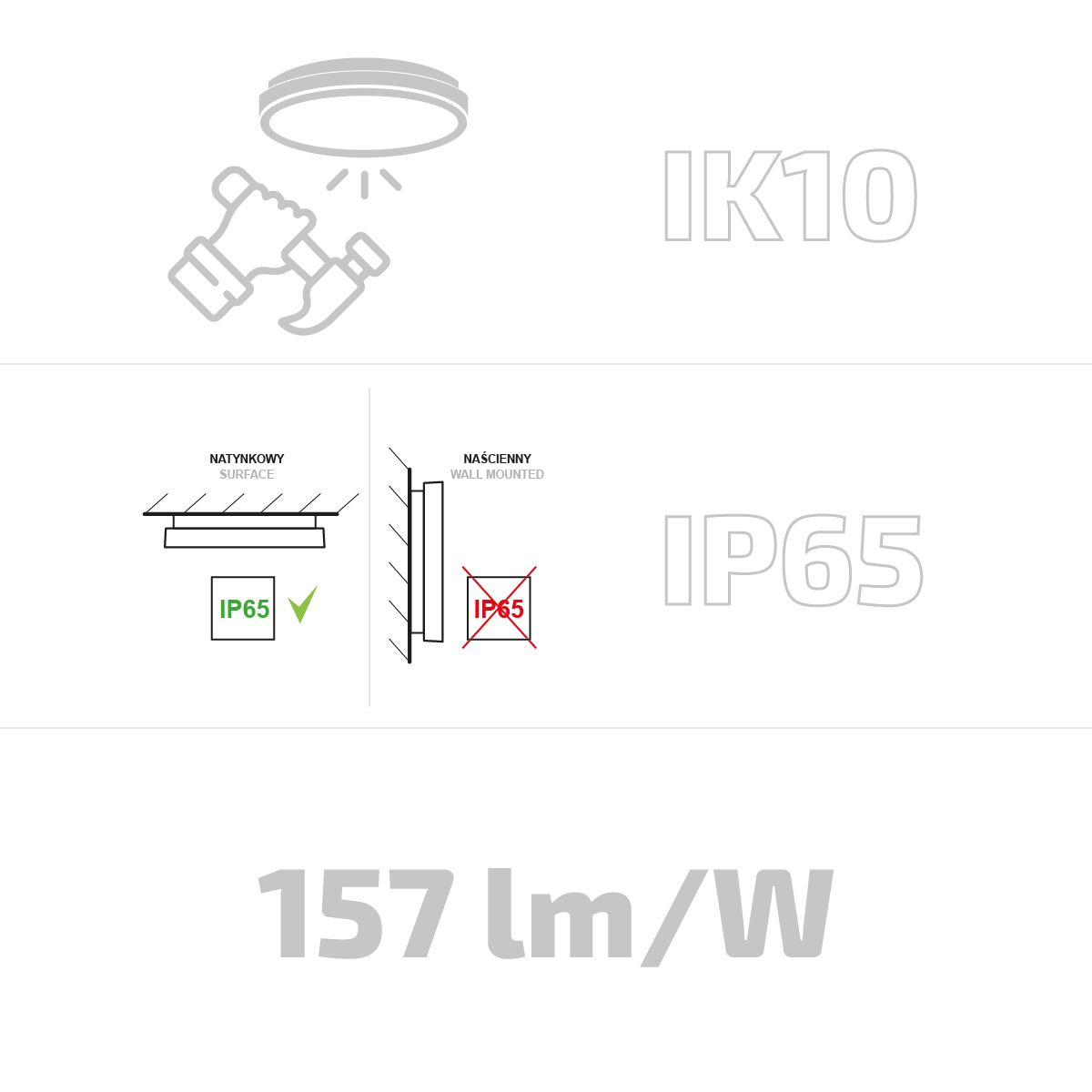

High impact resistance
High ingress protection
One of the highest lumen-per-watt ratios among plafonds

Technical data

Mechanical data

Type of installation	Universal
Housing material	Plastic

Optical data

Louver/ diffuser	OPAL
Diffuser colour	White
Diffuser material	Opal/mat plastic
UGR	19, 21, 22

Electrical data

Light source	LED
Luminaire power	11 - 23 W
Type of equipment	AC
For emergency lighting	yes
Voltage rating	220 ... 240 V
Through wiring	No
Light source included	yes
Type of driver	CF, DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	1 - 1.7 kg
Colour	Black, Grey, White
Operating temperature range	-20 ... 35
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	1580 - 3610 lm
Luminaire's luminous efficacy	139 - 157 lm/W
Light colour	White
Color rendering index	80
Light distribution	DI
Lumen maintenance	L80
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840

Certificates

Degree of protection (IP)	IP65
Impact resistance	IK10
Class of protection	I
Light source protection	yes
PZH	yes
CE	yes
ENEC	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Motion sensor	Type of family
HM001.1111.830.A000 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	ON/OFF	No	No	11W
HM001.1111.830.A001 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	ON/OFF	No	MW	11W
HM001.1111.830.A100 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	ON/OFF	EM1H ST	No	11W
HM001.1111.830.A101 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	ON/OFF	EM1H ST	MW	11W
HM001.1111.830.A200 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	ON/OFF	EM3H ST	No	11W
HM001.1111.830.A201 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	ON/OFF	EM3H ST	MW	11W
HM001.1111.830.D000 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	DALI	No	No	11W
HM001.1111.830.D001 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	DALI		MW	11W
HM001.1111.830.D100 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	DALI	EM1H ST	No	11W
HM001.1111.830.D200 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	DALI	EM3H ST	No	11W
HM001.1111.830.I001 Copy the code Open in new window	11 W	1580 lm	144 lm/W	OPAL	830	White	CF	No	MW	11W
HM001.1111.840.A000 Copy the code Open in new window	11 W	1660 lm	151 lm/W	OPAL	840	White	ON/OFF	No	No	11W
HM001.1111.840.A001 Copy the code Open in new window	11 W	1660 lm	151 lm/W	OPAL	840	White	ON/OFF	No	MW	11W
HM001.1111.840.A100 Copy the code Open in new window	11 W	1660 lm	151 lm/W	OPAL	840	White	ON/OFF	EM1H ST	No	11W
HM001.1111.840.A101 Copy the code Open in new window	11 W	1660 lm	151 lm/W	OPAL	840	White	ON/OFF	EM1H ST	MW	11W
