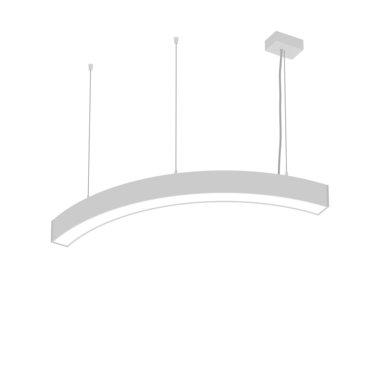

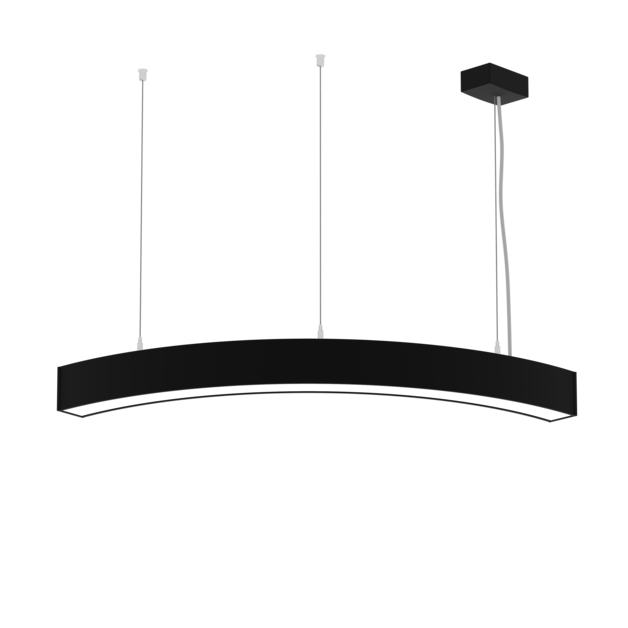

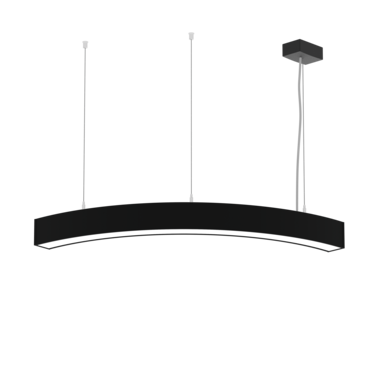

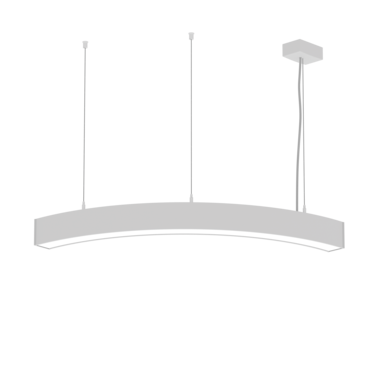

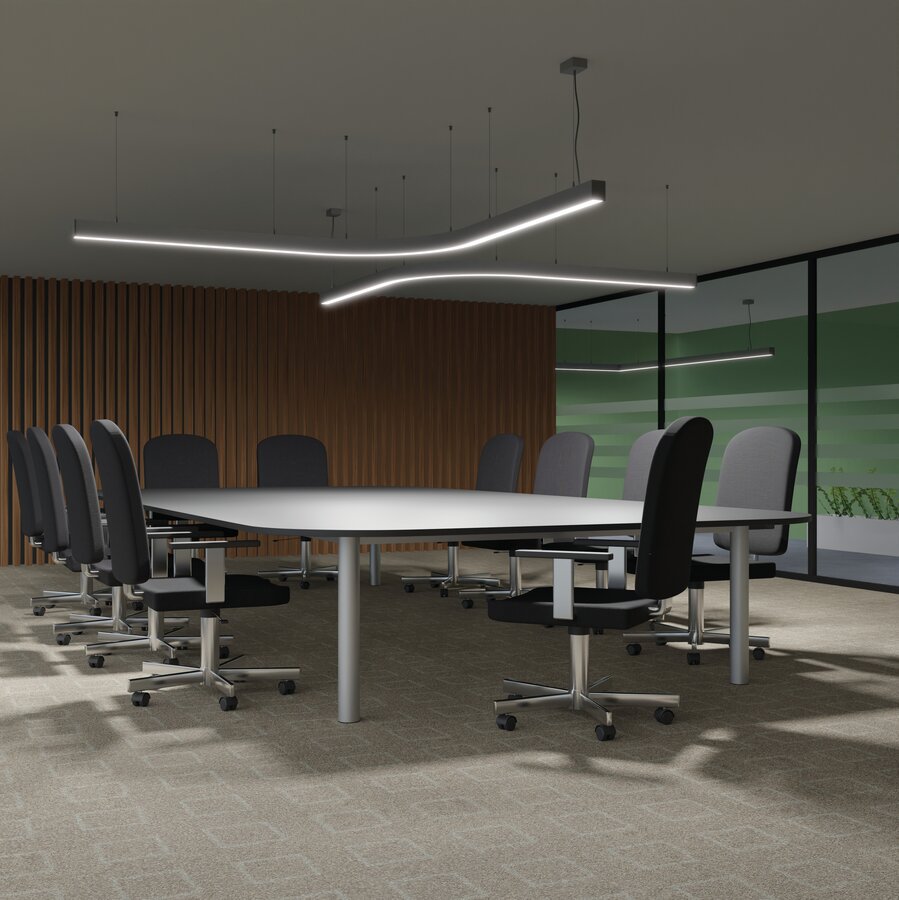

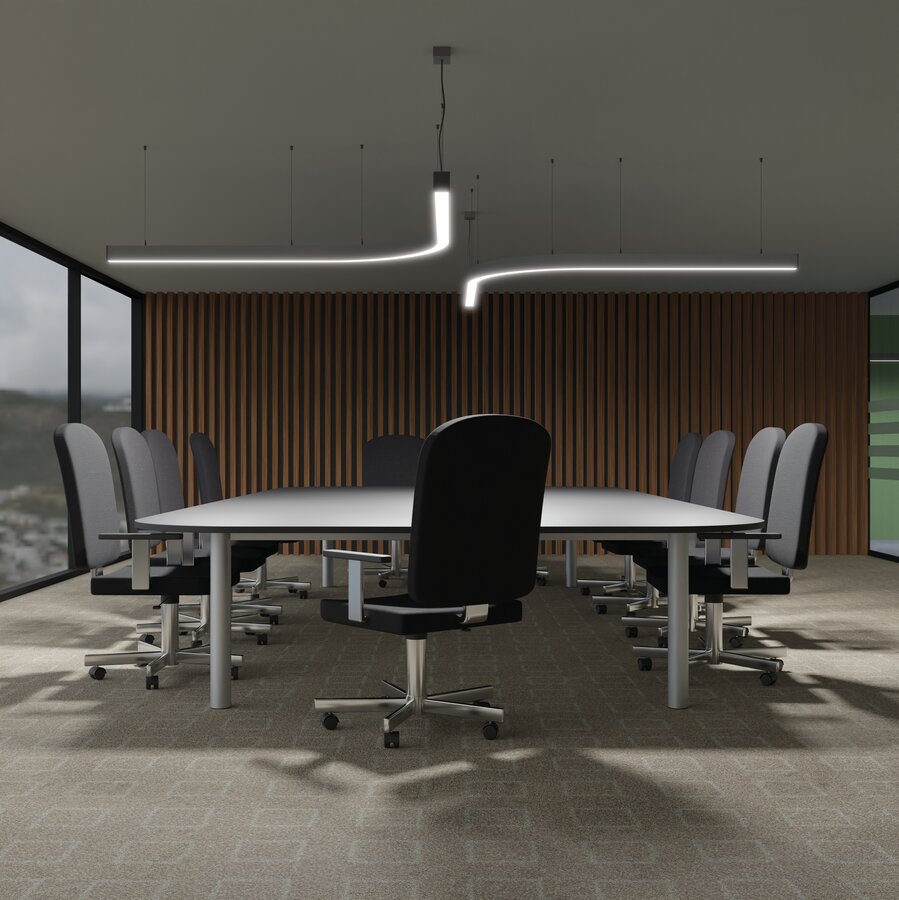

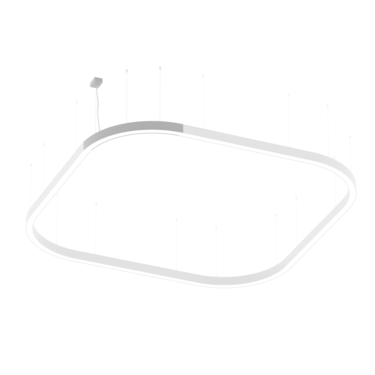

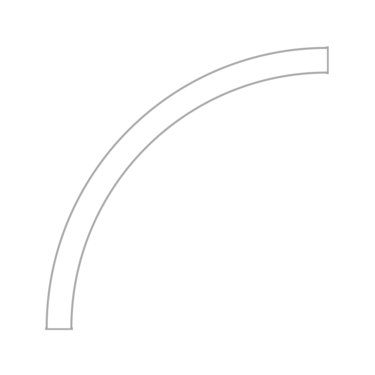

Sigma II ARC LED

Sigma II ARC LED is part of the lighting system designed for inline installation. Can be mounted as a separate luminaire

Linear

Sigma II ARC LED

Sigma II ARC LED is part of the lighting system designed for inline installation. Can be mounted as a separate luminaire

Go to the variant list (96)

LED

IP20

yes

yes

yes

Basic information:

Materials:

Electrostatically painted aluminum profile (standard color: grey), OPAL diffuser made of polycarbonate. DI version: upper masking cover in set

Accessories:

End cap made of PC with logo PXF Lighting, clean end cap made of PC, invisible linear joint, suspension (simple, electric). Joints for suspended installation are included in the set with the luminaire.

Installation:

suspended (to suspend the luminaire you will need: simple suspension – 2 pcs and electric suspension – 1 pc)

Power:

220 ... 240 V

Categorization:

Type of luminaire:

Linear

Application:

Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab

Mounting type:

Pendant, Ceiling mounted

Technical data:

Luminaire power:

11 - 20 W

Luminaire luminous flux:

1100 - 2540 lm

Length:

1200 mm

See other technical data

Description of the product's family

Technical data

Mechanical data

Type of installation	Suspended
Housing material	Aluminum
Designed for light-line	yes

Optical data

Louver/ diffuser	MPRM, OPAL
UGR	13, 16

Electrical data

Light source	LED
Luminaire power	11 - 20 W
Number of light sources	1
Type of equipment	AC
Voltage rating	220 ... 240 V
Light source included	yes
Power factor	0.96
Type of driver	DALI, ON/OFF
Emergency module	option
Motion sensor	option

Information data

Net weight	2.5 kg
Colour	Black, Grey, White
Power and luminous flux tolerance	+/-10%

Light data

Luminaire luminous flux	1100 - 2540 lm
Luminaire's luminous efficacy	100 - 127 lm/W
Light colour	White
Color rendering index	80, 90
Light distribution	DI
Light output degradation	B10
Lumen maintenance	L80
MacAdam	SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h)	84 %
Colour temperature	3000K, 4000K
CRI & colour temperature	830, 840, 930, 940

Certificates

Degree of protection (IP)	IP20
Impact resistance	IK04
Class of protection	I
Power Flicker	=< 3%
Light source protection	yes
CE	yes
HACCP+	yes
EAC	yes

Product variants

✕

Search

How does the product indexing system work?

AA

002

.

22

11

.

830

.

D

0

0

0

Family

AA ALTO LED

AB ALTO WALL

Type

001 e.g.: 545 mm

002 e.g.: 1085 mm

Colour

11 WHITE RAL 9016

12 WHITE RAL 9010

22 GREY RAL 9006

33 BLACK RAL 9005

44 ANTHRACITE RALBG 452

45 ANTHRACITE RAL 7016

99 OTHER - PERSONALIZATION

Optical system

00 EMPTY

11 OPAL /MILK DIFFUSER/

22 MPRM /MICROPRISMATIC DIFFUSER/

23 DMPRM /DIAMONT MICROPRISMATIC DIFFUSER/

24 MPOP /MICROPRISMATIC DIFFUSER WITH FLEX LAYER/

33 PAR /PARABOLIC LOUVER/

34 PAR SH /PARABOLIC LOUVER UNDER TEMPERED GLASS/

44 mPARM /PARABOLIC MINI LOUVER METALLIZED/

45 PARW /PARABOLIC LOUVER WHITE/

46 mPARB /PARABOLIC MINI LOUVER BLACK/

66 RF /REFLECTOR/

67 RM /REFLECTOR METALLIZED/

68 RW /REFLECTOR WHITE/

77 LNS /LENS/

88 SH MAT /MATTE TEMPERED GLASS/

89 SH /TEMPERED GLASS/

CRI / Colour temp.

827

830 CRI ≥ 80; CCT 3000K

835 CRI ≥ 80; CCT 3500K

840 CRI ≥ 80; CCT 4000K

850 CRI ≥ 80; CCT 5000K

857 CRI ≥ 80; CCT 5700K

865 CRI ≥ 80; CCT 6500K

8TW CRI ≥ 80; Tunable white

927 CRI ≥ 90; CCT 2700K

930 CRI ≥ 90; CCT 3000K

935 CRI ≥ 90; CCT 3500K

940 CRI ≥ 90; CCT 4000K

950 CRI ≥ 90; CCT 5000K

957 CRI ≥ 90; CCT 5700K

965 CRI ≥ 90; CCT 6500K

9TW CRI ≥ 90; Tunable white

RGB RGB

Driver

A ON/OFF /WITHOUT REGULATION/

D DALI /DIGITAL ADDRESSABLE LIGHTING INTERFACE/

H HO /DRIVER WITH PREDEFINED SETTING/

E HE /DRIVER WITH PREDEFINED SETTING/

F HO DALI /DRIVER WITH PREDEFINED SETTING/

G HE DALI /DRIVER WITH PREDEFINED SETTING/

K DSI

I CF /CORRIDOR FUNCTION - STEP DIMMING/

C CAS /CASAMBI - SMART CONTROL VIA APPLICATIONS/

X DMX

S sDIMM

V 1-10V /ADJUSTABLE/

Emergency module

0 WITHOUT EMERGENCY MODULE

1 EM1H ST /SELFTEST/

2 EM3H ST /SELFTEST/

3 EM1H BASIC

4 EM3H BASIC

5 EM1H PRO /DALI/

6 EM3H PRO /DALI/

Through wiring

0 WITHOUT THROUGH WIRING

1 TH3 /3-PHASE THROUGH WIRING/

2 TH5 /5-PHASE THROUGH WIRING/

3 TH7 /7-PHASE THROUGH WIRING/

4 WI /WIELAND/

5 WI TH /THROUGH WIRING/

Motion sensor

0 WITHOUT MOTION SENSOR

1 MW PRO /PASSIVE INFRARED - STEP DIMM/

2 PIR /INFRARED/

Index	Luminaire power	Luminaire luminous flux	Luminaire's luminous efficacy	Louver/ diffuser [Układ optyczny]	CRI & colour temperature	Colour	Type of driver	Emergency module	Through wiring	Motion sensor	Type of family
EW001.1111.830.A000 Copy the code Open in new window	20 W	2340 lm	117 lm/W	OPAL	830	White	ON/OFF	No	No	No	1200mm 90°
EW001.1111.830.A020 Copy the code Open in new window	20 W	2340 lm	117 lm/W	OPAL	830	White	ON/OFF	No	TH5	No	1200mm 90°
EW001.1111.830.D000 Copy the code Open in new window	20 W	2340 lm	117 lm/W	OPAL	830	White	DALI	No	No	No	1200mm 90°
EW001.1111.830.D020 Copy the code Open in new window	20 W	2340 lm	117 lm/W	OPAL	830	White	DALI	No	TH5	No	1200mm 90°
EW001.1111.840.A000 Copy the code Open in new window	20 W	2400 lm	120 lm/W	OPAL	840	White	ON/OFF	No	No	No	1200mm 90°
EW001.1111.840.A020 Copy the code Open in new window	20 W	2400 lm	120 lm/W	OPAL	840	White	ON/OFF	No	TH5	No	1200mm 90°
EW001.1111.840.D000 Copy the code Open in new window	20 W	2400 lm	120 lm/W	OPAL	840	White	DALI	No	No	No	1200mm 90°
EW001.1111.840.D020 Copy the code Open in new window	20 W	2400 lm	120 lm/W	OPAL	840	White	DALI	No	TH5	No	1200mm 90°
EW001.1111.930.A000 Copy the code Open in new window	20 W	1990 lm	100 lm/W	OPAL	930	White	ON/OFF	No	No	No	1200mm 90°
EW001.1111.930.A020 Copy the code Open in new window	20 W	1990 lm	100 lm/W	OPAL	930	White	ON/OFF	No	TH5	No	1200mm 90°
EW001.1111.930.D000 Copy the code Open in new window	20 W	1990 lm	100 lm/W	OPAL	930	White	DALI	No	No	No	1200mm 90°
EW001.1111.930.D020 Copy the code Open in new window	20 W	1990 lm	100 lm/W	OPAL	930	White	DALI	No	TH5	No	1200mm 90°
EW001.1111.940.A000 Copy the code Open in new window	20 W	2040 lm	102 lm/W	OPAL	940	White	ON/OFF	No	No	No	1200mm 90°
EW001.1111.940.A020 Copy the code Open in new window	20 W	2040 lm	102 lm/W	OPAL	940	White	ON/OFF	No	TH5	No	1200mm 90°
EW001.1111.940.D000 Copy the code Open in new window	20 W	2040 lm	102 lm/W	OPAL	940	White	DALI	No	No	No	1200mm 90°
