Technical data Download Accessories
Linear

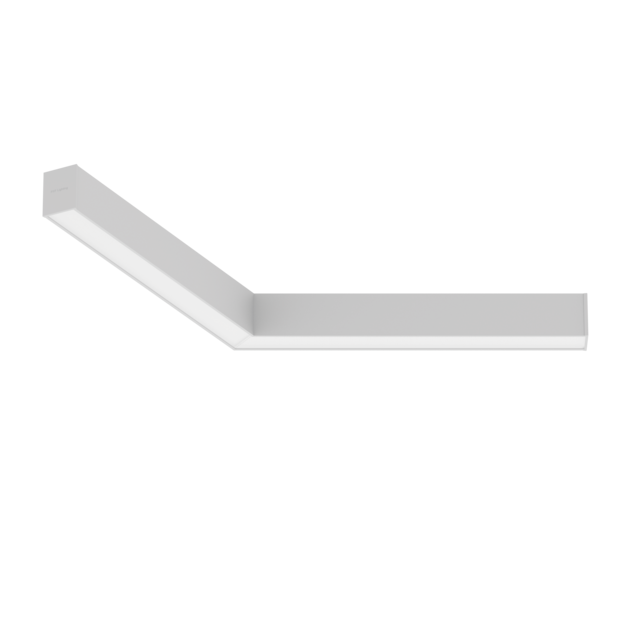

Sigma II Corner LED 120° 25W 2510lm 830 MPRM Grey DALI TH5
New LED lighting system designed for inline installation. It’s an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.
Linear
Sigma II Corner LED 120° 25W 2510lm 830 MPRM Grey DALI TH5
New LED lighting system designed for inline installation. It’s an elegant and efficient luminaire for lighting offices, conference rooms, receptions and other working spaces.
LED
DI
IP30
I
yes
yes
yes
Basic information:
Index:
AS007.2222.830.D020
EAN:
5904349160751
Accessories:
Sigma II End cap PC, Sigma II End cap, Sigma II LED Blank infill, Electric suspension kit, Sigma II joining set T, Suspension kit 1x
Power:
220 ... 240  V
Categorization:
Type of luminaire:
Linear
Application:
Office, Conference room, Corridor and staircase, Reception, Commercial premises, Lecture hall, Classroom, Computer lab
Mounting type:
Pendant
Technical data
Sigma II Corner LED 120° 25W 2510lm 830 MPRM Grey DALI TH5
PRODUCT CODE
AS007.2222.830.D020
Copy the code
PRODUCT EAN
5904349160751
Copy the EAN code
Mechanical data
Housing material Aluminum
Designed for light-line yes
Optical data
Louver/ diffuser MPRM
Diffuser colour Transparent
Diffuser material Prismatic plastic
Reflector high gloss
Electrical data
Light source LED
Luminaire power 25 W
Number of light sources 1
Type of equipment AC
Voltage rating 220 ... 240 V
Through wiring TH5
Light source included yes
Type of driver DALI
Emergency module No
Motion sensor No
Information data
Net weight 2.3 kg
Colour Grey
Operating temperature range -15 ... 40
Power and luminous flux tolerance +/-10%
Light data
Luminaire luminous flux 2510 lm
Luminaire's luminous efficacy 100 lm/W
Light colour White
Color rendering index 80
Light distribution Wide beam
Light distribution DI
Class of luminaire I
Light output degradation B10
Lumen maintenance L80
MacAdam SDCM 3
Lamp Lumen Maintenance Factor (after 60 000h) 85 %
Colour temperature 3000K
CRI & colour temperature 830
Certificates
Degree of protection (IP) IP30
Impact resistance IK04
Class of protection I
Power Flicker =< 3%
Light source protection yes
CE yes
HACCP+ yes
EAC yes
Dimensions
L W H
567 mm 567 mm 75 mm
L - Length
W - Width
H - Height / Depth
Download
Installation manual
334.25 KB
Download
Photometric file
1.54 KB
Download
Product card
1.05 MB
Download
Pobierz wszystkie pliki
Structural elements
Accessories
Sigma II End cap PC
Accessories
Sigma II End cap
Accessories
Sigma II LED Blank infill
Electric elements
Accessories
Electric suspension kit
Connecting elements
Accessories
Sigma II joining set T
Installation elements
Accessories
Suspension kit 1x
